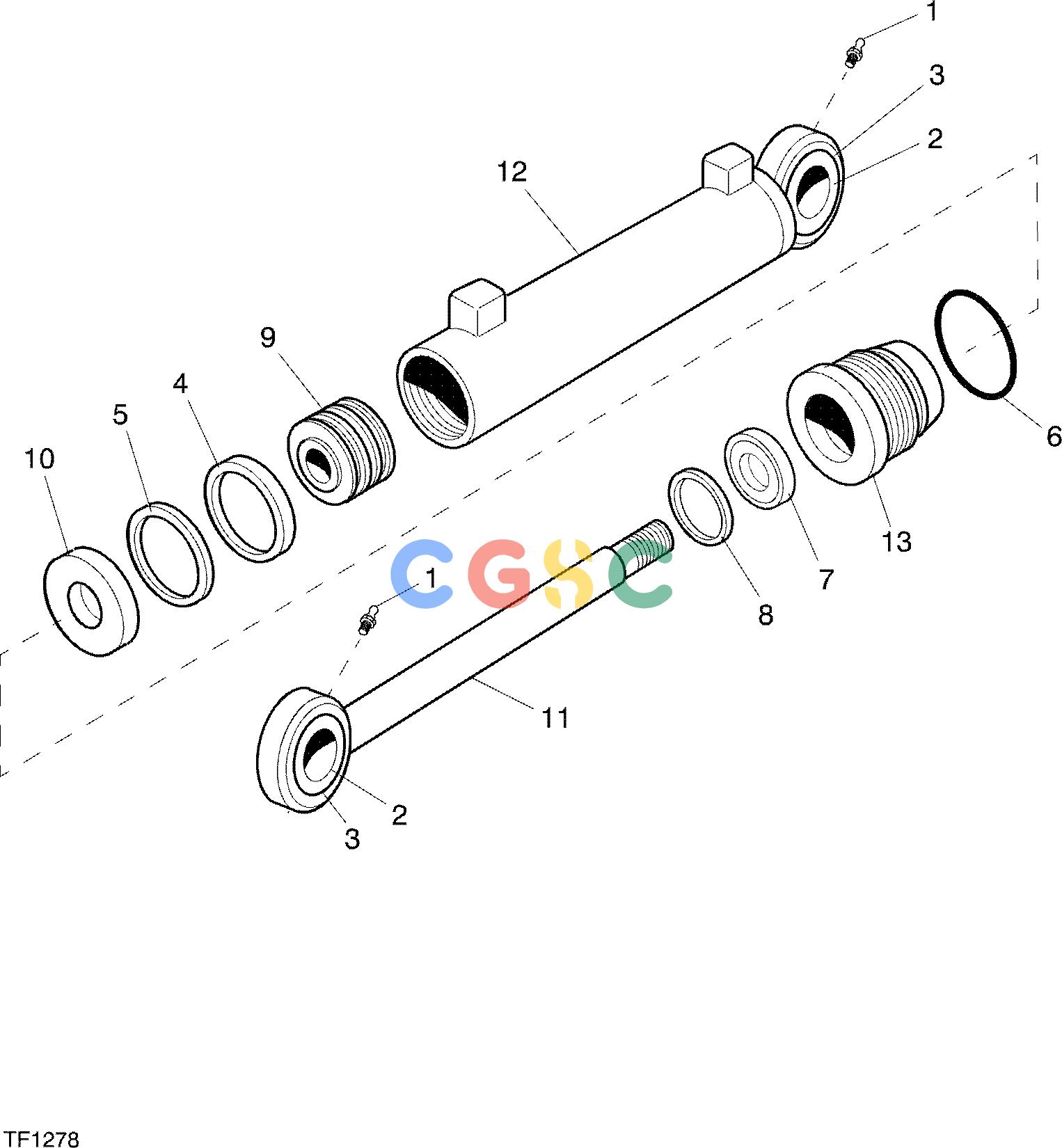

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE CYLINDER, BACK KNIFE F045006 11 87 TF1278 [TF1278]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F055836
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 2. |
F052217
|
[2] |
SPHERICAL BEARING
|
|
| 3. |
F003370
|
[2] |
CIRCLIP
|
|
| 4. |
F055843
|
[1] |
GUIDE RING
|
|
| 5. |
F055844
|
[1] |
Seal
|
|
| 6. |
F035304
|
[1] |
O-Ring
|
|
| 7. |
F055845
|
[1] |
Seal
|
|
| 8. |
F055846
|
[1] |
Scraper
|
|
| 9. |
F055839
|
[1] |
Piston
|
|
| 10. |
F055841
|
[1] |
Flange
|
|
| 11. |
F055838
|
[1] |
PISTON ROD
|
|
| 12. |
F055837
|
[1] |
CYLINDER TUBE
|
|
| 13. |
F055840
|
[1] |
Guide
|
|
| 14. |
F055842
|
[1] |
Seal Kit
|
|
