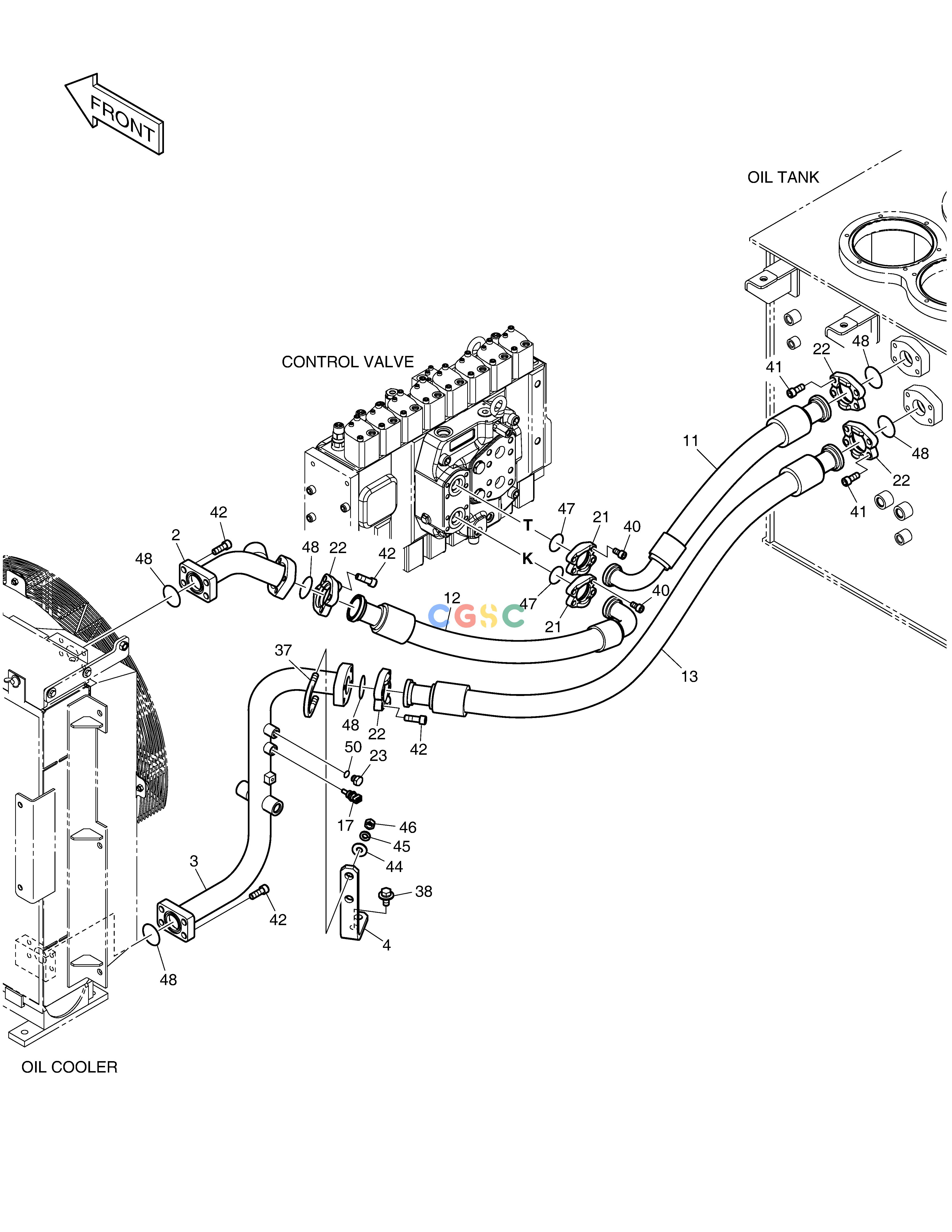

斗山零件查询OIL COOLER PIPING(2) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
469 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07960
|
[-] |
|
|
| 11. |
DS2040803
|
[1] |
|
|
| 12. |
DS20401312
|
[1] |
|
|
| 13. |
DS2038387
|
[1] |
|
|
| 17. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 2. |
420207-00280B
|
[1] |
|
|
| 21. |
4215-1003D4
|
[4] |
FLANGE
|
|
| 22. |
4215-1003D5
|
[8] |
FLANGE
|
|
| 23. |
2181-1950D1
|
[1] |
PLUG
|
|
| 3. |
420207-00281G
|
[1] |
|
|
| 37. |
120-00317
|
[1] |
BOLT
|
|
| 38. |
DS0025018
|
[2] |
BOLT
|
|
| 4. |
110406-00277A
|
[1] |
|
|
| 40. |
S2212066
|
[8] |
BOLT
|
|
| 41. |
S2215266
|
[8] |
BOLT
|
|
| 42. |
S2215366
|
[16] |
BOLT
|
|
| 44. |
2114-1058D72
|
[2] |
WASHER
|
|
| 45. |
S5102703
|
[2] |
WASHER
|
|
| 46. |
S4012733
|
[2] |
NUT
|
|
| 47. |
2180-1026D23
|
[2] |
O-RING
|
|
| 48. |
2180-1026D28
|
[6] |
O-RING
|
|
| 50. |
S8000111
|
[1] |
O-RING
|
|
