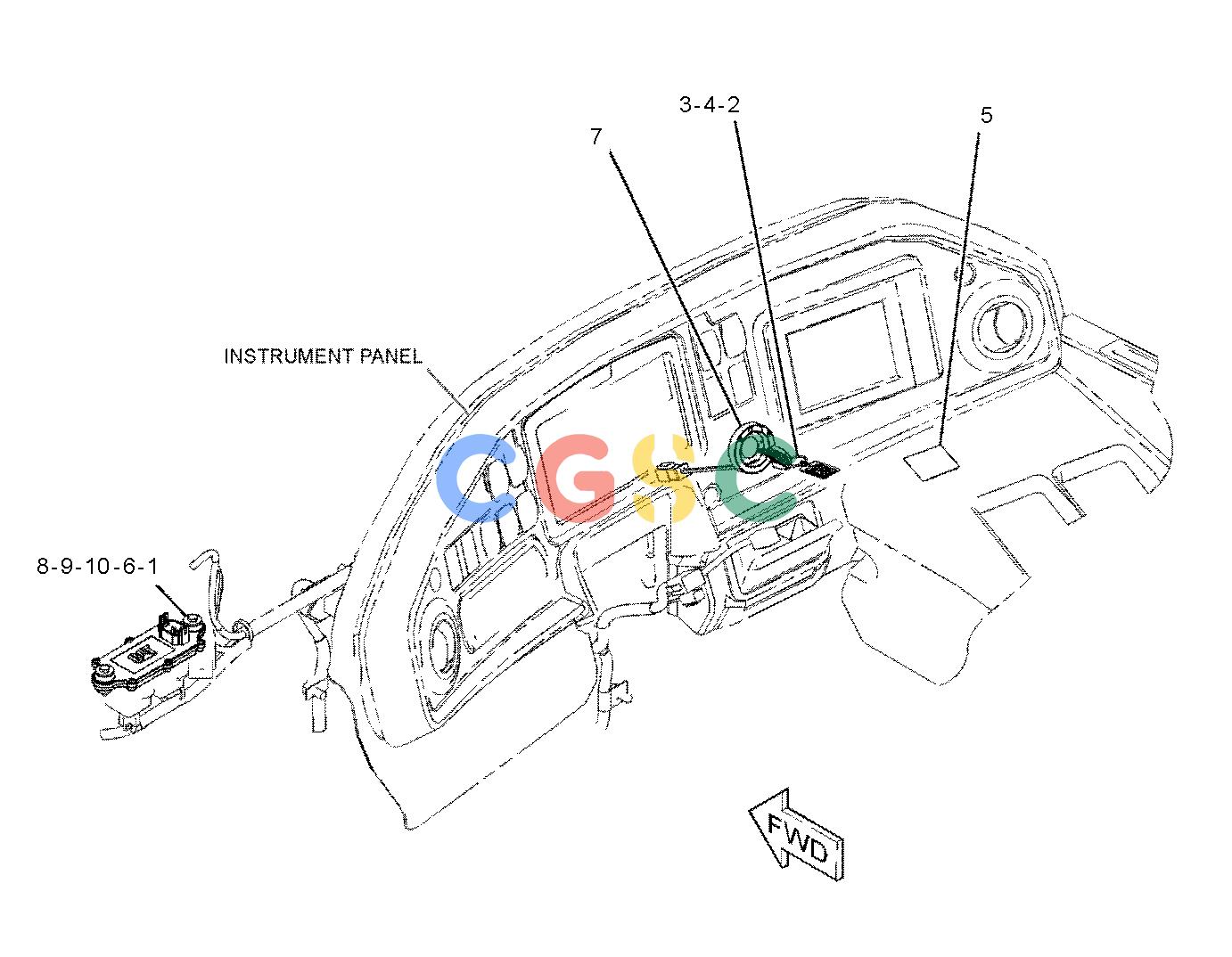

卡特零件查询（725C） 396-1141: INSTALLATION AR-COMMUNICATION
广数供应链运营团队, 14 02月, 2025，浏览：
924 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 285-1141Y | [1] | APPLICATION GP-MONITOR(VIMS) | |
| | 354-0745Y | [1] | ELECTRONICS GP-MONITOR(VIMS 3G MAIN) | |
| | Y | [1] | FILM GP(PRODUCT LINK) |
| | 373-3680Y | [1] | MOUNTING GP-RADIO | |
| | 336-3545Y | [1] | RADIO GP-COMMUNICATION(PRODUCT LINK 121SR) | |
| | 310-2393 | [1] | ANTENNA AS(450-CM) | |
| | 301-0589 | [1] | ANTENNA(FLEXIBLE) | |
| | 355-0598 | [1] | NUT-SPECIAL | |
| | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| | 9X-9896 | [8] | MOUNT(ISOLATION) | |
| | 8C-5608 | [4] | SPACER(6.5X9.5X25.4-MM THK) | |
| | 3S-2093 | [16] | STRAP-CABLE | |
| | 9X-6165 | [4] | WASHER(6.5X22X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
