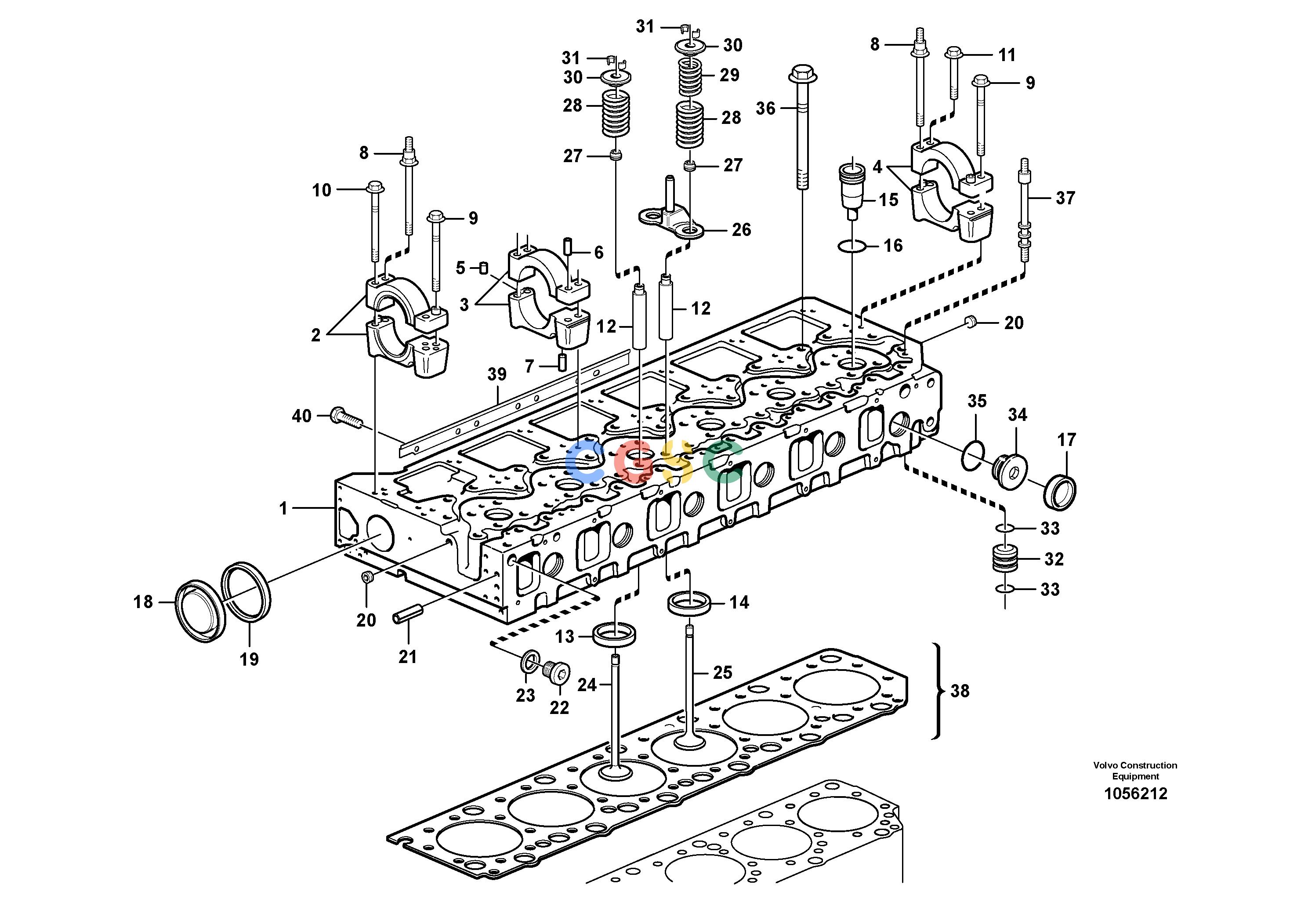

沃尔沃零件查询EC330B Cylinder headS/N INT 10713-10806 EU&NA 80001-804258280231-8280232NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE20560799
|
[1] |
Cylinder head
|
8188768, 8188756, 8188757
|
| |
VOE20560797
|
|
Cylinder head
|
8188758, 8188746, 8188747
|
| |
VOE20929885
|
|
Cylinder head
|
8188758, 8188746, 8188747
|
| |
|
[1] |
Cylinder head
|
|
| |
VOE24426420
|
|
Cylinder head
|
|
| 1. |
VOE20478371
|
[1] |
Cylinder head
|
|
| 2. |
VOE3165130
|
[1] |
Bearing housing
|
FRONT
|
| 3. |
VOE3165133
|
[5] |
Bearing housing
|
|
| 4. |
VOE3165136
|
[1] |
Bearing housing
|
REAR
|
| 5. |
VOE950542
|
[7] |
Pin
|
|
| 6. |
VOE1677189
|
[7] |
Sleeve
|
|
| 7. |
VOE950562
|
[14] |
Pin
|
|
| 8. |
VOE21344812
|
[7] |
Stud
|
|
| 9. |
VOE21344776
|
[14] |
Flange screw
|
L = 127 MM
|
| 10. |
VOE21344752
|
[1] |
Flange screw
|
L = 106 MM
|
| 11. |
VOE1677283
|
[6] |
Screw
|
L = 70 MM
|
| 12. |
VOE20817648
|
[24] |
Valve guide
|
|
| 12. |
VOE20905400
|
|
Valve guide
|
|
| 13. |
VOE20459329
|
[12] |
Valve seat
|
STD, INLET
|
| 14. |
VOE20412798
|
[12] |
Valve seat
|
STD, EXHAUST
|
| 14. |
VOE3169366
|
|
Valve
|
STD, EXHAUST
|
| 15. |
VOE3183368
|
[6] |
Sleeve
|
|
| 16. |
VOE20536487
|
[6] |
O-ring
|
|
| 17. |
VOE8131707
|
[11] |
Cap plug
|
|
| 18. |
VOE8170553
|
[1] |
Cap plug
|
|
| 19. |
VOE1544710
|
[1] |
Sealing ring
|
|
| 20. |
VOE13968062
|
[2] |
Plug
|
|
| 20. |
VOE990830
|
|
Plug
|
|
| 21. |
VOE422426
|
[1] |
Pin
|
|
| 22. |
VOE20441335
|
[1] |
Plug
|
|
| 23. |
VOE947281
|
[1] |
Gasket
|
|
| 24. |
VOE20459326
|
[12] |
Inlet valve
|
|
| 25. |
VOE20441486
|
[12] |
Exhaust Valve
|
|
| 25. |
VOE20441945
|
|
Exhaust valve
|
|
| 26. |
VOE1677963
|
[6] |
Guide pin
|
|
| 27. |
VOE21501189
|
[24] |
Valve stem seal
|
ENG - 660580
|
| 27. |
VOE21501189
|
[24] |
Valve stem seal
|
ENG 660581 -
|
| 28. |
VOE22691232
|
[24] |
Valve spring
|
|
| 29. |
5OE3183211
|
[12] |
Valve Spring
|
|
| 30. |
VOE1546487
|
[24] |
Valve spring washer
|
|
| 31. |
VOE1677875
|
[48] |
Valve sleeve
|
|
| 32. |
VOE20463179
|
[1] |
Adapter
|
|
| 33. |
VOE13949721
|
[2] |
O-ring
|
|
| 34. |
VOE3165025
|
[1] |
Plug
|
|
| 34. |
VOE3155171
|
[1] |
Plug
|
|
| 35. |
VOE949659
|
[1] |
O-ring
|
|
| 36. |
VOE21345131
|
[38] |
Flange screw
|
ENG - 649456
|
| 36. |
VOE21345131
|
[38] |
Flange screw
|
ENG 649457 -
|
| 37. |
VOE21344784
|
[9] |
Stud
|
ENG - 651827
|
| 37. |
VOE21344784
|
[9] |
Stud
|
ENG 651828 -
|
| 38. |
VOE3099100
|
[1] |
Gasket kit
|
|
| 38. |
VOE20412953
|
[1] |
Gasket
|
|
| 39. |
VOE20566300
|
[1] |
Heat shield
|
|
| 40. |
VOE946441
|
[2] |
Flange screw
|
|
| |
VOE990831
|
[1] |
Plug
|
|
