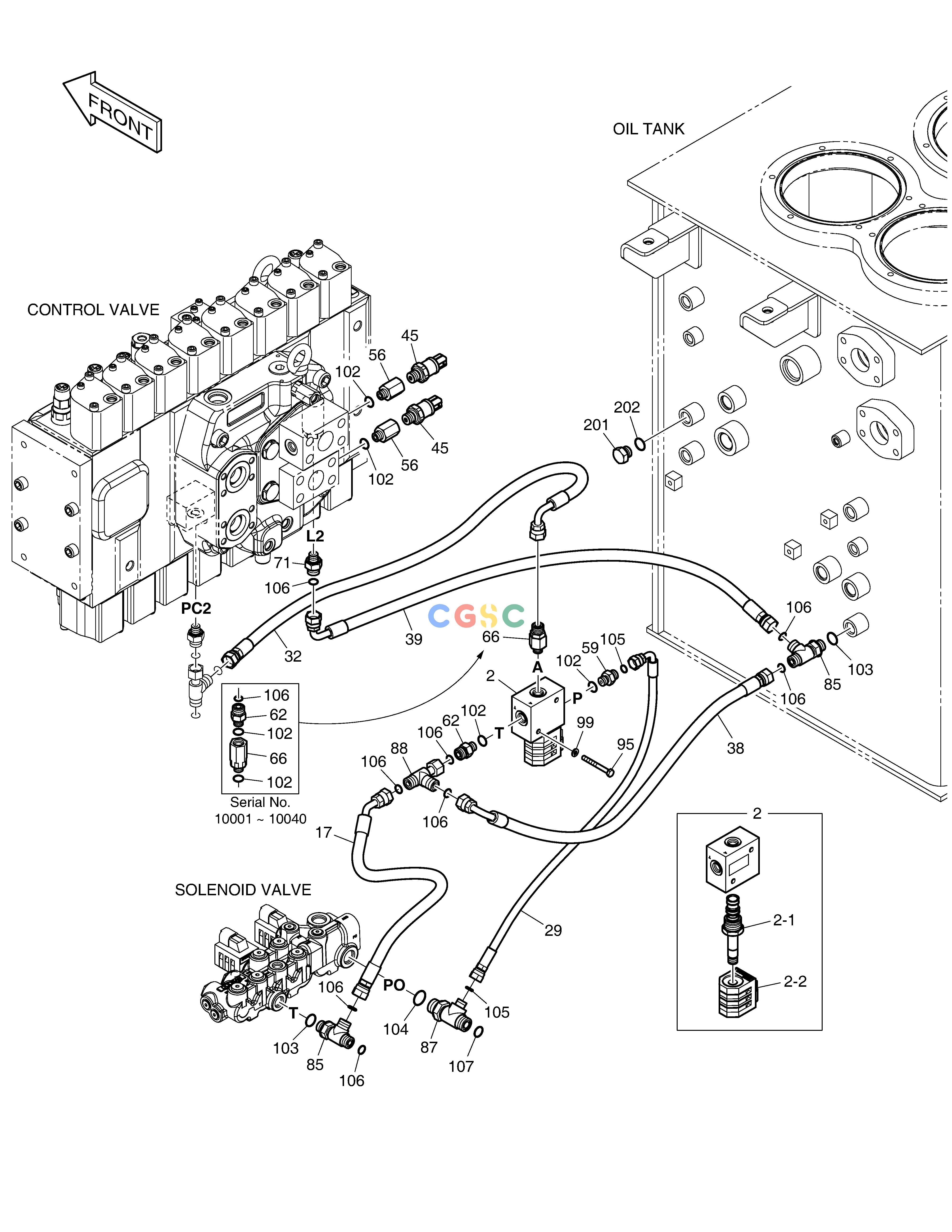

斗山零件查询PILOT PIPING(2) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07929
|
[-] |
|
|
| 102. |
S8000111
|
[6] |
O-RING
|
|
| 102. |
S8000111
|
[4] |
O-RING
|
|
| 103. |
S8000141
|
[2] |
O-RING
|
|
| 104. |
S8000181
|
[1] |
O-RING
|
|
| 105. |
S8030041
|
[2] |
O-RING
|
|
| 106. |
S8030061
|
[8] |
O-RING
|
|
| 106. |
S8030061
|
[7] |
O-RING
|
|
| 107. |
S8030081
|
[1] |
O-RING
|
|
| 17. |
DS2120173
|
[1] |
|
|
| 2. |
410135-00239
|
[1] |
|
|
| 2-1. |
410207-00145
|
[1] |
SPOOL,SOLENOID
|
|
| 2-2. |
300715-00038
|
[1] |
COIL 24V
|
|
| 201. |
2181-1950D2
|
[1] |
PLUG
|
|
| 202. |
S8000141
|
[1] |
O-RING
|
|
| 29. |
DS2121128
|
[1] |
|
|
| 32. |
DS2121198
|
[1] |
|
|
| 38. |
DS2143033
|
[1] |
|
|
| 39. |
DS2143034
|
[1] |
|
|
| 45. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 56. |
DS2242030
|
[2] |
|
|
| 59. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 62. |
2181-4133D40
|
[2] |
ADAPTER
|
DS2232016
|
| 62. |
DS2232016
|
[1] |
ADAPTER
|
|
| 66. |
430201-00448
|
[1] |
|
|
| 66. |
430201-00448B
|
[1] |
|
|
| 71. |
K1010455
|
[1] |
ADAPTER
|
|
| 85. |
181-00121D2
|
[2] |
TEE
|
|
| 87. |
181-00121D6
|
[1] |
|
DS2412006
|
| 87. |
DS2412006
|
[1] |
TEE
|
|
| 88. |
DS2362011
|
[1] |
|
|
| 95. |
S0553766
|
[2] |
BOLT
|
|
| 99. |
S5102303
|
[2] |
. WASHER
|
|
