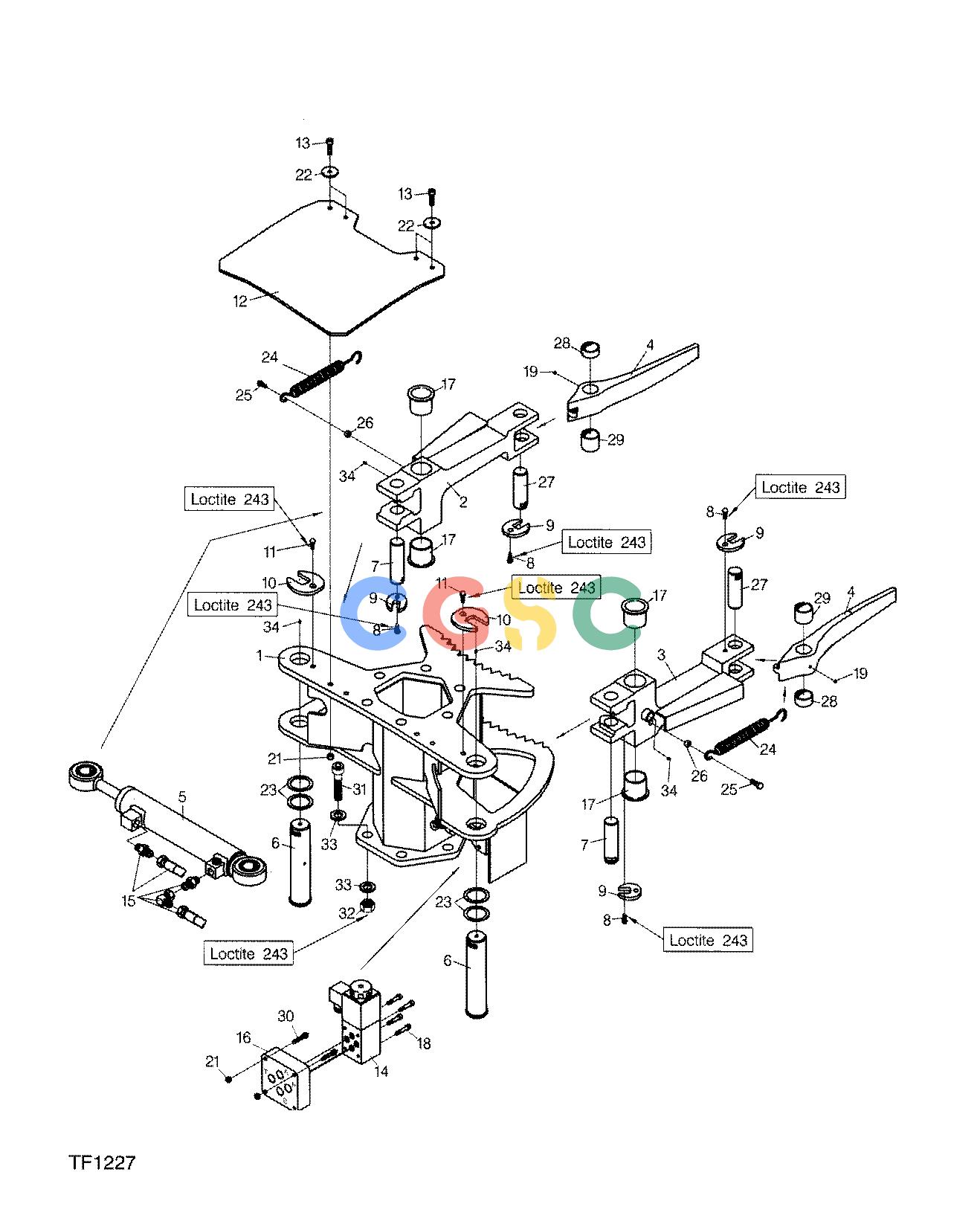

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE MULTI-HANDLING UNIT, FRAME F045006 11 82 TF1227 [TF1227]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F055066
|
[1] |
Frame
|
|
| 2. |
F055067
|
[1] |
Arm
|
|
| 3. |
F055064
|
[1] |
Arm
|
|
| 4. |
F055065
|
[2] |
TIP
|
|
| 5. |
F047835
|
[1] |
Hydraulic Cylinder
|
|
| 6. |
F047655
|
[2] |
PIVOT PIN
|
|
| 7. |
F047651
|
[2] |
PIVOT PIN
|
|
| 8. |
F003523
|
[2] |
Screw
|
|
| 9. |
F047647
|
[2] |
Plate
|
|
| 10. |
F047648
|
[2] |
Plate
|
|
| 11. |
F003531
|
[1] |
Screw
|
|
| 12. |
F055062
|
[1] |
Flap
|
|
| 13. |
F003404
|
[4] |
Screw
|
|
| 14. |
F021683
|
[1] |
Solenoid Valve
|
|
| 15. |
F055063
|
[1] |
HOSES
|
|
| 16. |
F055072
|
[1] |
BOTTOM PLATE
|
|
| 17. |
F043119
|
[4] |
BEARING BUSHING
|
|
| 18. |
F008644
|
[4] |
Screw
|
|
| 19. |
F003466
|
[2] |
STOP SCREW
|
|
| 21. |
F003586
|
[2] |
Lock Nut
|
|
| 22. |
F055073
|
[2] |
Washer
|
|
| 23. |
F055058
|
[4] |
Shim
|
|
| 24. |
F055059
|
[2] |
Spring
|
|
| 25. |
F003538
|
[2] |
Screw
|
|
| 26. |
F003588
|
[2] |
Lock Nut
|
|
| 27. |
F047673
|
[2] |
PIVOT PIN
|
|
| 28. |
F052201
|
[2] |
SLIDE BEARING
|
|
| 29. |
F015796
|
[2] |
BEARING BUSHING
|
|
| 30. |
F016303
|
[2] |
Screw
|
|
| 31. |
F010666
|
[6] |
Screw
|
|
| 32. |
F003591
|
[6] |
Lock Nut
|
|
| 33. |
F047667
|
[12] |
Washer
|
|
| 34. |
F003727
|
[4] |
GREASE NIPPLE
|
|
| |
F033710
|
[1] |
LOCKING FLUID
|
|
