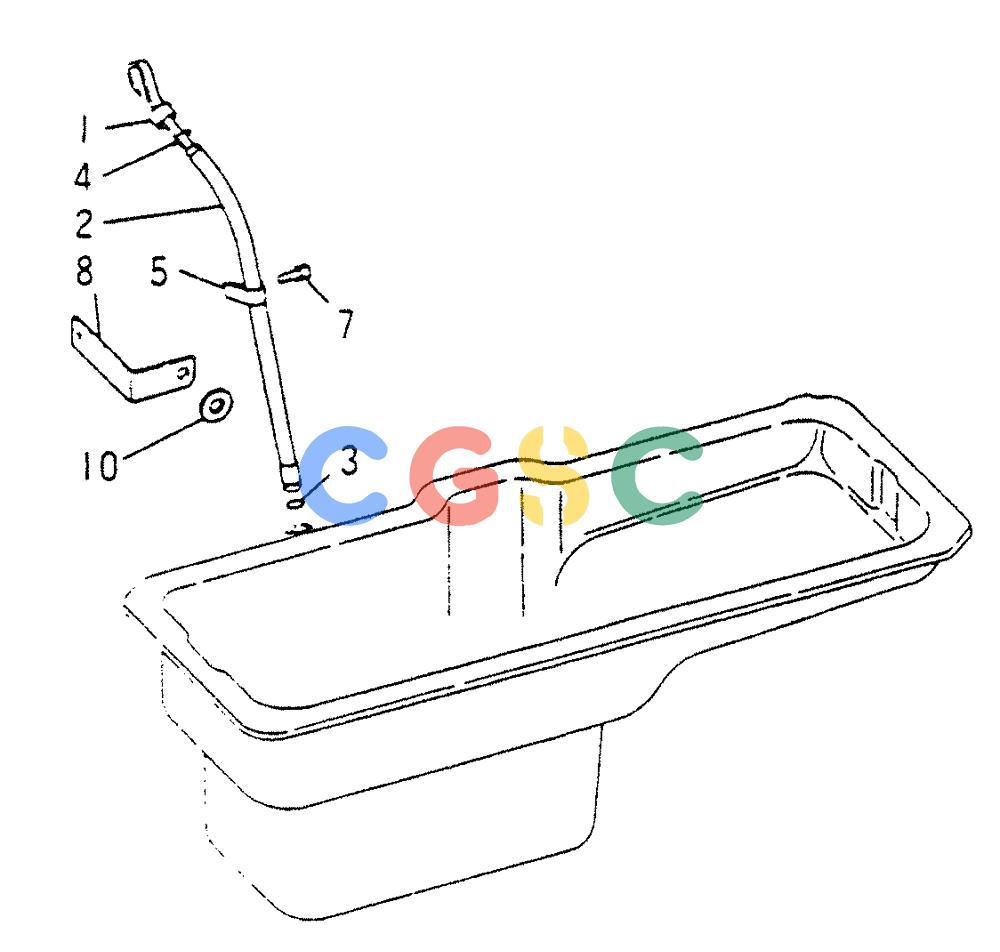

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-025) - OIL FILLER AND OIL LEVEL GAUGE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAMH093003 | [1] | DIP STICK GAUGE, OIL LEVEL L=550 | DIP STICK GAUGE, OIL LEVEL L=550 |
| 2. | VA3174211700 | [1] | GUIDE, OIL LEVEL GAUGE | |
| 3. | VAMF520007 | [1] | O-RING | KOBO-RING 11 |
| 4. | VAMF520005 | [1] | O-RING | KOBO-RING 10 Superseded by part number: 132399A1 |
| 5. | VAMH021015 | [1] | CLAMP | KOBCLAMP Superseded by part number: 132398A1 |
| 7. | VAMF240022 | [1] | BOLT | KOBBOLT, W/WSR 6X10 |
| 8. | VAMH023406 | [1] | STAY, LEVEL GAUGE GUIDE | |
| 9. | VAMF140023 | [1] | BOLT | SMBOLT, FLANGE 8X16 |
| 10. | VAMF450006 | [1] | NUT | KOBWASHER, PLAIN 10 Superseded by part number: 133247A1 |
