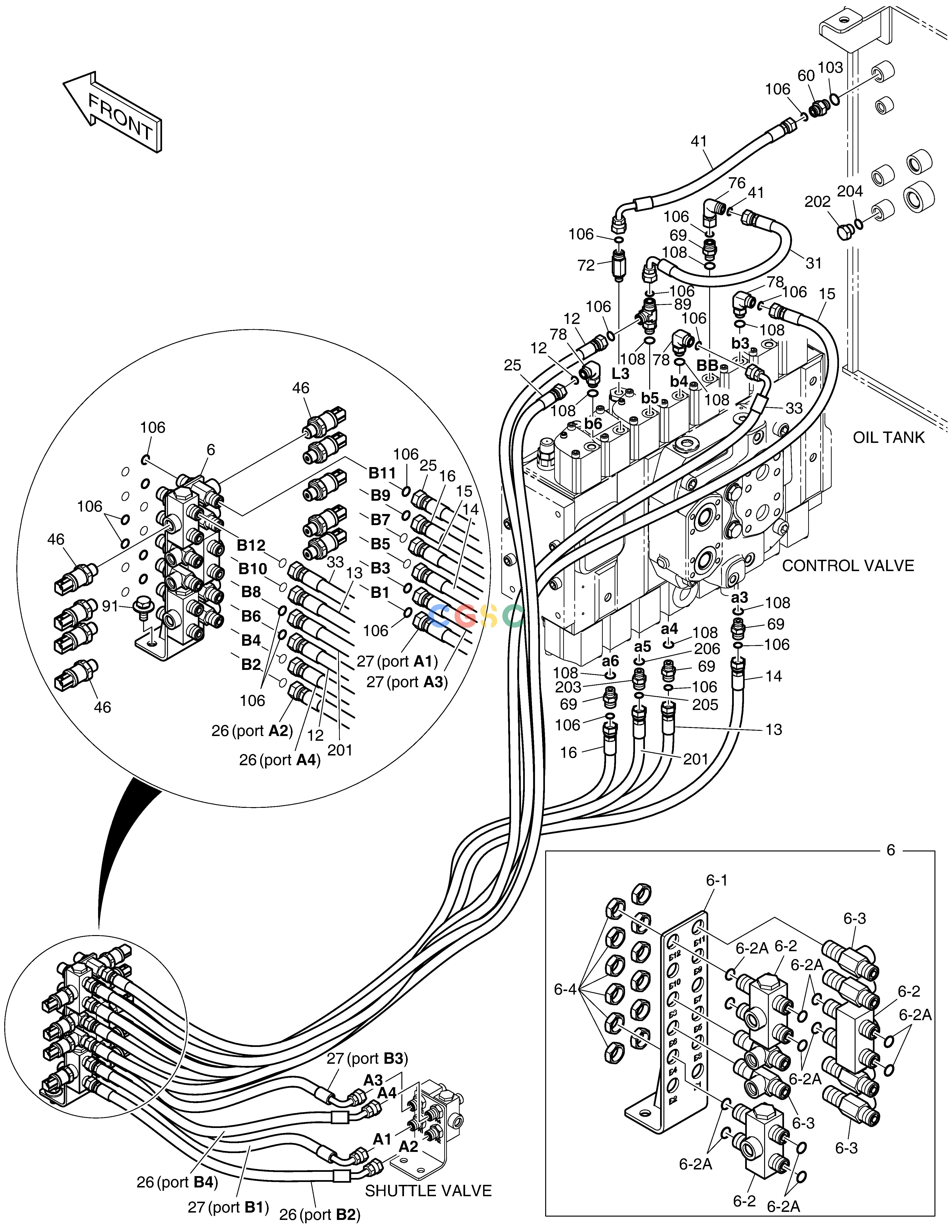

斗山零件查询PILOT PIPING(4) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
416 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07929
|
[-] |
|
|
| 103. |
S8000141
|
[1] |
O-RING
|
|
| 106. |
S8030061
|
[24] |
O-RING
|
|
| 108. |
S8040061
|
[8] |
O-RING
|
|
| 12. |
DS2119039
|
[1] |
|
|
| 13. |
DS2119050
|
[1] |
|
|
| 14. |
DS2119051
|
[1] |
|
|
| 15. |
DS2119156
|
[1] |
|
|
| 16. |
DS2119158
|
[1] |
|
|
| 201. |
DS2119049
|
[1] |
|
|
| 202. |
2181-1950D2
|
[1] |
PLUG
|
|
| 203. |
DS2232066
|
[1] |
ADAPTER
|
|
| 204. |
S8000141
|
[1] |
O-RING
|
|
| 205. |
S8030061
|
[1] |
O-RING
|
|
| 206. |
S8040061
|
[1] |
O-RING
|
|
| 25. |
DS2119317
|
[1] |
|
|
| 26. |
DS2120106
|
[2] |
|
|
| 27. |
DS2121109
|
[2] |
|
|
| 31. |
DS2121159
|
[1] |
|
|
| 33. |
DS2121240
|
[1] |
|
|
| 41. |
DS2143039
|
[1] |
|
|
| 46. |
K1057340
|
[9] |
SENSOR,PRESSURE
|
|
| 6. |
430216-00310A
|
[1] |
|
|
| 6-1. |
250122-00427A
|
[1] |
|
|
| 6-2. |
410134-00038
|
[3] |
|
|
| 6-2A. |
S8030061
|
[4] |
O-RING
|
|
| 6-3. |
430225-00205
|
[6] |
|
|
| 6-4. |
DS0301032
|
[12] |
NUT
|
|
| 60. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 69. |
DS2232066
|
[4] |
ADAPTER
|
|
| 72. |
K1044052
|
[1] |
ADAPTER
|
|
| 76. |
DS2291007
|
[1] |
ELBOW
|
|
| 78. |
DS2304052
|
[3] |
ELBOW
|
|
| 89. |
DS2376007
|
[1] |
|
|
| 91. |
DS0025017
|
[2] |
BOLT
|
|
