纽荷兰零件查询(D125C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (55.302.AG[01]) - BATTERY - TRAY & CABLES New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
835 次

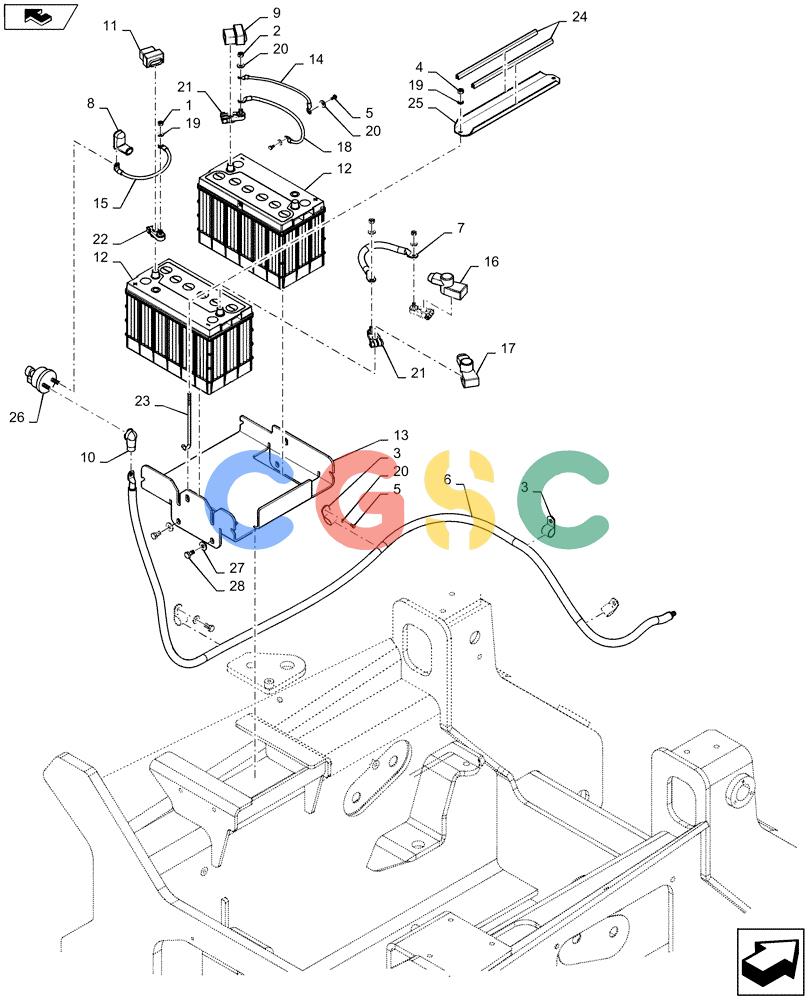

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 425-105 | [2] | NUT,5/16"-18, G5 | CAS Superseded by part number: 72187221, 9635082 |
| 2. | 425-106 | [2] | NUT,3/8"-16, Cl 5 | CAS Superseded by part number: 9628503 |
| 3. | 515-25238 | [4] | CLAMP,15/16", Insul, 1/2" Bolt | CAS Superseded by part number: 86625037 |
| 4. | 832-10408 | [2] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 5. | 9861444 | [4] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | BHB Superseded by part number: 11106031 |
| 6. | 47372611 | [1] | ELECTRIC CABLE | BURPOS Switch to Starter |
| 7. | 47420690 | [1] | NEG BATTERY CABLE | BURDual Jumper Superseded by part number: 47693286 |
| 8. | 47464114 | [1] | BOOT | BUR90° |
| 9. | 47515696 | [1] | COVER | BURBlack |
| 10. | 47524103 | [1] | CAP | BURTerminal Insulator |
| 11. | 47524133 | [1] | COVER | BURRed |
| 12. | BMF31TW | [2] | WET BATTERY | MKTUS |
| 12. | CBMF31TW | [2] | WET BATTERY | MKTCanada |
| 13. | 84390076 | [1] | BATTERY TRAY | BUR |
| 14. | 84415464 | [1] | NEG BATTERY CABLE | BURTo Ground |
| 15. | 84559803 | [1] | POS BATTERY CABLE | BURBattery to Switch |
| 16. | 87480920 | [1] | PROTECTIVE COVER | BURRed |
| 17. | 87481024 | [1] | PROTECTIVE COVER | BURBlack |
| 18. | 87489782 | [1] | NEG BATTERY CABLE | BUR |
| 19. | 87655042 | [4] | SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk | BUR |
| 20. | 87655046 | [6] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BUR |
| 21. | 87735577 | [2] | TERMINAL CONNECTOR | BURPositive 3/8 - 16 Stud |
| 22. | 87735578 | [2] | TERMINAL CONNECTOR | BURNegative 5/16 - 18 Stud |
| 23. | 416297A1 | [2] | ROD | CASBattery Hold Down 5/16 - 18 UNC |
| 24. | D40442 | [2] | Trim | MOLDING |
| 25. | R46490 | [1] | BRACKET | CASBattery Hold Down |
| 26. | R52278 | [1] | SWITCH | CASMaster Disconnect Superseded by part number: 87409316 |
| 27. | 87713132 | [4] | SPECIAL WASHER | BURM10, 10.65mm ID x 23.0 mm OD x 2.20 HTS Boron |
| 28. | 120068 | [4] | BOLT,Hex, M10 x 40mm, Cl 8.8 | NH |
