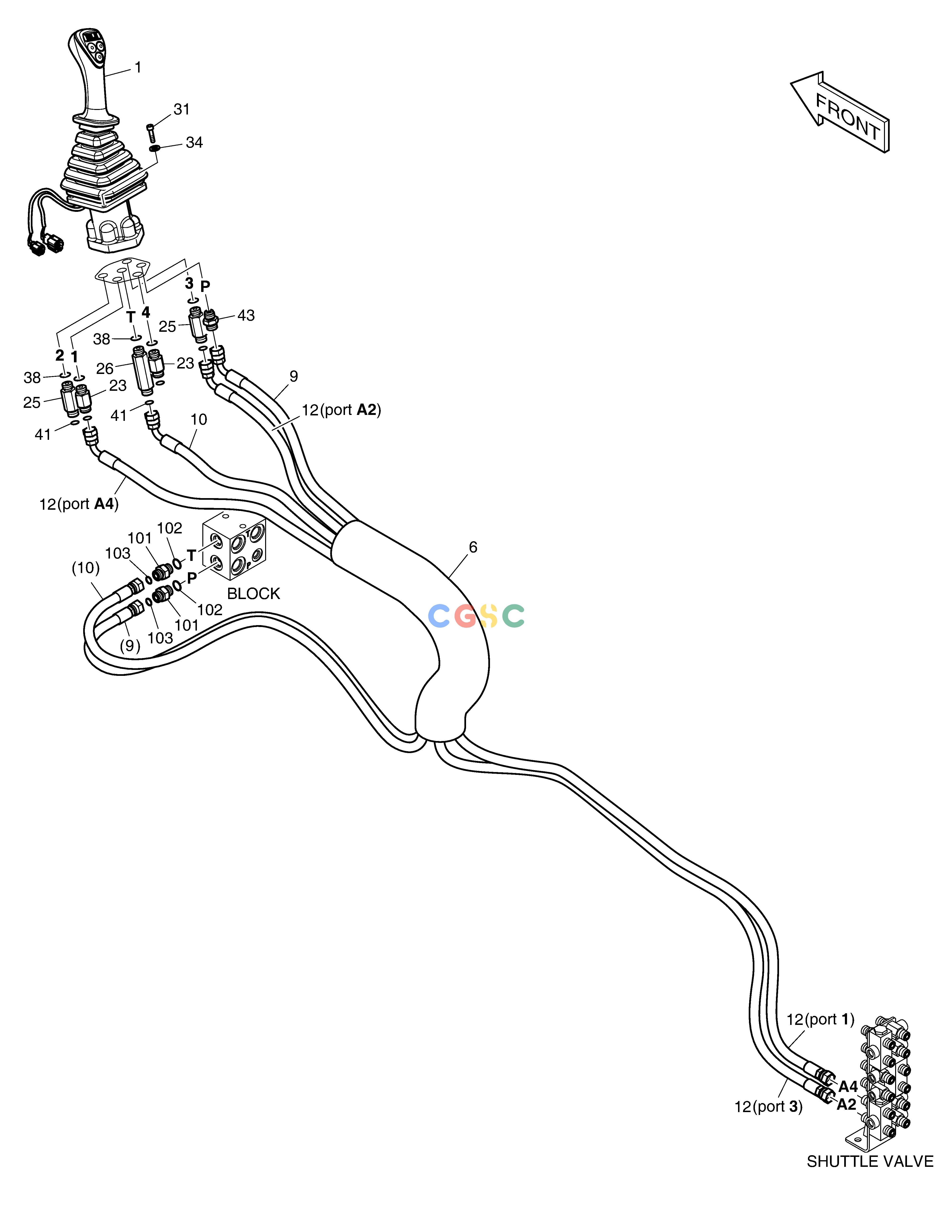

斗山零件查询PILOT PIPING(6) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
591 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07990B
|
[-] |
|
|
| -. |
420212-07990E
|
[-] |
|
|
| 1. |
410113-00208A
|
[1] |
|
|
| 10. |
DS2113054
|
[1] |
|
|
| 101. |
2181-4133D2
|
[2] |
ADAPTER
|
|
| 102. |
S8000141
|
[2] |
O-RING
|
|
| 103. |
S8030061
|
[2] |
O-RING
|
|
| 12. |
DS2113072
|
[2] |
|
|
| 23. |
2181-4133D24
|
[2] |
ADAPTER
|
|
| 25. |
DS2232085
|
[2] |
ADAPTER
|
|
| 26. |
DS2232169
|
[1] |
|
|
| 31. |
S2205066
|
[4] |
BOLT
|
|
| 34. |
S5010313
|
[4] |
WASHER
|
|
| 38. |
S8000141
|
[5] |
O-RING
|
|
| 41. |
S8030061
|
[5] |
O-RING
|
|
| 43. |
300202-00029
|
[1] |
|
|
| 6. |
K1003945
|
[1] |
PROTECTOR
|
|
| 9. |
DS2113043
|
[1] |
|
|
