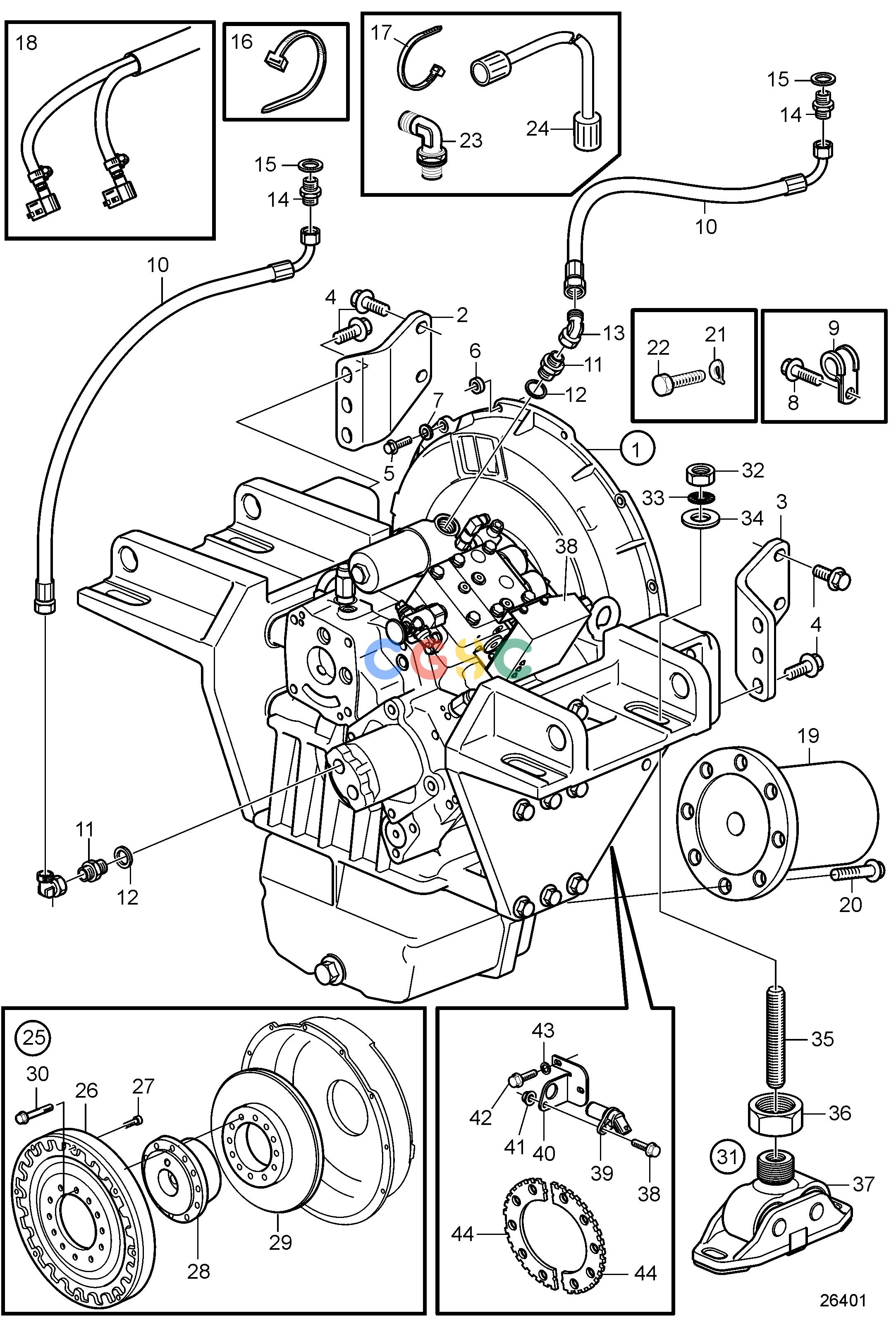

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHTransmissionsReversing Gear MGX-5114IVEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
968435
|
[10] |
Flange screw
|
|
| 5. |
965185
|
[10] |
Flange screw
|
|
| 6. |
860699
|
[2] |
Spacer sleeve
|
|
| 7. |
941908
|
[10] |
Spring washer
|
|
| 8. |
947107
|
[3] |
Flange screw
|
|
| 9. |
945081
|
[3] |
Clamp
|
|
| 10. |
|
|
|
|
| 11. |
994328
|
[2] |
Nipple
|
|
| 12. |
947629
|
[2] |
Gasket
|
|
| 13. |
946369
|
[2] |
Elbow nipple
|
|
| 14. |
943986
|
[2] |
Nipple
|
|
| 15. |
976932
|
[2] |
Gasket
|
|
| 16. |
948211
|
[1] |
Cable tie
|
|
| 17. |
1075407
|
[1] |
Cable tie
|
|
| 18. |
21159075
|
[1] |
Wiring harness
|
|
| 19. |
844765
|
[1] |
Clutch flange
|
|
| 20. |
955764
|
[8] |
Hexagon screw
|
|
| 21. |
940280
|
[8] |
Spring washer
|
|
| 22. |
965227
|
[8] |
Flange screw
|
|
| 23. |
11090362
|
[1] |
Elbow nipple
|
|
| 24. |
3837463
|
[1] |
Hose
|
|
| 25. |
21609861
|
[1] |
Flexible coupling
|
|
| 26. |
21575444
|
[1] |
Flexible coupling
|
|
| 27. |
981744
|
[12] |
Hex. socket screw
|
|
| 28. |
21575446
|
[1] |
Hub
|
|
| 29. |
21588209
|
[2] |
Adapter
|
|
| 30. |
974008
|
[12] |
Flange screw
|
|
| 31. |
3843493
|
[4] |
Rubber cushion kit
|
|
| 32. |
955786
|
[1] |
Hexagon nut
|
|
| 33. |
990697
|
[1] |
Lock washer
|
|
| 34. |
991994
|
[1] |
Washer
|
|
| 35. |
3817323
|
[1] |
Adjusting screw
|
|
| 36. |
3840980
|
[1] |
Nut
|
|
| 37. |
|
|
|
|
| 38. |
984725
|
[1] |
Flange screw
|
|
| 39. |
21426987
|
[1] |
Speed monitor
|
|
| 40. |
3840435
|
[1] |
Bracket
|
|
| 41. |
990949
|
[1] |
Flange lock nut
|
|
| 42. |
994442
|
[1] |
Flange screw
|
|
| 43. |
941906
|
[1] |
Spring washer
|
|
| 44. |
3819856
|
[2] |
Sprocket wheel
|
|
