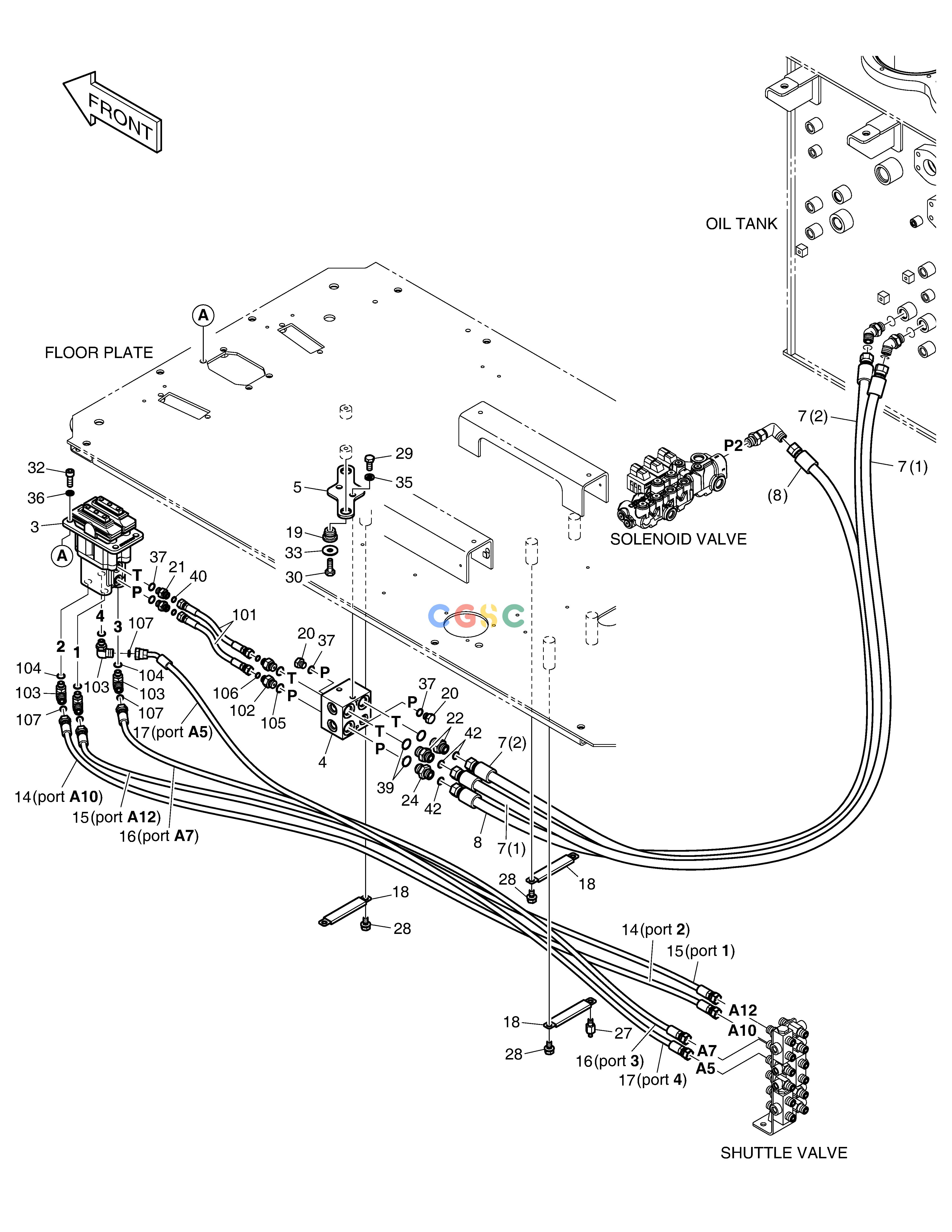

斗山零件查询PILOT PIPING(8) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07990B
|
[-] |
|
|
| -. |
420212-07990E
|
[-] |
|
|
| 101. |
DS2119001
|
[2] |
|
|
| 102. |
2181-4133D41
|
[2] |
ADAPTER
|
|
| 103. |
2181-2815D5
|
[4] |
ELBOW
|
|
| 104. |
S8000111
|
[4] |
O-RING
|
|
| 105. |
S8000141
|
[2] |
O-RING
|
|
| 106. |
S8030041
|
[2] |
O-RING
|
|
| 107. |
S8030061
|
[4] |
O-RING
|
|
| 14. |
DS2119299
|
[1] |
|
|
| 15. |
DS2119302
|
[1] |
|
|
| 16. |
DS2119315
|
[1] |
|
|
| 17. |
DS2120166
|
[1] |
|
|
| 18. |
120202-00008
|
[3] |
|
|
| 19. |
180308-00534A
|
[2] |
|
|
| 20. |
2181-1950D1
|
[2] |
PLUG
|
|
| 21. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 22. |
2181-4133D3
|
[2] |
ADAPTER
|
DS2232012
|
| 22. |
DS2232012
|
[2] |
ADAPTER
|
|
| 24. |
430201-00108
|
[1] |
|
|
| 27. |
DS0014013
|
[1] |
|
|
| 28. |
DS0025042
|
[5] |
BOLT
|
|
| 29. |
S0512066
|
[2] |
. BOLT
|
|
| 3. |
410119-00003
|
[1] |
|
|
| 30. |
S0512266
|
[2] |
BOLT
|
|
| 32. |
S2212266
|
[4] |
BOLT
|
|
| 33. |
2114-1058D10
|
[2] |
WASHER
|
|
| 35. |
S5102603
|
[2] |
. WASHER
|
|
| 36. |
S5110603
|
[4] |
WASHER
|
|
| 37. |
S8000111
|
[4] |
O-RING
|
|
| 39. |
S8000181
|
[3] |
O-RING
|
|
| 4. |
100201-01371B
|
[1] |
|
|
| 40. |
S8030041
|
[2] |
O-RING
|
|
| 42. |
S8030081
|
[3] |
O-RING
|
|
| 5. |
250105-00321A
|
[1] |
|
|
| 7. |
DS20111382
|
[2] |
|
|
| 8. |
DS20111514
|
[1] |
|
|
