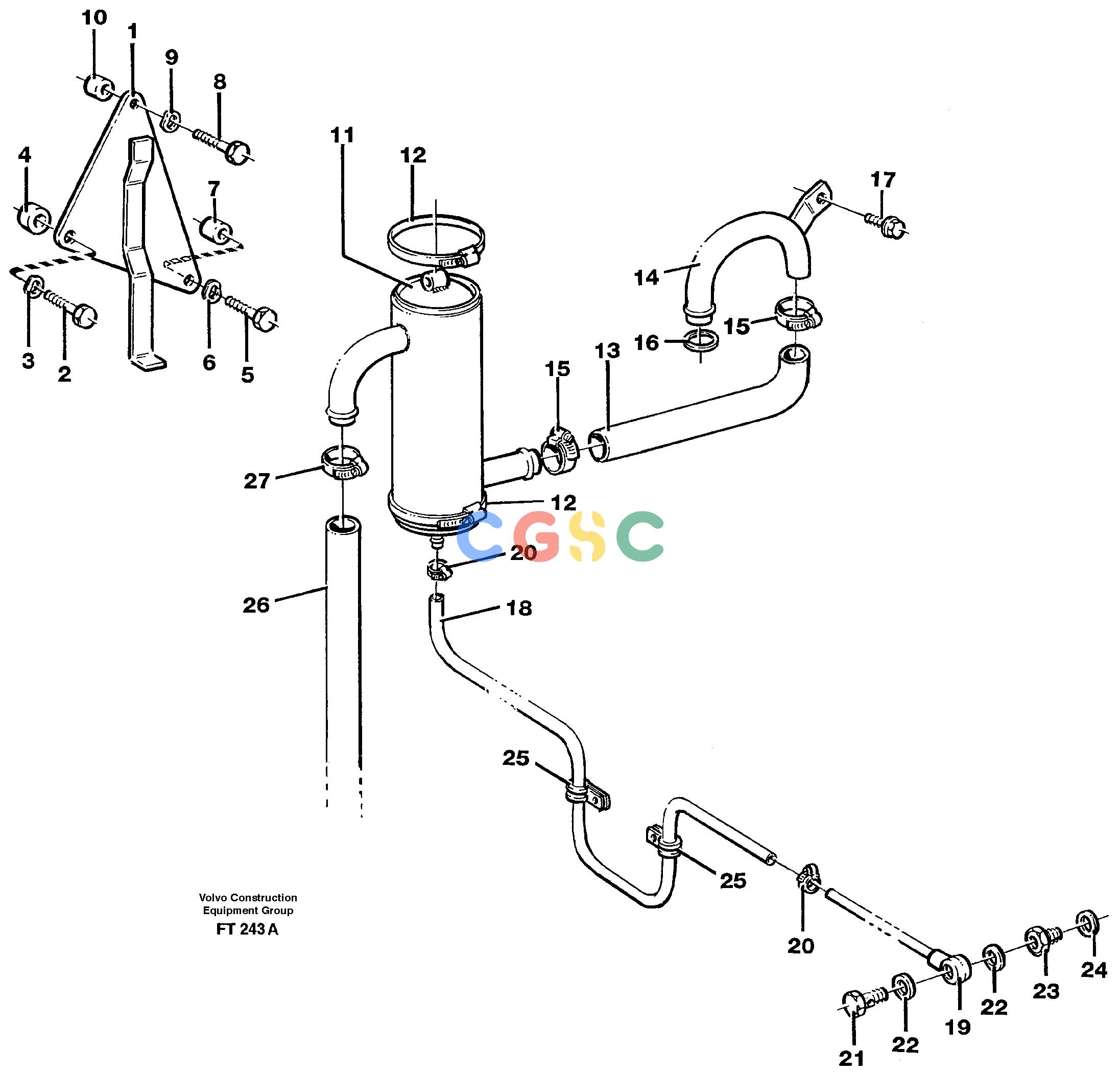

沃尔沃零件查询EC340 Crankcase ventilation.SER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11031267
|
[1] |
Bracket
|
|
| 2. |
VOE955564
|
[1] |
Hexagon screw
|
|
| 3. |
VOE940280
|
[1] |
Spring washer
|
|
| 4. |
VOE1678297
|
[1] |
Spacer sleeve
|
|
| 5. |
VOE13940162
|
[1] |
Screw
|
|
| 6. |
VOE13942336
|
[1] |
Spring washer
|
|
| 7. |
VOE821540
|
[1] |
Spacer sleeve
|
|
| 8. |
VOE955536
|
[1] |
Hexagon screw
|
|
| 9. |
VOE13942336
|
[1] |
Spring washer
|
|
| 10. |
VOE824248
|
[1] |
Spacer sleeve
|
|
| 11. |
VOE11033878
|
[1] |
Oil trap
|
|
| 12. |
VOE943483
|
[2] |
Hose clamp
|
|
| 13. |
VOE11031305
|
[1] |
Hose
|
|
| 14. |
VOE11031304
|
[1] |
Tube
|
|
| 15. |
VOE943476
|
[2] |
Hose clamp
|
|
| 16. |
VOE421158
|
[1] |
Sealing ring
|
|
| 17. |
VOE942402
|
[1] |
Flange screw
|
|
| 18. |
VOE983342
|
[REQ] |
Hose
|
L = 1000MM
|
| 19. |
VOE837608
|
[1] |
Fuel pipe
|
|
| 20. |
VOE943470
|
[2] |
Hose clamp
|
|
| 21. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 22. |
VOE13969011
|
[2] |
Gasket
|
|
| 23. |
VOE11031931
|
[1] |
Reduction nipple
|
|
| 24. |
VOE13947625
|
[1] |
Plane gasket
|
|
| 25. |
VOE952629
|
[2] |
Clamp
|
|
| 26. |
VOE927661
|
[REQ] |
Rubber hose
|
L = 900MM
|
| 27. |
VOE943476
|
[1] |
Hose clamp
|
|
