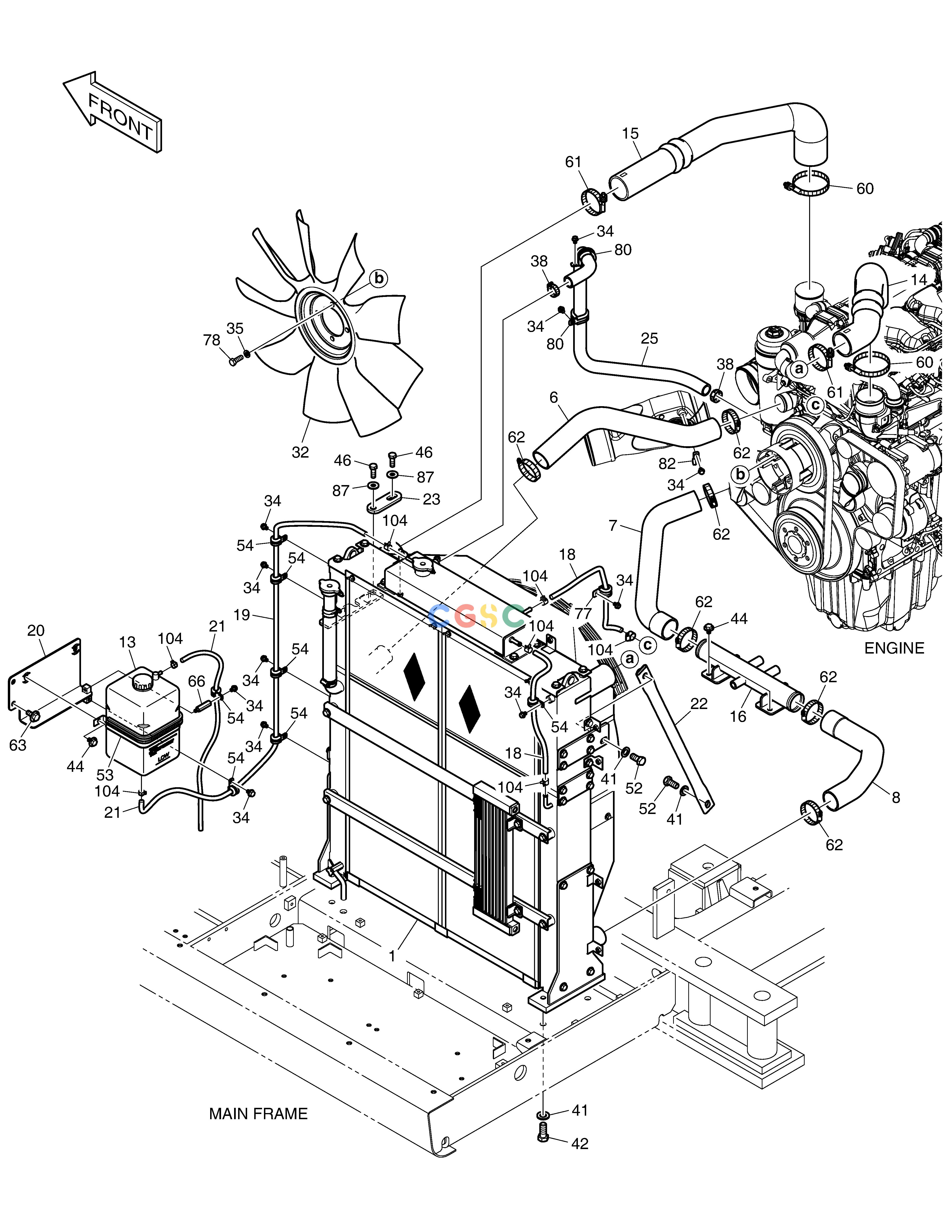

斗山零件查询RADIATOR MOUNTING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00849
|
[-] |
|
|
| 1. |
440211-00416C
|
[1] |
|
|
| 104. |
S8470014
|
[7] |
CLAMP
|
|
| 13. |
450107-00024
|
[1] |
|
|
| 14. |
420101-00749E
|
[1] |
|
|
| 15. |
420101-00718E
|
[1] |
|
|
| 16. |
420211-00331B
|
[1] |
|
|
| 18. |
DS2081109
|
[2] |
|
|
| 19. |
DS2160001
|
[1] |
|
|
| 19. |
DS2081149
|
[1] |
|
DS2160001
|
| 20. |
110406-02845
|
[1] |
|
|
| 21. |
DS2160002
|
[1] |
HOSE
|
|
| 21. |
DS2081148
|
[1] |
|
DS2160002
|
| 22. |
K1005860A
|
[1] |
STAY
|
|
| 23. |
110406-02129A
|
[1] |
|
|
| 25. |
420109-00630
|
[1] |
|
|
| 32. |
210101-00296
|
[1] |
|
|
| 34. |
K1001029
|
[11] |
BOLT
|
|
| 35. |
S5102703
|
[4] |
WASHER
|
|
| 38. |
S8470044
|
[2] |
CLAMP;HOSE
|
|
| 41. |
2114-1816A
|
[6] |
WASHER
|
|
| 42. |
S0521366
|
[4] |
BOLT
|
|
| 44. |
DS0025014
|
[6] |
BOLT
|
|
| 46. |
S0515366
|
[2] |
BOLT
|
|
| 52. |
S0521466
|
[2] |
BOLT
|
|
| 53. |
120203-00521
|
[1] |
|
|
| 54. |
124-00208D2
|
[7] |
CLAMP
|
|
| 6. |
420109-00431A
|
[1] |
|
|
| 60. |
S8500118
|
[2] |
COLLIER
|
|
| 61. |
S8500092
|
[2] |
CLAMP;HOSE
|
|
| 62. |
S8500079
|
[6] |
CLAMP
|
|
| 63. |
DS0025015
|
[2] |
BOLT
|
|
| 66. |
2120-2187
|
[1] |
BOLT
|
|
| 7. |
420109-00432
|
[1] |
|
|
| 77. |
124-00208D3
|
[1] |
CLIP
|
|
| 78. |
S0560466
|
[4] |
BOLT
|
|
| 8. |
420109-00433A
|
[1] |
|
|
| 80. |
124-00208D6
|
[2] |
CLIP
|
|
| 82. |
65.97401-0202
|
[1] |
|
|
| 87. |
2114-1058D72
|
[2] |
WASHER
|
|
