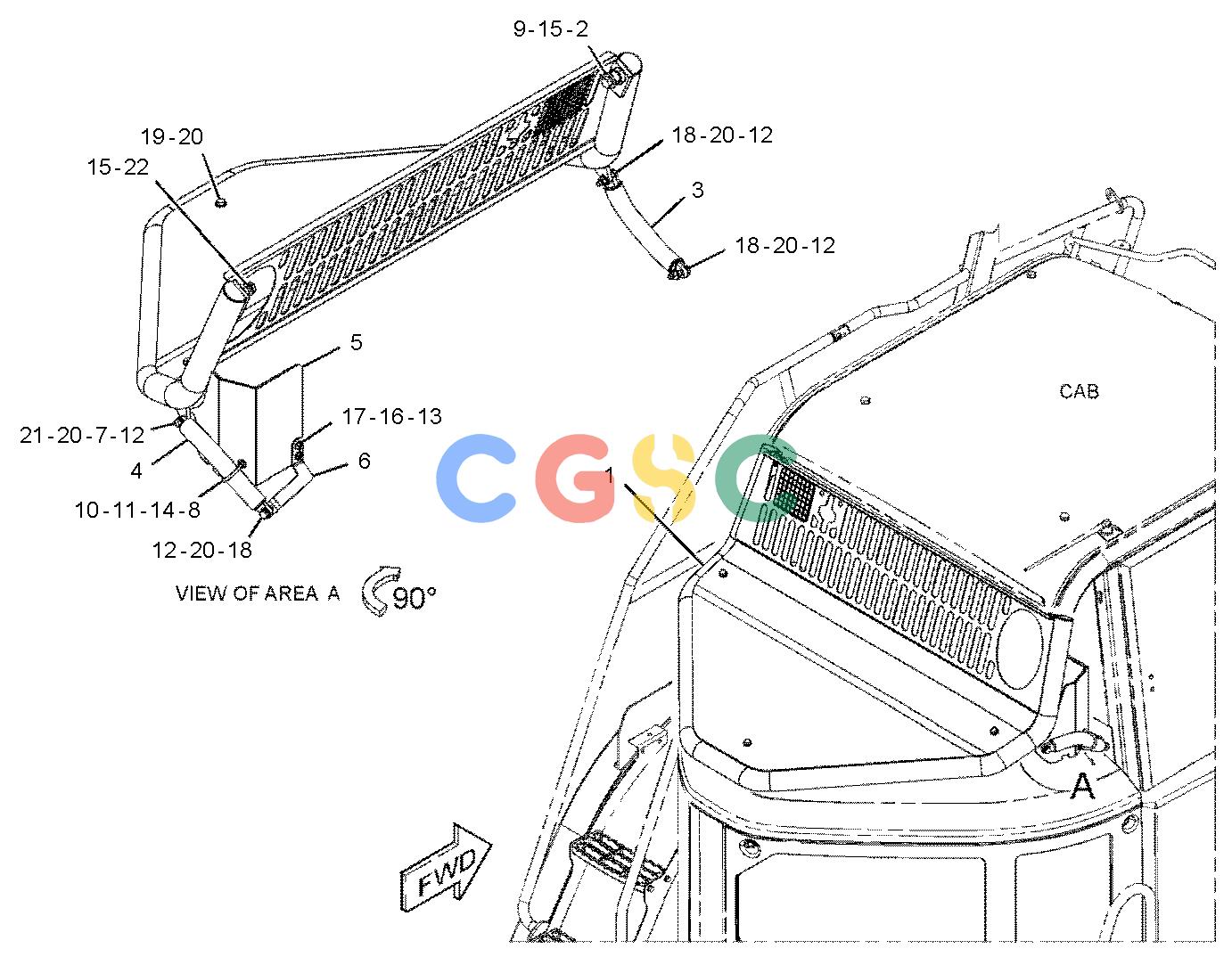

卡特零件查询（725C） 291-8960: GUARD GP-WINDOW
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 453-2945 | [1] | GUARD AS-WINDOW | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [3] | NUT-WELD(M12X1.75-THD) | |
| 2. | 188-3001 | [1] | BOSS(17.5X30X18-MM THK) | |
| 3. | 352-6385 | [1] | SUPPORT AS(LH) | |
| 4. | 352-6386 | [1] | SUPPORT AS(RH) | |
| 5. | 358-0715 | [1] | SHIELD AS-HEAT | |
| 6. | 358-0716 | [1] | PLATE | |
| 7. | 198-4778 | [1] | WASHER-HARD(13.5X30X12-MM THK) | |
| 8. | 227-4768 | [1] | U-BOLT | |
| 9. | 3E-9411 | [1] | WASHER-HARD(17.5X38X6-MM THK) | |
| 10. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 11. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 12. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 13. | 6V-7744M | [2] | LOCKNUT(M10X1.5-THD) | |
| 14. | 6V-9189M | [2] | LOCKNUT(M8X1.25-THD) | |
| 15. | 7X-2554M | [2] | BOLT(M16X2X70-MM) | |
| 16. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4184M | [3] | BOLT(M12X1.75X45-MM) | |
| 19. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 20. | 8T-4223 | [11] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 21. | 8T-4910M | [1] | BOLT(M12X1.75X60-MM) | |
| 22. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
