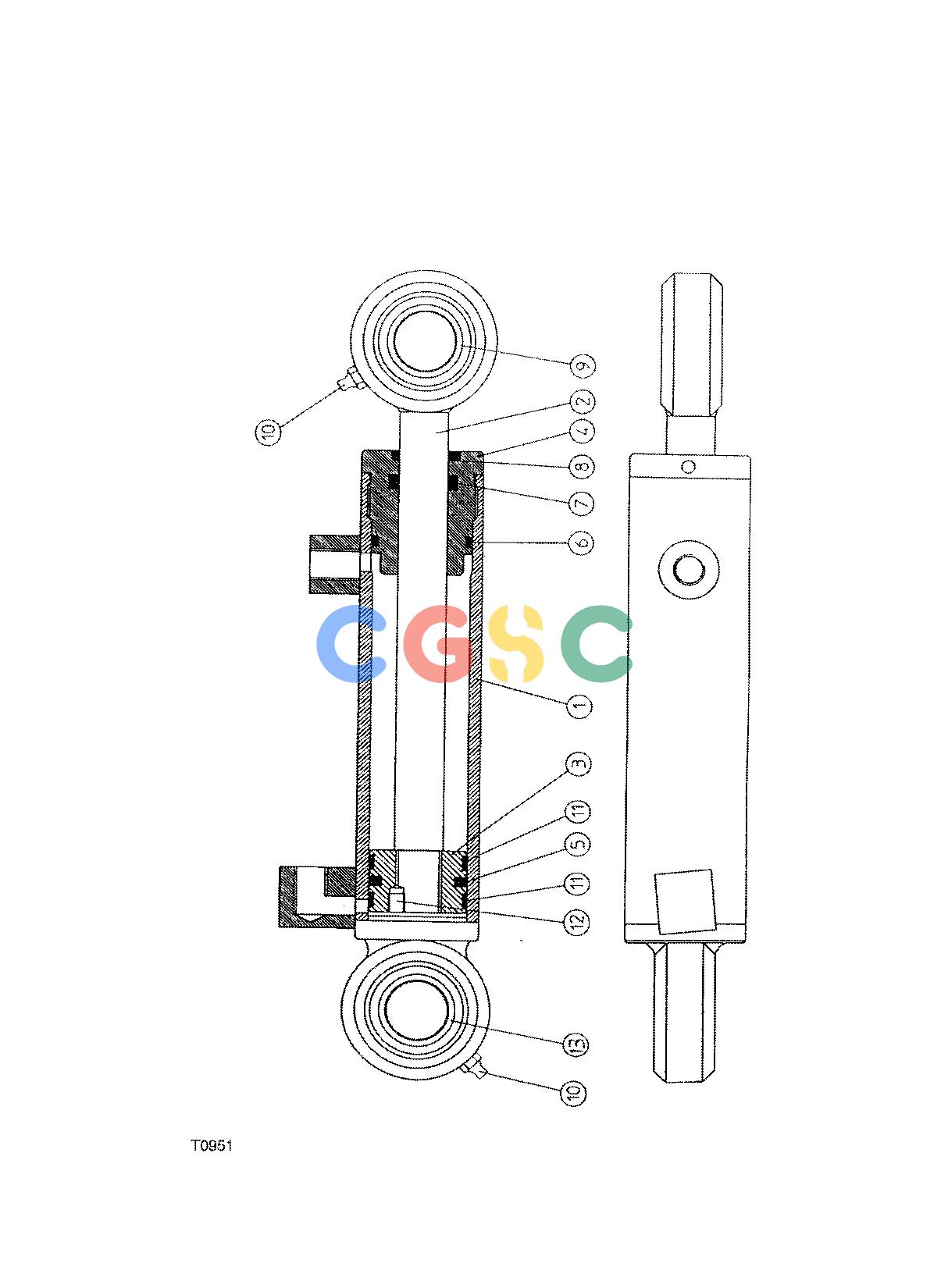

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE CYLINDER, FEED ROLLER F045006 11 48 T0951 [T0951]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047836
|
[1] |
Hydraulic Cylinder
|
|
| |
F053048
|
|
Cylinder
|
|
| 1. |
F047901
|
[1] |
CYLINDER TUBE
|
|
| 1. |
F054507
|
|
CYLINDER TUBE
|
|
| 2. |
F047902
|
[1] |
PISTON ROD
|
|
| 2. |
F054508
|
|
PISTON ROD
|
|
| 3. |
F047903
|
[1] |
Piston
|
|
| 4. |
F047904
|
[1] |
PISTON GUIDE
|
|
| 4. |
F054509
|
|
PISTON GUIDE
|
|
| 5. |
F047905
|
[1] |
SEAL RING
|
|
| 6. |
F035423
|
[1] |
O-Ring
|
|
| 7. |
F047906
|
[1] |
Ring
|
|
| 8. |
F047907
|
[1] |
Scraper
|
|
| 9. |
F003818
|
[1] |
SPHERICAL BEARING
|
|
| 10. |
F003727
|
[2] |
GREASE NIPPLE
|
|
| 11. |
F047908
|
[2] |
GUIDE RING
|
|
| 12. |
F008586
|
[1] |
STOP SCREW
|
|
| 13. |
F003820
|
[1] |
SPHERICAL BEARING
|
|
| |
F047909
|
[1] |
Seal Kit
|
|
