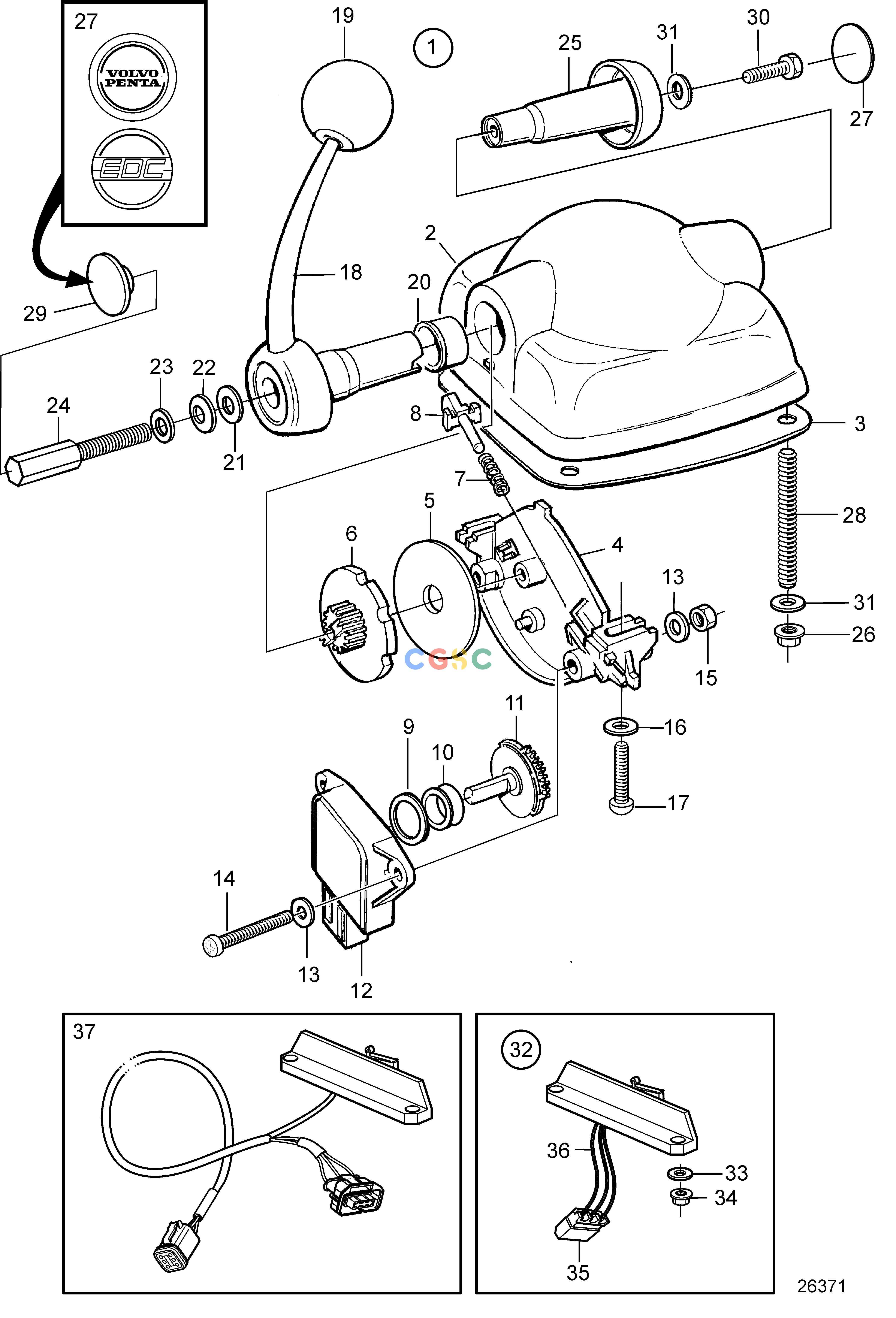

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)ControlsControl for top Installation Single with Neutral Switch EVC-E2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3819899
|
[1] |
Control, black
|
Attention! Do not connect the neutral switch, this may lead to loss of the reverse functionality.
|
| 1. |
3819901
|
[1] |
Control, stainless
|
Replaced by 3819899
|
| 2. |
|
|
|
|
| 3. |
3581674
|
[1] |
Gasket
|
|
| 4. |
|
|
|
|
| 5. |
3581666
|
[1] |
Friction washer
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3581676
|
[1] |
Ring
|
|
| 11. |
3581668
|
[1] |
Gear
|
|
| 12. |
1336385
|
[1] |
Potentiometer
|
|
| 13. |
|
|
|
|
| 14. |
3581678
|
[2] |
Screw
|
|
| 15. |
3581680
|
[2] |
Nut
|
|
| 16. |
|
|
|
|
| 17. |
3581681
|
[2] |
Screw
|
|
| 18. |
|
|
|
|
| 19. |
3581675
|
[1] |
Ball
|
Replaced by 3808284
|
| 19. |
3808284
|
[1] |
Ball
|
|
| 20. |
3581673
|
[1] |
Bearing
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
3581687
|
[1] |
Plug
|
|
| 26. |
3581686
|
[4] |
Nut
|
|
| 27. |
3584000
|
[1] |
Decal
|
Volvo Penta
|
| 27. |
3581669
|
[1] |
Decal
|
EDC
|
| 28. |
|
|
|
|
| 29. |
3582830
|
[1] |
Plug
|
Plastic, For 874734
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
3819903
|
[1] |
Microswitch
|
|
| 33. |
|
|
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
See group 30
|
| 36. |
|
|
|
See group 30
|
| 37. |
21256757
|
[1] |
Cable kit
|
|
