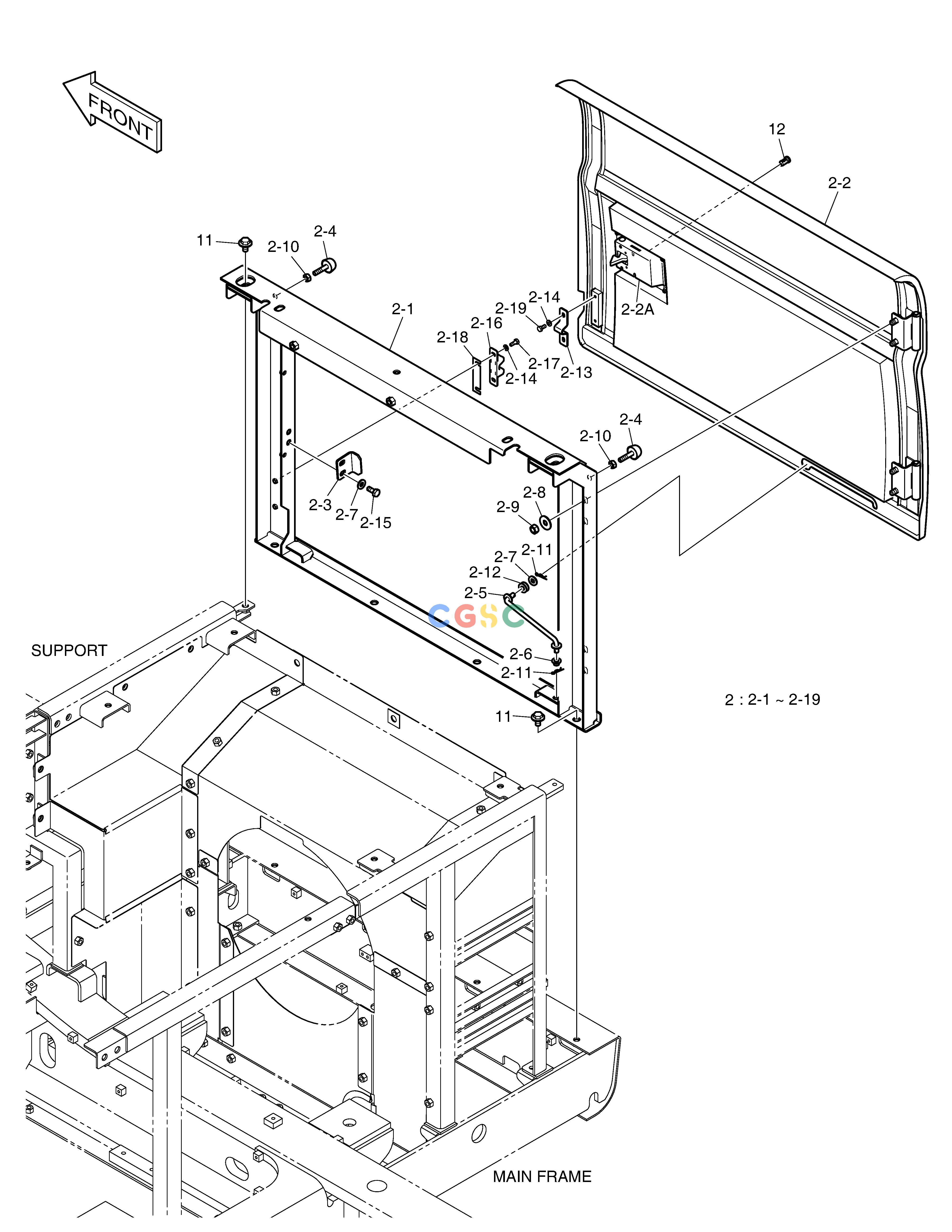

斗山零件查询SIDE DOOR - R.H DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
675 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-11966
|
[-] |
|
|
| 11. |
DS0025015
|
[8] |
BOLT
|
|
| 12. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 2. |
110982-00634B
|
[2] |
|
|
| 2-1. |
110958-01802A
|
[1] |
|
|
| 2-10. |
S4012633
|
[2] |
NUT
|
|
| 2-11. |
2705-9002
|
[2] |
PIN
|
|
| 2-12. |
K1008335
|
[1] |
. BUSHING
|
|
| 2-13. |
250201-00028
|
[1] |
. PLATE
|
|
| 2-14. |
S5010313
|
[4] |
WASHER
|
|
| 2-15. |
S0512066
|
[2] |
. BOLT
|
|
| 2-16. |
110956-00002A
|
[1] |
. STOPPER
|
|
| 2-17. |
S0504653
|
[2] |
. BOLT
|
|
| 2-18. |
110947-00027
|
[1] |
. SHIM
|
|
| 2-19. |
S0504553
|
[2] |
BOLT
|
|
| 2-2. |
110982-00635
|
[1] |
|
|
| 2-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 2-3. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 2-4. |
K1001260A
|
[2] |
STOPPER
|
|
| 2-5. |
101582-00618
|
[1] |
|
|
| 2-6. |
K1000602
|
[1] |
. BUSHING
|
|
| 2-7. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 2-8. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 2-9. |
S4012733
|
[4] |
NUT
|
|
