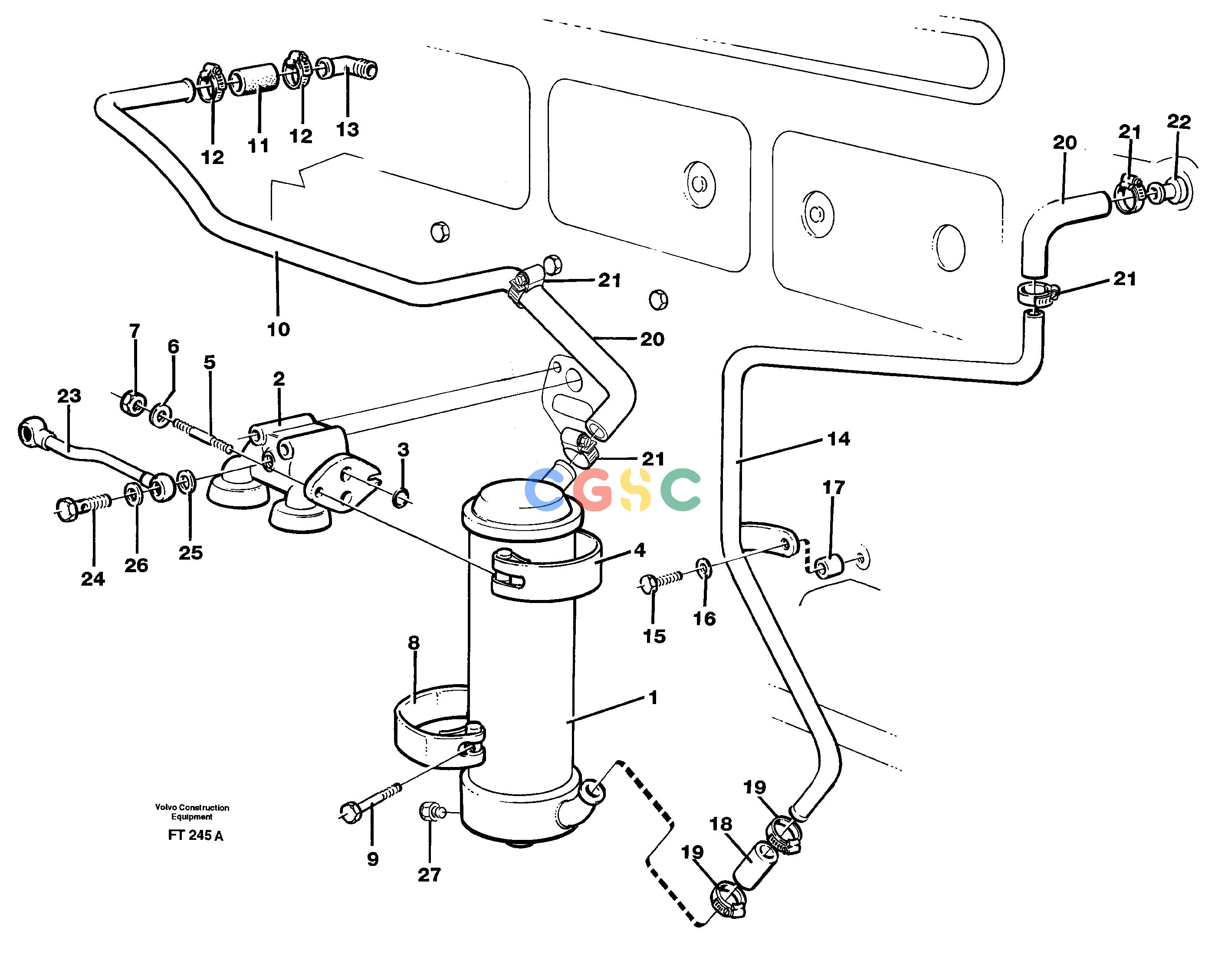

沃尔沃零件查询EC340 Oil coolerSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE468999
|
[1] |
Oil cooler
|
|
| 2. |
|
[1] |
Filter Housing
|
|
| 3. |
VOE469483
|
[2] |
Sealing ring
|
|
| 4. |
VOE1545255
|
[1] |
Tensioning band
|
|
| 5. |
VOE924072
|
[2] |
Stud
|
|
| 6. |
VOE13960141
|
[2] |
Washer
|
|
| 7. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 8. |
VOE1545256
|
[1] |
Tensioning band
|
|
| 9. |
VOE1545257
|
[1] |
Screw
|
|
| 10. |
VOE11031251
|
[1] |
Pipe
|
|
| 11. |
VOE943369
|
[REQ] |
Hose
|
L = 2 x 75MM
|
| 12. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 13. |
VOE467716
|
[1] |
Nipple
|
|
| 14. |
VOE11031252
|
[1] |
Pipe
|
|
| 15. |
VOE855525
|
[1] |
Bearing
|
|
| 16. |
VOE13955894
|
[1] |
Washer
|
|
| 17. |
VOE847150
|
[1] |
Spacer sleeve
|
|
| 18. |
VOE351574
|
[1] |
Hose
|
|
| 19. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 20. |
VOE11162233
|
[2] |
Hose
|
|
| 21. |
VOE13943472
|
[4] |
Hose clamp
|
|
| 22. |
VOE479974
|
[1] |
Nipple
|
|
| 23. |
VOE422819
|
[1] |
Delivery pipe
|
|
| 24. |
VOE942007
|
[2] |
Hollow screw
|
|
| 25. |
VOE13947624
|
[2] |
Plane gasket
|
|
| 26. |
VOE942703
|
[2] |
Gasket
|
|
| 27. |
VOE180759
|
[1] |
Plug
|
|
