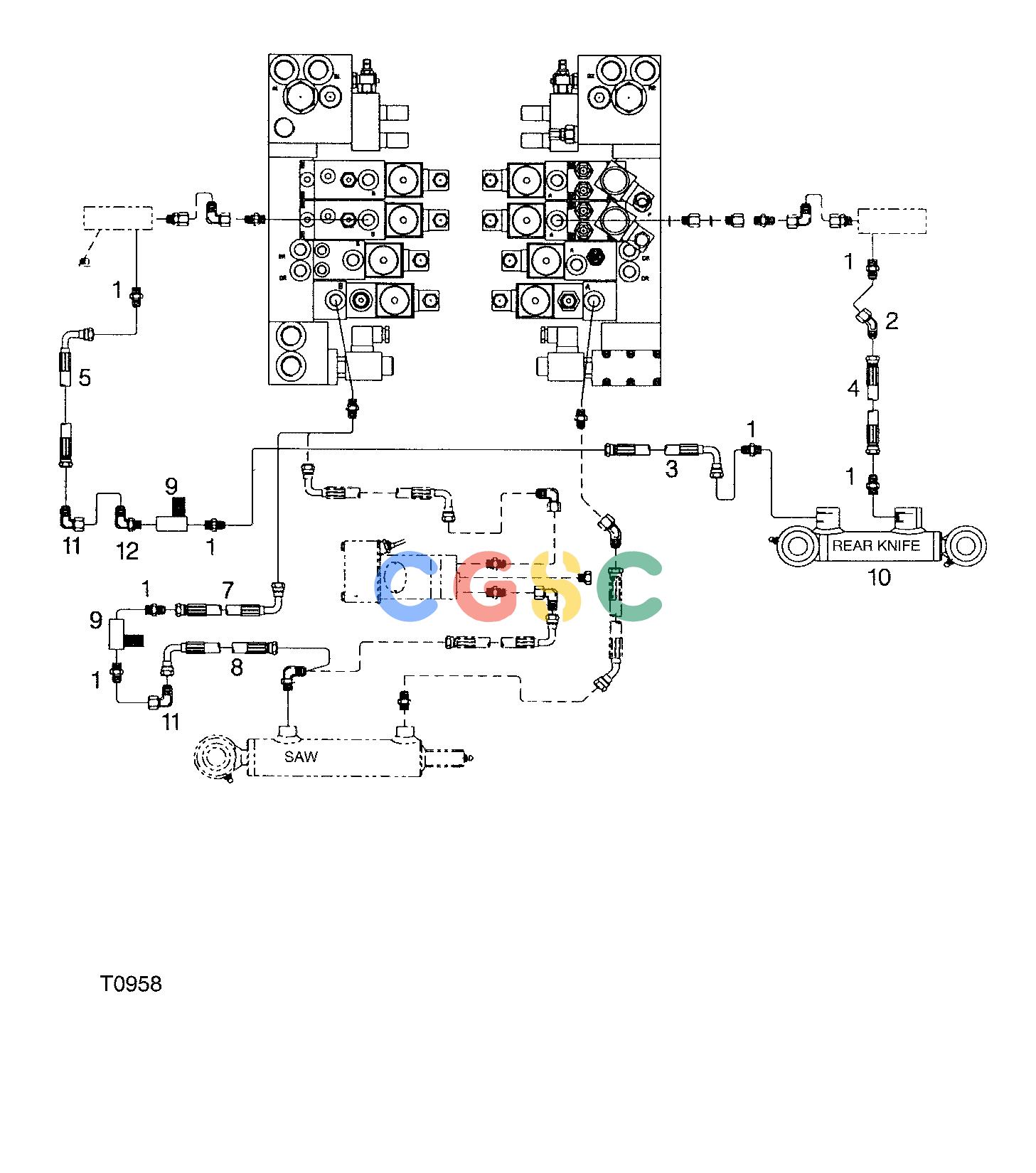

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F045006 11 58 T0958 [T0958]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
620 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F005057
|
[7] |
NIPPLE
|
|
| 2. |
F047923
|
[1] |
ELBOW CONNECTION
|
|
| 3. |
F023016
|
[1] |
HOSE-ASSY
|
|
| 4. |
F052793
|
[1] |
HOSE-ASSY
|
|
| 5. |
F023016
|
[1] |
HOSE-ASSY
|
|
| 7. |
F047968
|
[1] |
HOSE-ASSY
|
|
| 8. |
F047969
|
[1] |
HOSE-ASSY
|
|
| 9. |
F008675
|
[1] |
Check Valve
|
|
| 9. |
F059125
|
[1] |
Orifice
|
|
| 10. |
F047970
|
[2] |
Hydraulic Cylinder
|
|
| |
F051515
|
[1] |
Seal Kit
|
|
| 10. |
F055836
|
[2] |
Hydraulic Cylinder
|
|
| 11. |
F033374
|
[1] |
ELBOW CONNECTION
|
|
| 12. |
F023012
|
[1] |
CONNECTION
|
|
