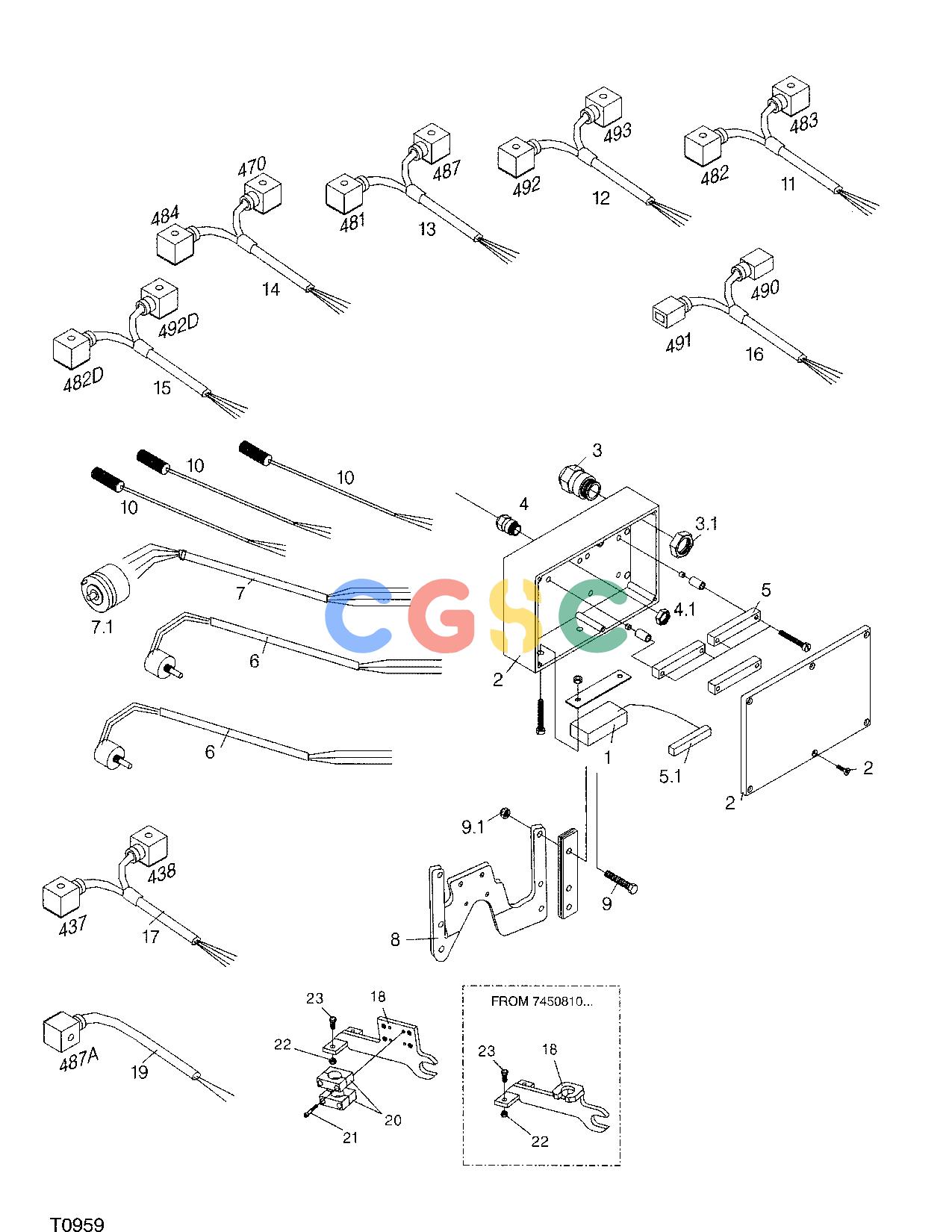

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING F045006 11 60 T0959 [T0959]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047973
|
[1] |
CABLE HARNESS
|
|
| |
F047974
|
[1] |
ELECTRICAL BOX EQUIPMENTS
|
|
| 1. |
F008194
|
[1] |
Amplifier
|
|
| 2. |
F047975
|
[1] |
ELECTRICAL BOX
|
|
| 3. |
F008707
|
[1] |
Seal
|
|
| 3. |
F047976
|
[1] |
Nut
|
|
| 4. |
F008708
|
[11] |
Seal
|
|
| 4. |
F047977
|
[11] |
Nut
|
|
| 5. |
F005308
|
[3] |
TERMINAL BLOCK
|
|
| 5. |
F047978
|
[1] |
Bar
|
|
| 6. |
F002732
|
[2] |
Sensor
|
|
| 6. |
F021413
|
[2] |
Sensor
|
|
| 7. |
F054831
|
[1] |
Cable
|
|
| 7. |
F013227
|
[1] |
LENGTH SENSOR
|
|
| 8. |
F047678
|
[1] |
FASTENING PLATE
|
|
| 9. |
F003526
|
[4] |
Screw
|
|
| 9. |
F040934
|
[4] |
Lock Nut
|
|
| 10. |
F047866
|
[3] |
Sensor
|
|
| 11. |
F047979
|
[1] |
Cable
|
|
| 12. |
F047980
|
[1] |
Cable
|
|
| 13. |
F047981
|
[1] |
Cable
|
|
| 14. |
F047982
|
[1] |
Cable
|
|
| 15. |
F047983
|
[1] |
Cable
|
|
| 16. |
F047984
|
[1] |
Cable
|
|
| 16. |
F054829
|
[1] |
Cable
|
|
| 17. |
F047985
|
[1] |
Cable
|
|
| 18. |
F052791
|
[1] |
FASTENING
|
|
| 18. |
F054520
|
[1] |
FASTENING
|
|
| 19. |
F054830
|
[1] |
Cable
|
|
| 20. |
F052794
|
[2] |
Clamp
|
|
| 21. |
F003422
|
[4] |
HEX SOCKETHEAD SCREW
|
|
| 22. |
F003588
|
[2] |
Lock Nut
|
|
| 23. |
F021647
|
[2] |
Screw
|
|
| 24. |
F052790
|
[2] |
RUBBER PLATE
|
|
