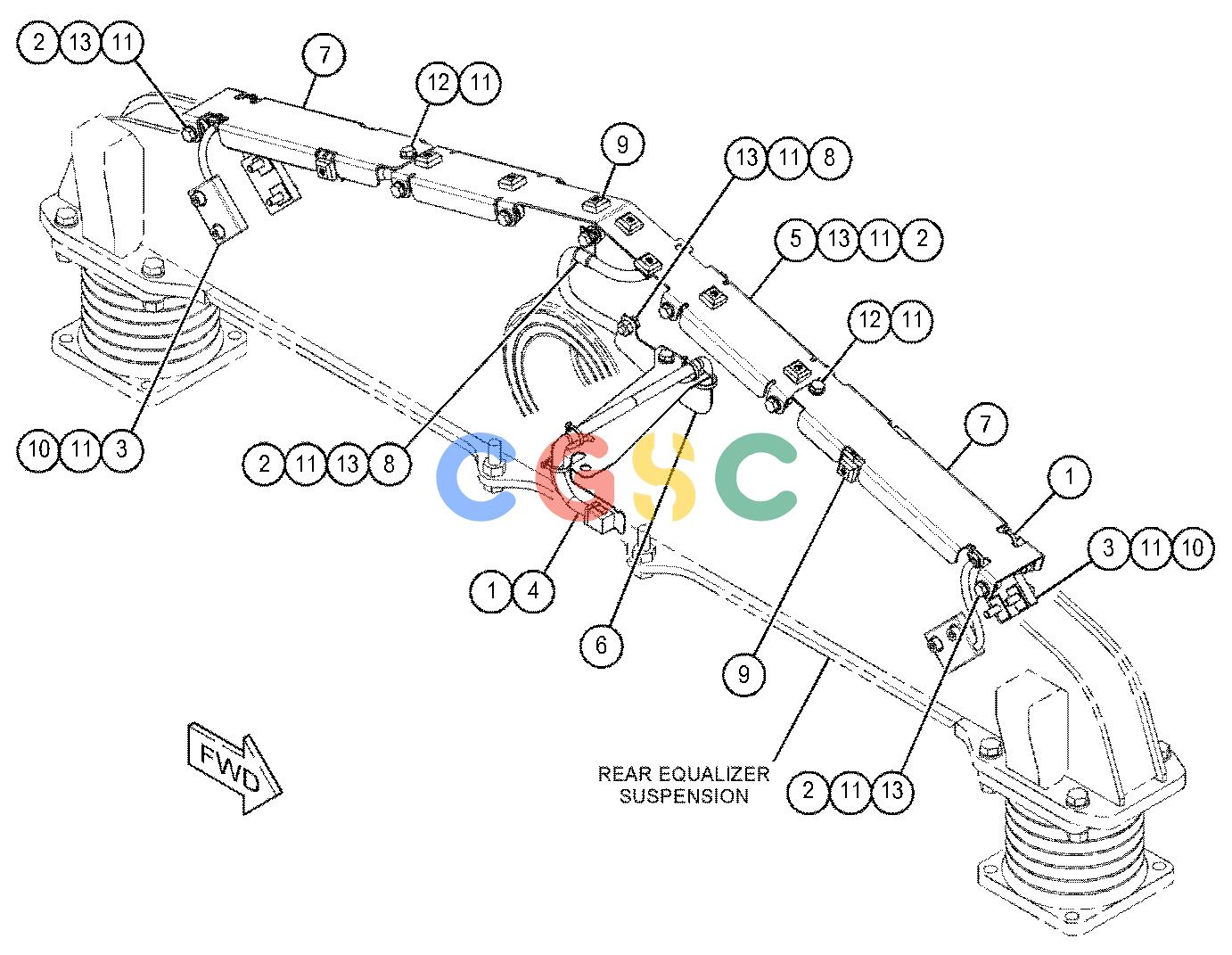

卡特零件查询（725C） 458-3353: WIRING GP-PAYLOAD
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [9] | STRAP-CABLE | |
| 2. | 380-8803M | [14] | NUT-INSERT(M10X1.5-THD) | |
| 3. | 550-0975 | [4] | SENSOR GP-PAYLOAD(BEAM) | |
| | | | (EACH INCLUDES) |
| | 3E-3389 | [1] | WEDGE-RECEPTACLE LOCK(8-PIN) | |
| | 9X-3401 | [8] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 311-8747 | [1] | ADAPTER-CONNECTOR | |
| | 160-3518 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 4. | 478-6435Y | [1] | HARNESS AS-MONITOR(PAYLOAD-SENSOR) | |
| 5. | 504-8401 | [1] | PLATE AS | |
| 6. | 483-5370 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 463-6467 | [2] | PLATE | |
| 8. | 124-0174 | [2] | CLIP(LOOP) | |
| 9. | 393-1829 | [11] | TIE-CABLE | |
| 10. | 105-3478M | [8] | BOLT-SOCKET HEAD(M10X1.5X35-MM) | |
| 11. | 8T-4121 | [25] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 13. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
