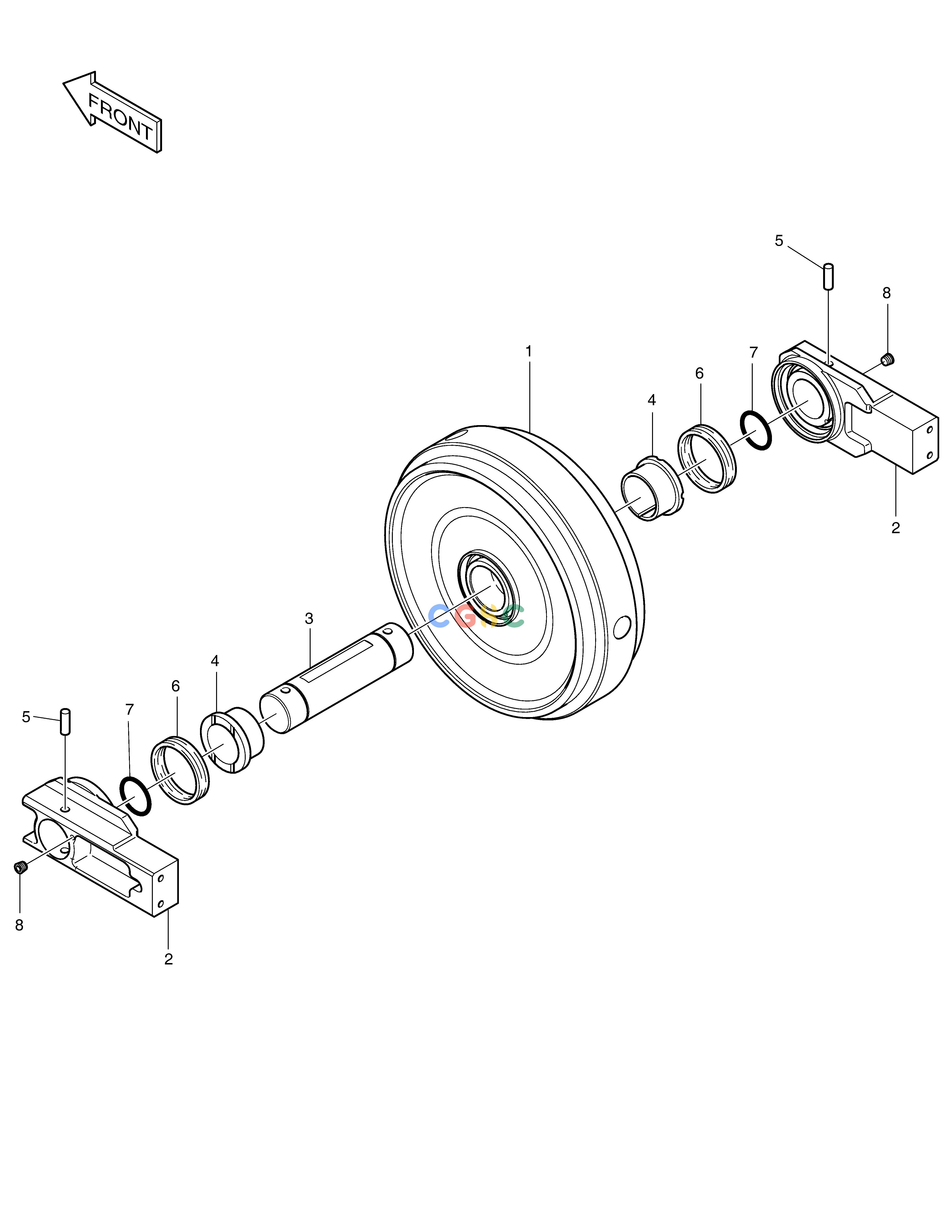

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 200102-00001A | [2] | ||
| 1. | 270-00050 | [1] | BODY;IDLER | |
| 2. | 140105-00021A | [2] | ||
| 3. | 130712-00056A | [1] | ||
| 4. | K1029146 | [2] | BUSHING | |
| 5. | 2123-1218 | [2] | PIN | |
| 6. | 2180-9057 | [2] | SEAL;GROUP | |
| 7. | S8010851 | [2] | O-RING | |
| 8. | 2181-1116D2 | [2] | PLUG |
广数供应链运营团队, 14 02月, 2025，浏览： 963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 200102-00001A | [2] | ||
| 1. | 270-00050 | [1] | BODY;IDLER | |
| 2. | 140105-00021A | [2] | ||
| 3. | 130712-00056A | [1] | ||
| 4. | K1029146 | [2] | BUSHING | |
| 5. | 2123-1218 | [2] | PIN | |
| 6. | 2180-9057 | [2] | SEAL;GROUP | |
| 7. | S8010851 | [2] | O-RING | |
| 8. | 2181-1116D2 | [2] | PLUG |
