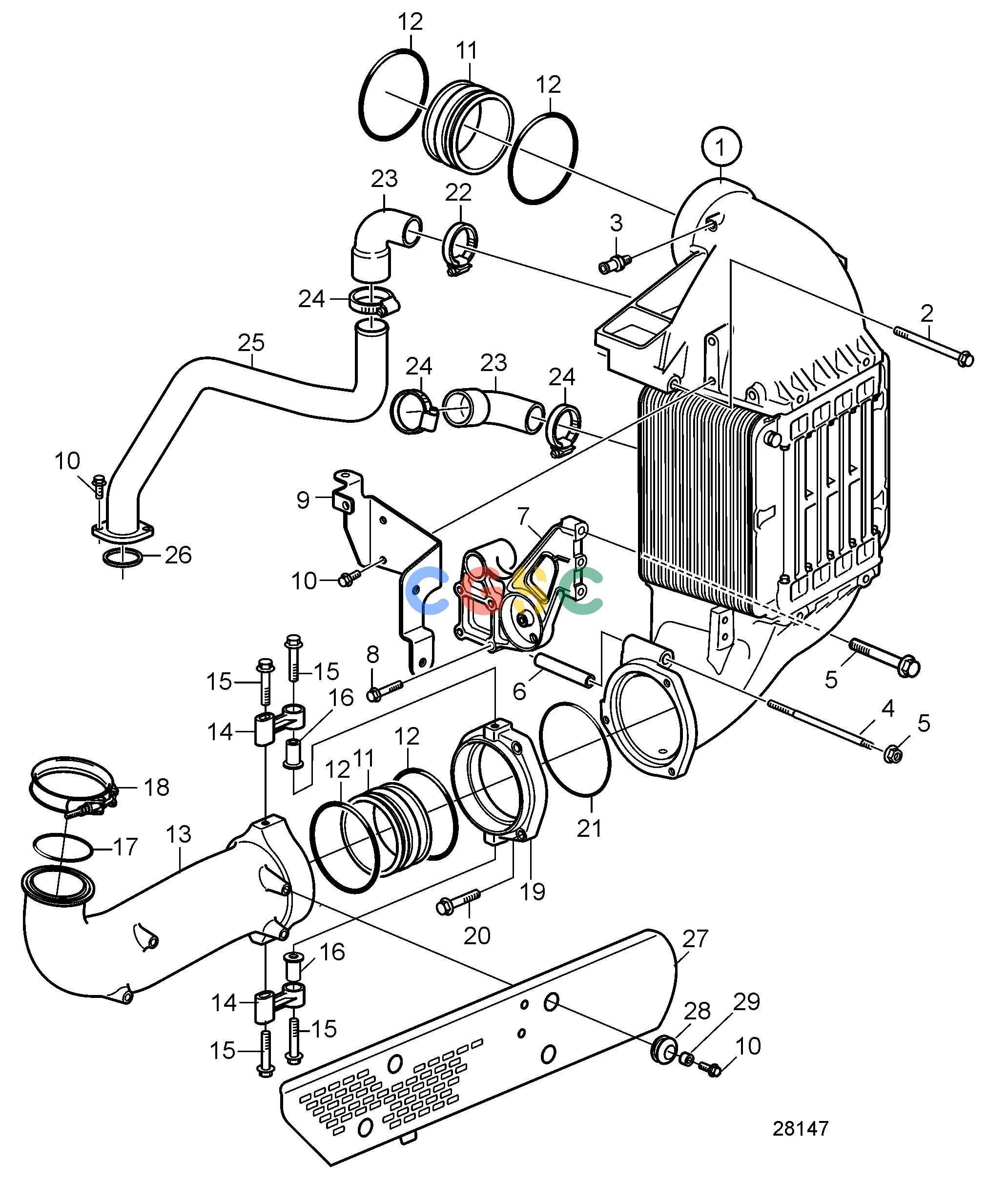

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemAfter Cooler and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
936 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889640
|
[1] |
Charge air cooler
|
|
| 2. |
973096
|
[4] |
Flange screw
|
|
| 3. |
858185
|
[1] |
Hose coupling
|
|
| 4. |
969199
|
[1] |
Stud
|
|
| 5. |
990941
|
[2] |
Flange nut
|
|
| 6. |
994003
|
[1] |
Spacer sleeve
|
|
| 7. |
22529079
|
[1] |
Bracket
|
|
| 8. |
984739
|
[4] |
Flange screw
|
|
| 9. |
|
|
|
|
| 10. |
984734
|
[11] |
Flange screw
|
|
| 11. |
3808387
|
[2] |
Connector
|
Replaced by 22288438
|
| 12. |
3812484
|
[4] |
O-ring
|
|
| 13. |
21351125
|
[1] |
Charge air pipe
|
Replaced by 22360413
|
| 13. |
22360413
|
[1] |
Charge air pipe
|
|
| 14. |
3594032
|
[2] |
Link arm
|
|
| 15. |
973924
|
[4] |
Flange screw
|
|
| 16. |
3849960
|
[1] |
Sleeve
|
|
| 17. |
1542781
|
[1] |
Sealing ring
|
|
| 18. |
1542778
|
[1] |
V-clamp
|
|
| 19. |
21179599
|
[1] |
Adapter
|
|
| 20. |
984738
|
[3] |
Flange screw
|
|
| 21. |
948888
|
[1] |
O-ring
|
|
| 22. |
961669
|
[2] |
Hose clamp
|
|
| 23. |
3593877
|
[2] |
Hose
|
Replaced by 78466839
|
| 23. |
78466839
|
[2] |
Hose
|
|
| 24. |
961670
|
[3] |
Hose clamp
|
|
| 25. |
21186437
|
[1] |
Water pipe
|
SN-2013665901
|
| 25. |
78467044
|
[1] |
Water pipe
|
SN2013665902-
|
| 26. |
864491
|
[1] |
Gasket
|
|
| 27. |
21330039
|
[1] |
Heat shield
|
|
| 28. |
3886025
|
[4] |
Rubber bushing
|
|
| 29. |
3830336
|
[4] |
Spacer
|
|
