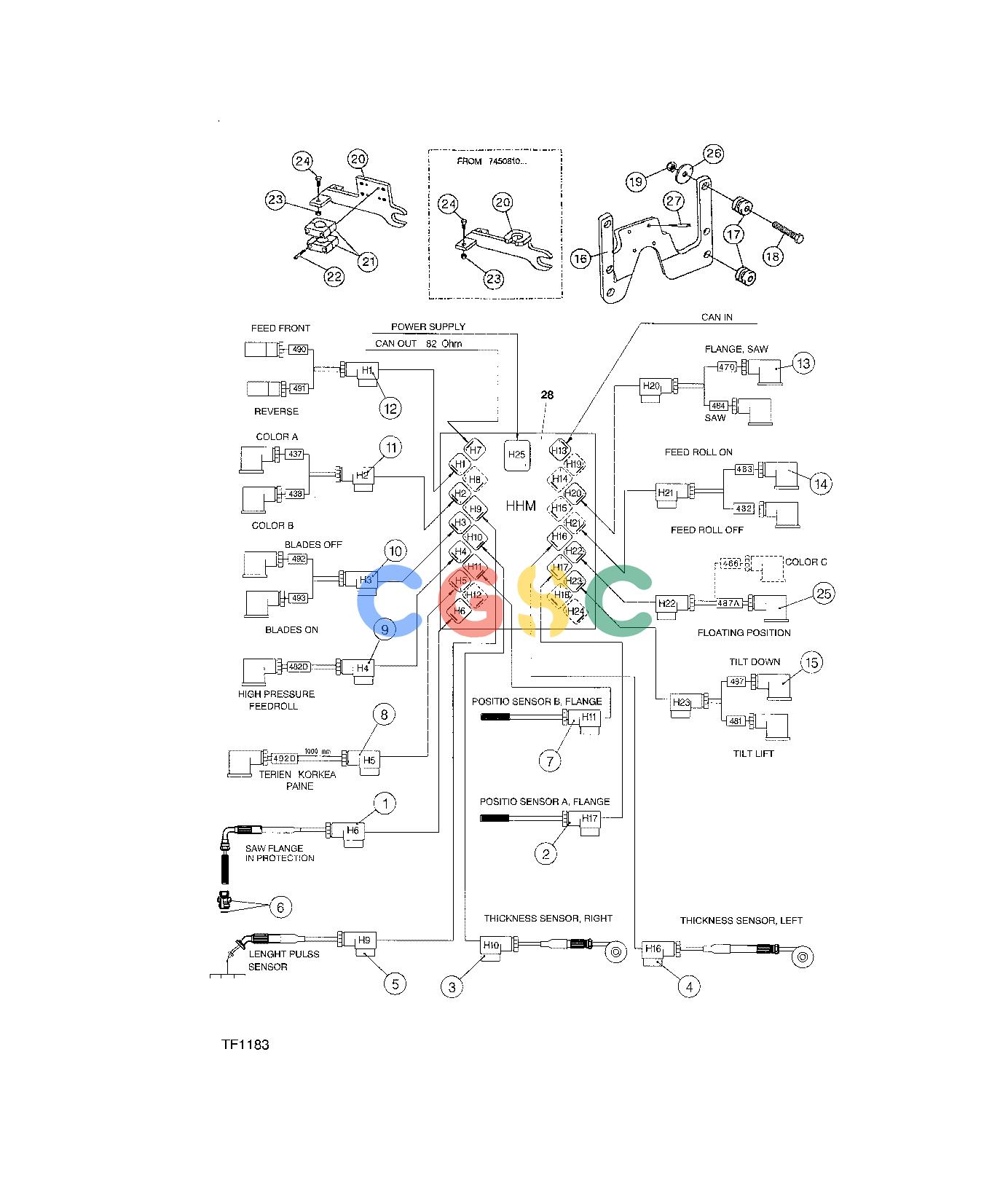

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING F045006 11 62.1 TF1183 [TF1183]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
442 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047986
|
[1] |
Cable
|
|
| 1. |
F047866
|
[1] |
Sensor
|
|
| 1. |
F054515
|
[1] |
HOSE-ASSY
|
|
| 2. |
F047987
|
[1] |
Cable
|
|
| 2. |
F047866
|
[1] |
Sensor
|
|
| 3. |
F047988
|
[1] |
Cable
|
|
| 3. |
F021413
|
[1] |
Sensor
|
|
| 4. |
F047989
|
[1] |
Cable
|
|
| 4. |
F021413
|
[1] |
Sensor
|
|
| 5. |
F047990
|
[1] |
Cable
|
|
| 6. |
F054523
|
[1] |
CONNECTION
|
|
| 6. |
F047992
|
[1] |
O-Ring
|
|
| 7. |
F047993
|
[1] |
Cable
|
|
| 7. |
F047866
|
[1] |
Sensor
|
|
| 8. |
F054516
|
[1] |
Cable
|
|
| 8. |
F047994
|
[1] |
Cable
|
|
| 9. |
F047995
|
[1] |
Cable
|
|
| 10. |
F047996
|
[1] |
Cable
|
|
| 11. |
F047997
|
[1] |
Cable
|
|
| 12. |
F047998
|
[1] |
Cable
|
|
| 12. |
F054517
|
[1] |
Cable
|
|
| 13. |
F054518
|
[1] |
Cable
|
|
| 14. |
F054519
|
[1] |
Cable
|
|
| 15. |
F048001
|
[1] |
Cable
|
|
| 16. |
F047678
|
[1] |
FASTENING PLATE
|
|
| 17. |
F052790
|
[2] |
RUBBER PLATE
|
|
| 17. |
F054521
|
[4] |
Grommet
|
|
| 18. |
F003526
|
[4] |
Screw
|
|
| 19. |
F040934
|
[4] |
Lock Nut
|
|
| 20. |
F052791
|
[1] |
FASTENING
|
|
| 20. |
F054520
|
[1] |
FASTENING
|
|
| 21. |
F052792
|
[2] |
Clamp
|
|
| 21. |
F052794
|
[2] |
Clamp
|
|
| 21. |
F052792
|
[1] |
Clamp
|
|
| 22. |
F007615
|
[4] |
Screw
|
|
| 23. |
F003588
|
[2] |
Lock Nut
|
|
| 24. |
F021647
|
[2] |
Screw
|
|
| 25. |
F054512
|
[1] |
Cable
|
|
| 26. |
F054524
|
[4] |
Washer
|
|
| 27. |
F003393
|
[4] |
Screw
|
|
| 28. |
F040047
|
[1] |
HEAD MODULE
|
|
