纽荷兰零件查询(D125C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (90.151.AK[01]) - REAR VIEW MIRROR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
825 次

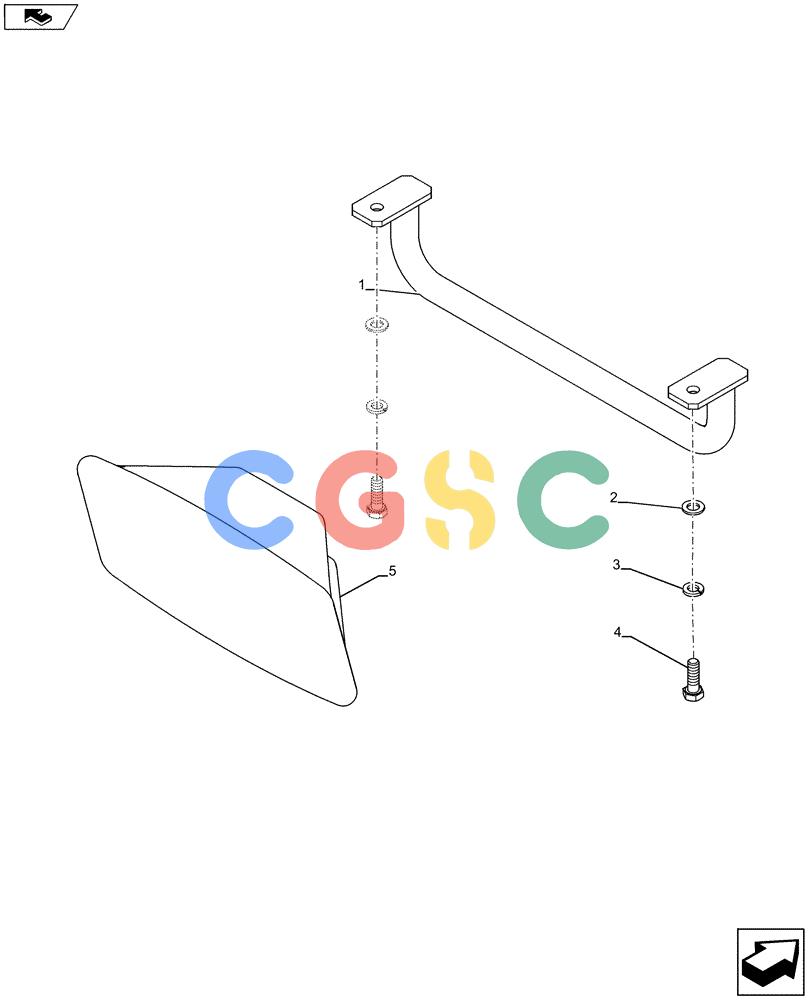

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87444309 | [1] | BRACKET | BUR |
| 2. | 895-11008 | [2] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 3. | 892-11008 | [2] | LOCK WASHER,M8 | IH Superseded by part number: 72187304, 83990583 |
| 4. | 614-8025 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CAS Superseded by part number: 43127 |
| 5. | 76067706 | [1] | REAR VIEW MIRROR | LEC |
