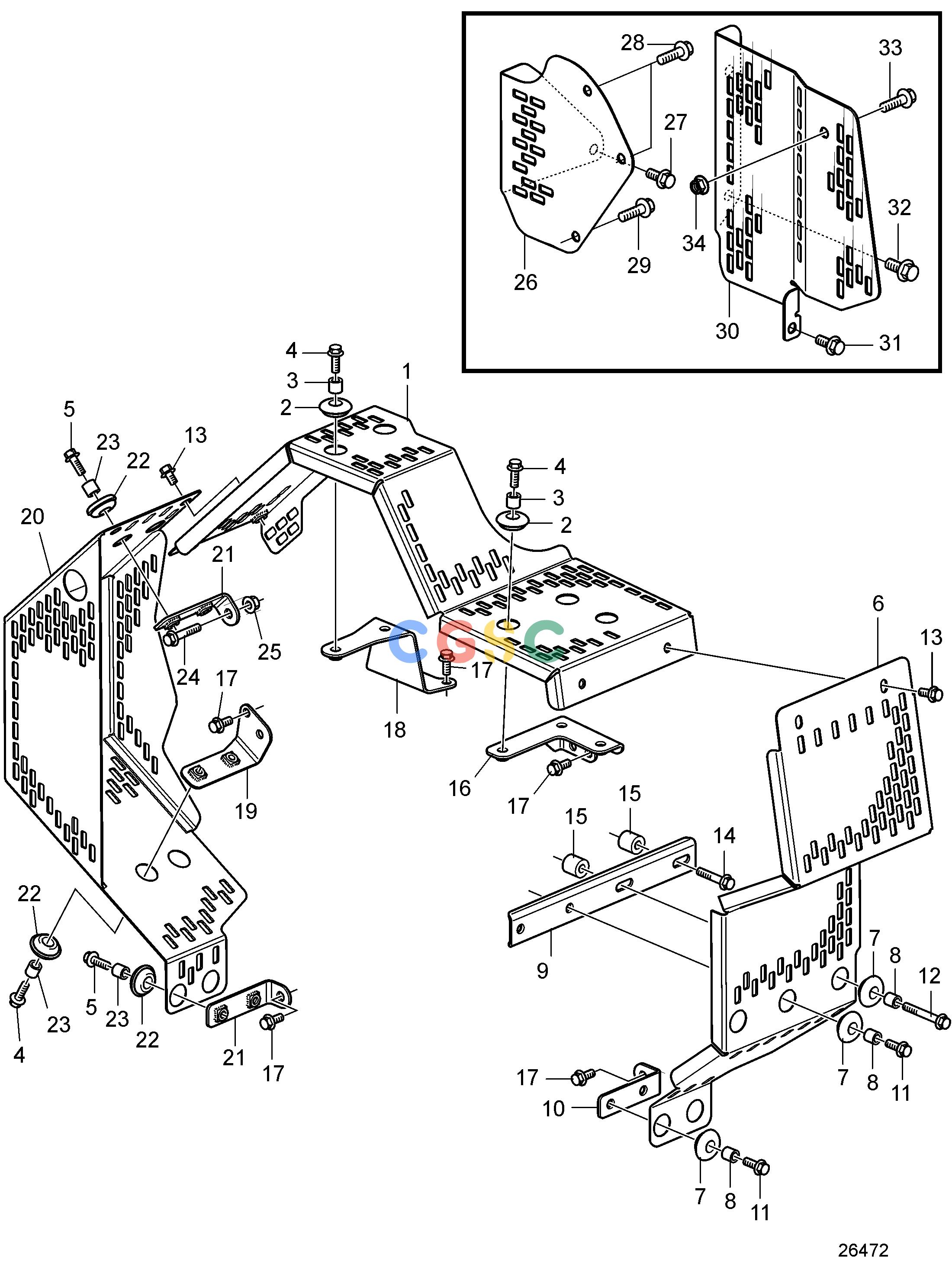

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemBelt Guard,RCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21554082
|
[1] |
Protecting screen
|
|
| 2. |
3883499
|
[5] |
Rubber bushing
|
|
| 3. |
3830336
|
[5] |
Spacer
|
|
| 4. |
984735
|
[9] |
Flange screw
|
|
| 5. |
984734
|
[4] |
Flange screw
|
|
| 6. |
21274472
|
[1] |
Protecting screen
|
|
| 7. |
3883499
|
[5] |
Rubber bushing
|
|
| 8. |
3830336
|
[5] |
Spacer
|
|
| 9. |
3819955
|
[1] |
Bracket
|
|
| 10. |
3828856
|
[1] |
Bracket
|
|
| 11. |
984734
|
[4] |
Flange screw
|
|
| 12. |
994386
|
[1] |
Flange screw
|
|
| 13. |
984732
|
[4] |
Flange screw
|
|
| 14. |
984738
|
[2] |
Flange screw
|
|
| 15. |
826652
|
[2] |
Spacer sleeve
|
|
| 16. |
|
|
|
|
| 17. |
984733
|
[7] |
Flange screw
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
21554207
|
[1] |
Protecting screen
|
|
| 21. |
3828856
|
[2] |
Bracket
|
|
| 22. |
3883499
|
[6] |
Rubber bushing
|
|
| 23. |
3830336
|
[6] |
Spacer
|
|
| 24. |
984738
|
[1] |
Flange screw
|
|
| 25. |
990950
|
[1] |
Flange lock nut
|
|
| 26. |
21565391
|
[1] |
Protecting screen
|
|
| 27. |
984752
|
[1] |
Flange screw
|
|
| 28. |
994372
|
[2] |
Flange screw
|
|
| 29. |
947542
|
[1] |
Flange screw
|
|
| 30. |
21809827
|
[1] |
Protecting screen
|
|
| 31. |
984733
|
[1] |
Flange screw
|
|
| 32. |
984752
|
[2] |
Flange screw
|
|
| 33. |
984736
|
[1] |
Flange screw
|
|
| 34. |
990940
|
[1] |
Flange nut
|
|
