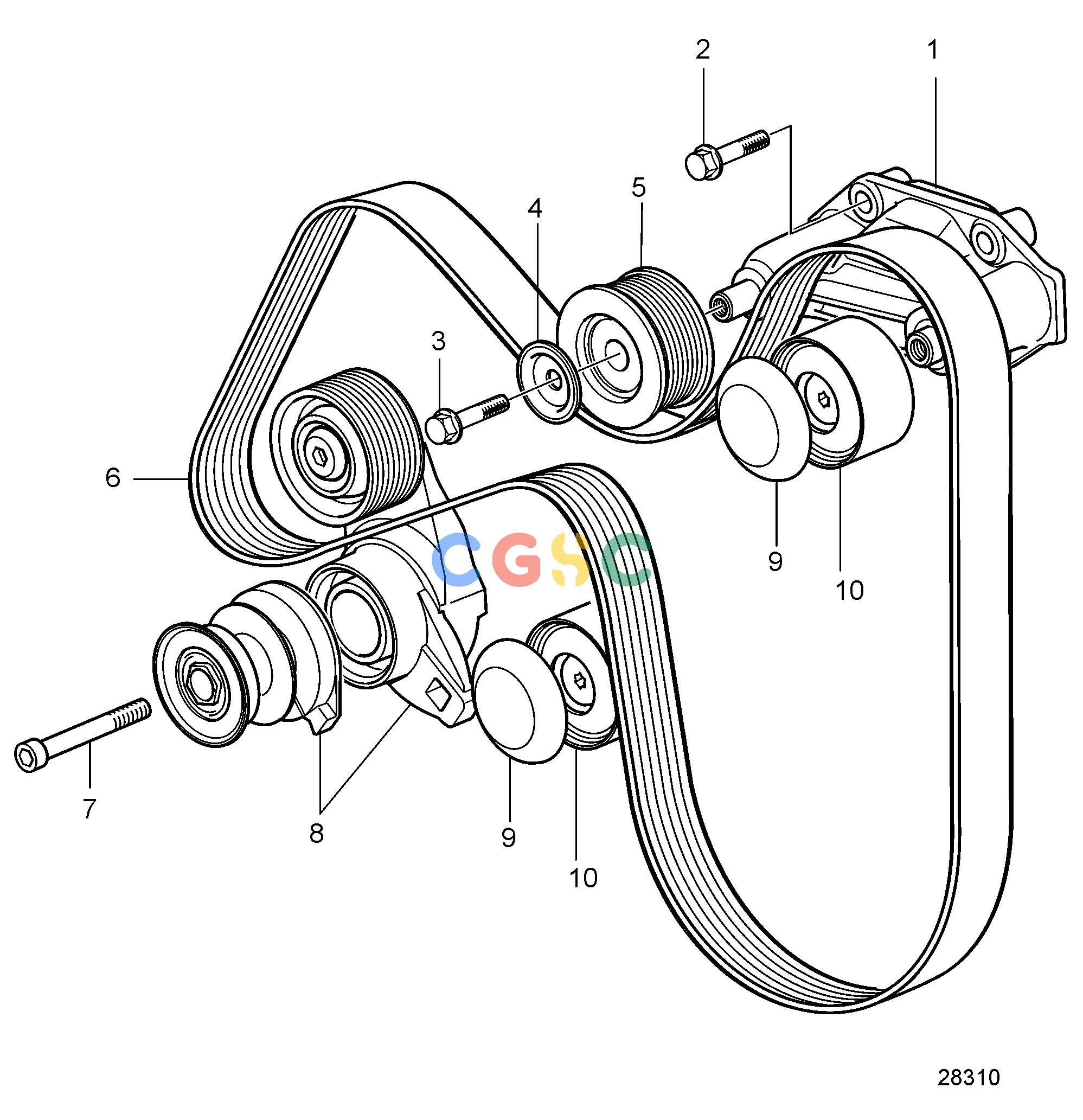

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemBelt Transmission and Belt Tensioner DeviceEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
991 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22722110
|
[1] |
Bracket
|
SN-2013665901
|
| 1. |
78466877
|
[1] |
Bracket
|
SN2013665902-
|
| 2. |
984755
|
[3] |
Flange screw
|
|
| 3. |
984756
|
[1] |
Flange screw
|
|
| 4. |
8097084
|
[1] |
Cover
|
|
| 5. |
20357382
|
[1] |
Idler pulley
|
|
| 6. |
995162
|
[1] |
V-ribbed belt
|
SN-2013665901 for engines with twin alternators
|
| 6. |
60113501
|
[1] |
V-ribbed belt
|
SN2013665902- for engines witg singel alternator
|
| 6. |
21457868
|
[1] |
V-ribbed belt
|
SN-2013665901 for engines with singel alternator
|
| 7. |
959249
|
[1] |
Hex. socket screw
|
|
| 8. |
21631484
|
[1] |
Belt tensioner
|
|
| 9. |
21717627
|
[1] |
Dust cover
|
|
| 10. |
21676635
|
[2] |
Idler pulley
|
|
