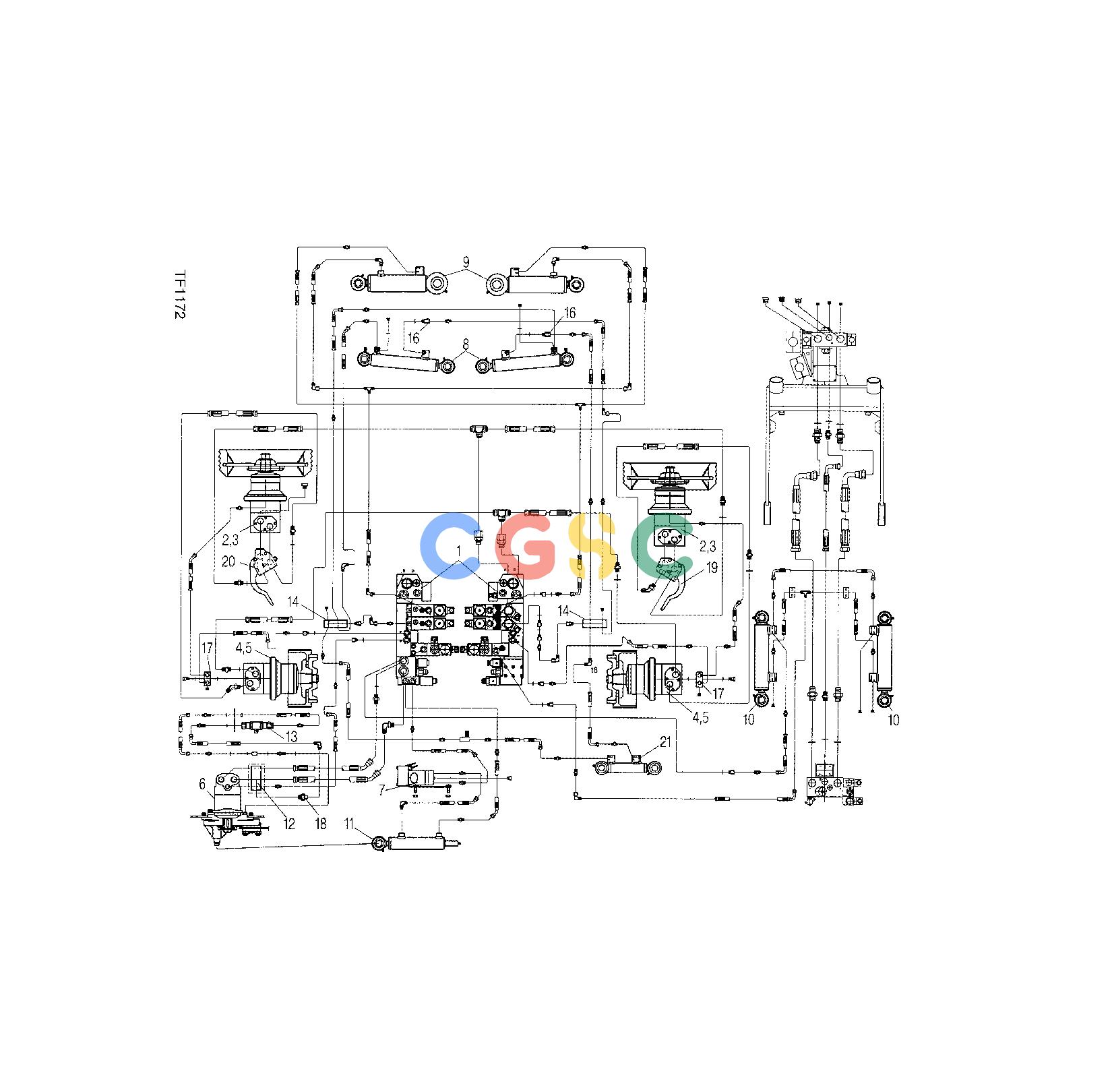

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F045006 11 16.1 TF1172 [TF1172]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F054233
|
[1] |
BLOCK
|
|
| 2. |
F047830
|
[2] |
Hydraulic Motor
|
|
| 3. |
F047831
|
[2] |
Hydraulic Motor
|
|
| 4. |
F047832
|
[2] |
Hydraulic Motor
|
|
| 5. |
F047833
|
[2] |
Hydraulic Motor
|
|
| 6. |
F005473
|
[1] |
Hydraulic Motor
|
|
| 7. |
F047834
|
[1] |
Hydraulic Motor
|
|
| 8. |
F047835
|
[2] |
Hydraulic Cylinder
|
|
| 9. |
F053048
|
[2] |
Hydraulic Cylinder
|
|
| 10. |
F047837
|
[2] |
Hydraulic Cylinder
|
|
| 11. |
F047693
|
[2] |
Hydraulic Cylinder
|
|
| 12. |
F031950
|
[1] |
VALVE BLOCK
|
|
| 13. |
F047838
|
[1] |
LUBRIC. DEVICE
|
|
| |
F002938
|
[1] |
Oil Pump
|
|
| |
F030032
|
[1] |
Oil Pump
|
|
| 14. |
F047839
|
[2] |
CONNECTING PIECE
|
|
| 16. |
F047841
|
[2] |
CONNECTION
|
|
| 17. |
F054235
|
[2] |
BLOCK
|
|
| 18. |
F022105
|
[1] |
Valve
|
|
| 19. |
F054230
|
[1] |
CONNECTING PLATE
|
|
| |
F003235
|
[2] |
O-Ring
|
|
| |
F002911
|
[4] |
Screw
|
|
| 20. |
F054231
|
[1] |
CONNECTING PLATE
|
|
| |
F003235
|
[2] |
O-Ring
|
|
| |
F002911
|
[4] |
Screw
|
|
| |
F005570
|
[1] |
Plug
|
|
| 21. |
F047970
|
[1] |
Hydraulic Cylinder
|
|
| 21. |
F055836
|
[1] |
Hydraulic Cylinder
|
|
