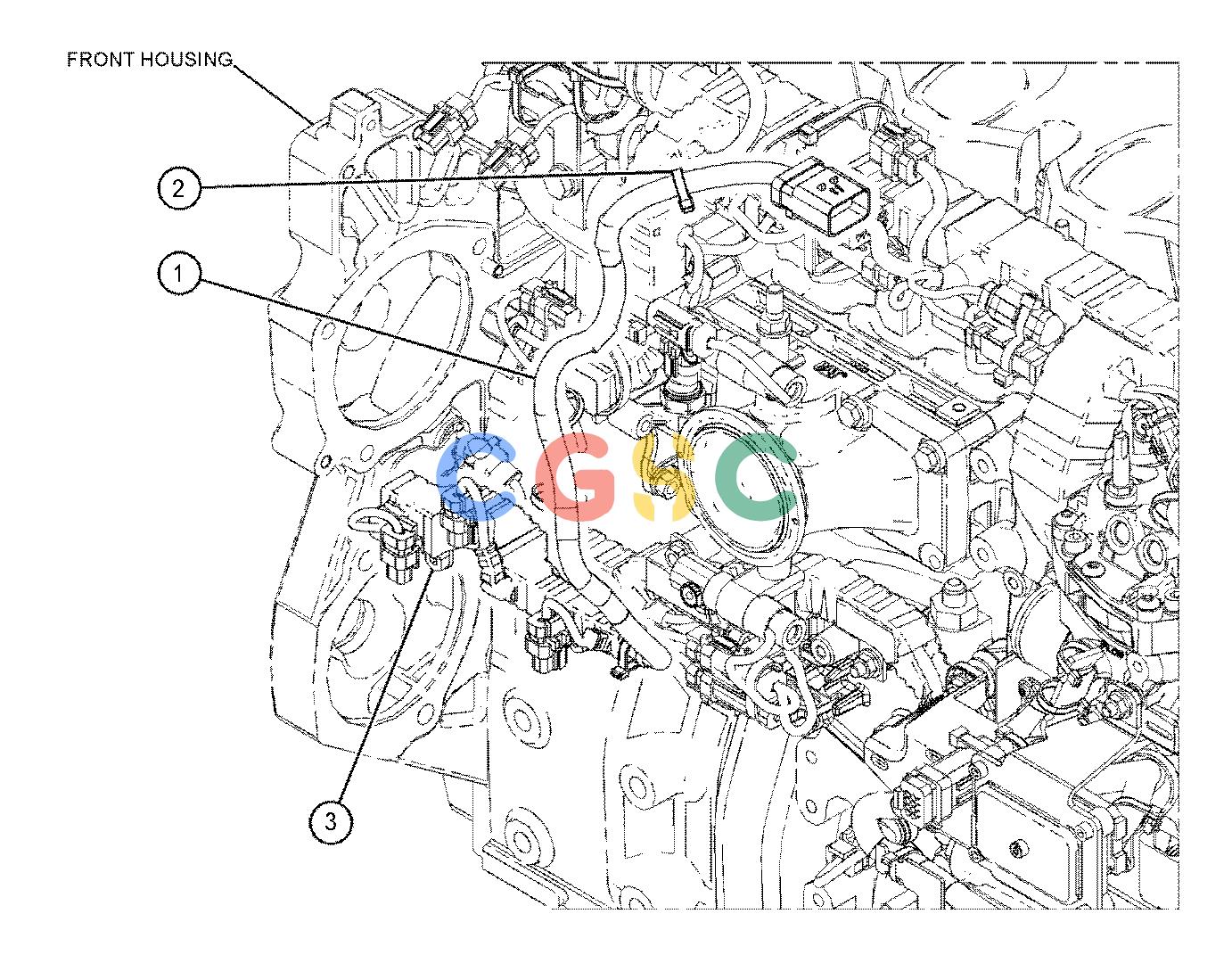

卡特零件查询（725C） 424-5545: HARNESS AS-CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 274-3775 | [1] | CAP-CONNECTOR | |
| | 180-9214 | [1] | NUT(1-11/16-18-THD) | |
| | 213-0139 | [4] | PIN(4-MM) | |
| | 7T-0093 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3401 | [1] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [1] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 177-9656 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [9] | PLUG-SEAL | |
| | 169-0705 | [6] | SEAL | |
| | 8T-8730 | [7] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [8] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 3T-4692 | [1] | TERMINAL-RING(6-GA, 7/16-IN SCREW) | |
| | | | -OR- |
| | 3T-4693 | [1] | TERMINAL-RING(8-GA, 7/16-IN SCREW) | |
