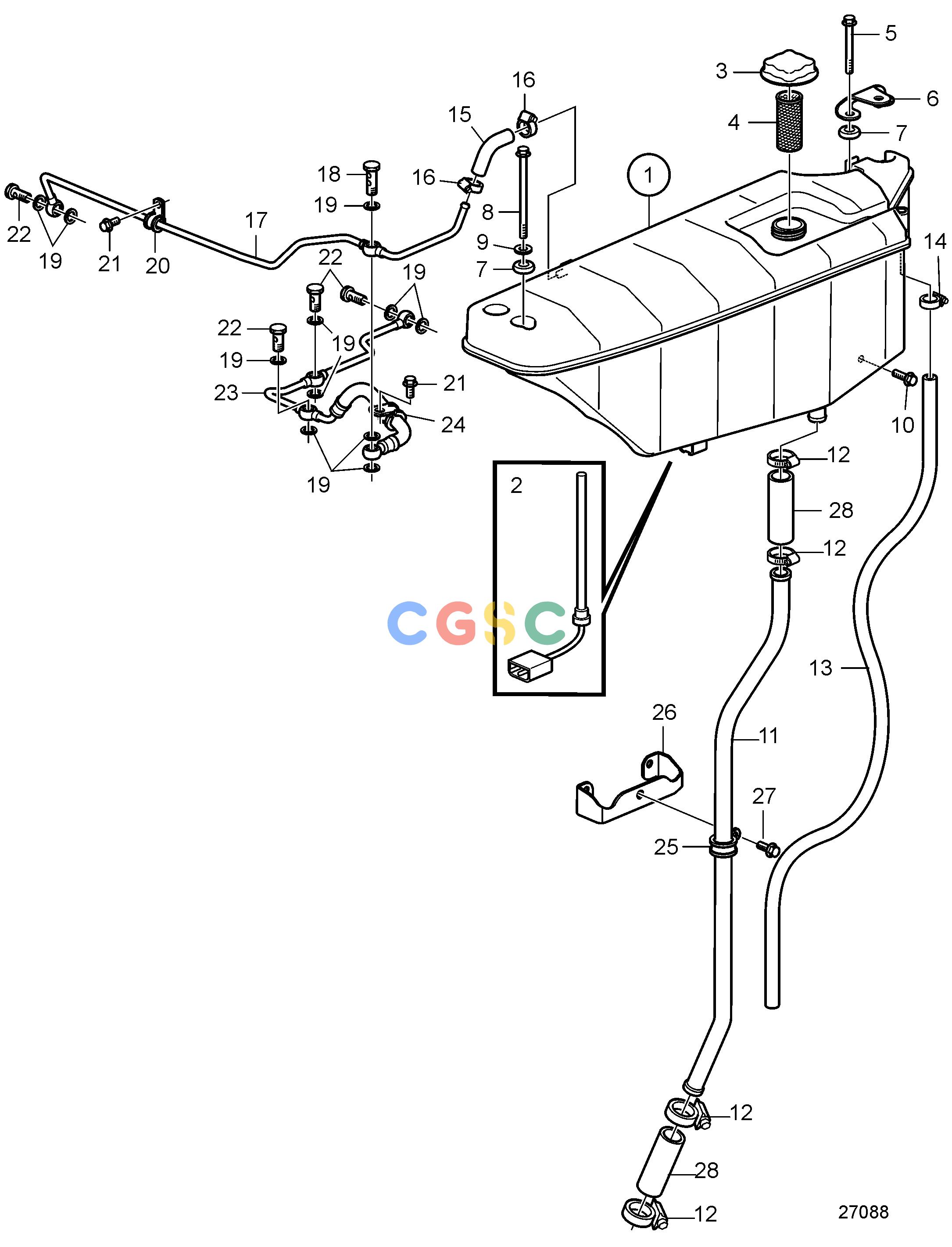

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemExpansin Tank HE,CC SN-1013430398EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3885197
|
[1] |
Expansion tank
|
Replaced by 21505289
|
| 1. |
21505289
|
[1] |
Expansion tank
|
Replaced by 21920925
|
| 1. |
21920925
|
[1] |
Expansion tank
|
Conversion kit 21989777 is needed
|
| 2. |
3588990
|
[1] |
Level sensor
|
Replaced by 21505289
|
| 2. |
21416784
|
[1] |
Level sensor
|
Included in expansionstank 21505289
|
| 2. |
21872119
|
[1] |
Level sensor
|
Conversion kit 21989777 is needed
|
| 3. |
1674083
|
[1] |
Pressure cap
|
|
| 4. |
21366063
|
[1] |
Pipe
|
|
| 5. |
984741
|
[2] |
Flange screw
|
|
| 6. |
21167108
|
[1] |
Bracket, cover
|
|
| 7. |
3285120
|
[4] |
Spacer sleeve
|
|
| 8. |
984746
|
[2] |
Flange screw
|
|
| 9. |
976944
|
[2] |
Washer
|
|
| 10. |
984734
|
[1] |
Flange screw
|
|
| 11. |
21582132
|
[1] |
Coolant pipe
|
|
| 12. |
994559
|
[2] |
Hose clamp
|
|
| 13. |
979652
|
[1] |
Hose
|
L=1100mm
|
| 14. |
961663
|
[1] |
Hose clamp
|
|
| 15. |
943367
|
[1] |
Rubber hose
|
L=80mm
|
| 16. |
961663
|
[2] |
Hose clamp
|
|
| 17. |
21505623
|
[1] |
Air vent pipe
|
|
| 18. |
947975
|
[1] |
Hollow screw
|
|
| 19. |
11994
|
[11] |
Gasket
|
|
| 20. |
942400
|
[1] |
Clamp
|
|
| 21. |
984733
|
[2] |
Flange screw
|
|
| 22. |
969299
|
[4] |
Hollow screw
|
|
| 23. |
21139808
|
[1] |
Air vent pipe
|
|
| 24. |
949747
|
[1] |
Clamp
|
|
| 25. |
1545432
|
[1] |
Attaching clamp
|
|
| 26. |
21582142
|
[1] |
Bracket
|
|
| 27. |
984733
|
[1] |
Flange screw
|
|
| 28. |
943369
|
[1] |
Rubber hose
|
L=75mm
|
