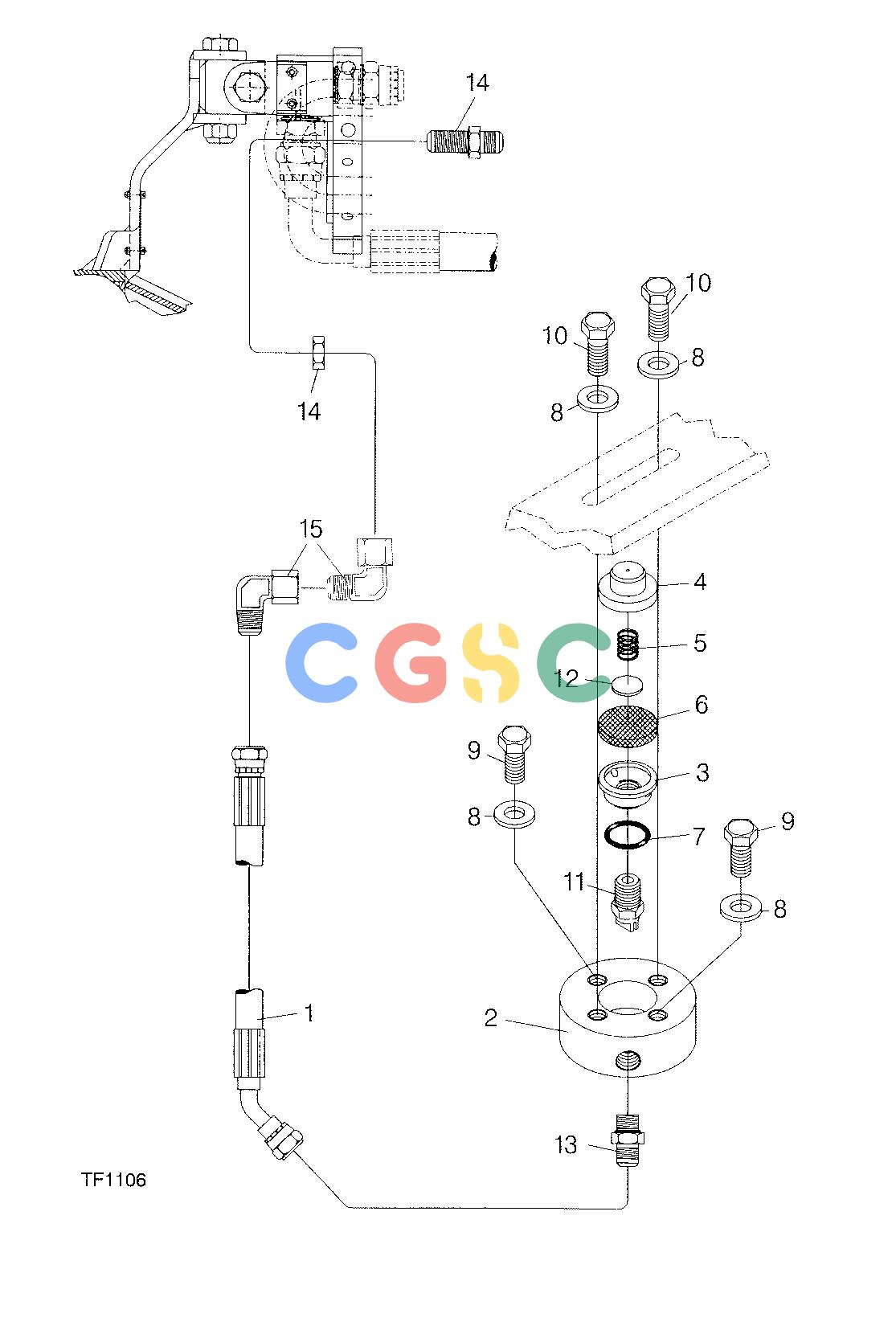

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE UREA ASSY F045006 11 74 TF1106 [TF1106]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
253 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F052810
|
[1] |
EQUIPMENTS
|
|
| 1. |
F054522
|
[1] |
HOSE-ASSY
|
|
| 2. |
F052811
|
[1] |
Housing
|
|
| 3. |
F052812
|
[1] |
Clamp
|
|
| 4. |
F052806
|
[1] |
Housing
|
|
| 5. |
F052807
|
[1] |
Spring
|
|
| 6. |
F052808
|
[1] |
RUBBER BELLOW
|
|
| 7. |
F052804
|
[1] |
O-Ring
|
|
| 8. |
F052805
|
[4] |
Plate
|
|
| 9. |
F003531
|
[2] |
Screw
|
|
| 10. |
F003536
|
[2] |
Screw
|
|
| 11. |
F052802
|
[1] |
Nozzle
|
|
| 12. |
F052803
|
[1] |
Plate
|
|
| 13. |
F005057
|
[1] |
NIPPLE
|
|
| 14. |
F024601
|
[1] |
NIPPLE
|
|
| 15. |
F022417
|
[2] |
ELBOW NIPPLE
|
|
