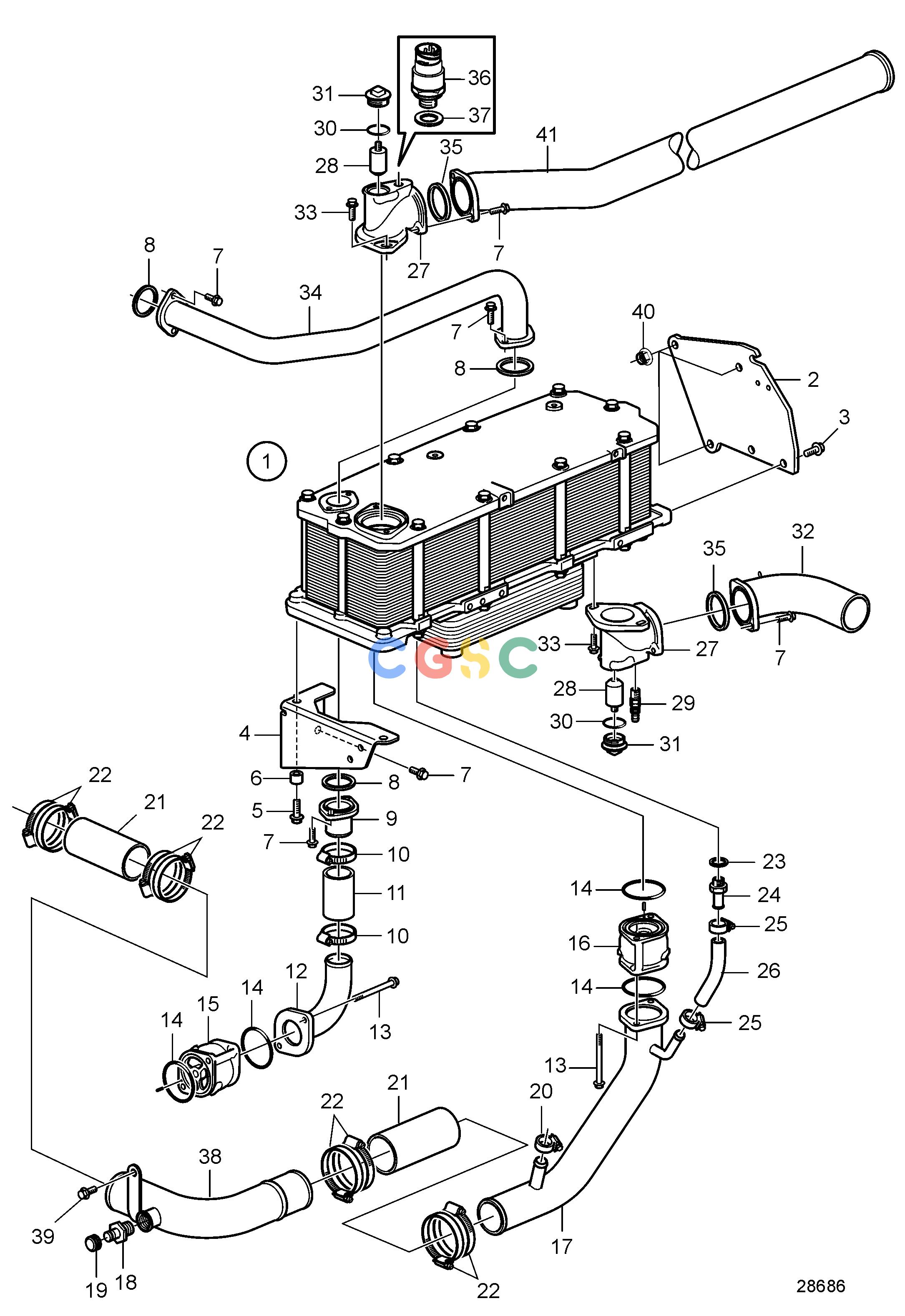

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemHeat Exchanger with Installation Parts. HE. For dry exhaustEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
887 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21404010
|
[1] |
Heat exchanger
|
|
| 2. |
3889790
|
[1] |
Bracket
|
|
| 3. |
984753
|
[3] |
Flange screw
|
|
| 4. |
3889774
|
[1] |
Bracket
|
|
| 5. |
984756
|
[2] |
Flange screw
|
|
| 6. |
843028
|
[2] |
Spacer sleeve
|
|
| 7. |
984734
|
[11] |
Flange screw
|
|
| 8. |
864491
|
[3] |
Gasket
|
|
| 9. |
3826300
|
[1] |
Tube
|
|
| 10. |
961670
|
[2] |
Hose clamp
|
|
| 11. |
967813
|
[1] |
Rubber hose
|
|
| 12. |
21247896
|
[1] |
Water pipe
|
|
| 13. |
984743
|
[4] |
Flange screw
|
|
| 14. |
975675
|
[4] |
O-ring
|
|
| 15. |
21331356
|
[1] |
Overflow valve
|
|
| 16. |
21331358
|
[1] |
Overflow valve
|
|
| 17. |
21581591
|
[1] |
Water pipe
|
|
| 18. |
1676622
|
[1] |
Nipple
|
|
| 19. |
476279
|
[1] |
Protecting cap
|
|
| 20. |
961666
|
[1] |
Hose clamp
|
|
| 21. |
949540
|
[1] |
Hose
|
L=150mm
|
| 22. |
961673
|
[8] |
Hose clamp
|
|
| 23. |
976931
|
[1] |
Gasket
|
|
| 24. |
966863
|
[1] |
Hose nipple
|
|
| 25. |
961665
|
[2] |
Hose clamp
|
|
| 26. |
946652
|
[1] |
Rubber hose
|
L=120mm
|
| 27. |
21262909
|
[2] |
Pipe connection
|
|
| 28. |
823661
|
[2] |
Zinc anode
|
|
| 29. |
949918
|
[1] |
Shut-off cock
|
|
| 30. |
925064
|
[2] |
O-ring
|
|
| 31. |
823662
|
[2] |
Plug
|
|
| 32. |
21553881
|
[2] |
Pipe elbow
|
|
| 33. |
984735
|
[4] |
Flange screw
|
|
| 34. |
3889475
|
[1] |
Water pipe
|
|
| 35. |
843584
|
[2] |
Gasket
|
|
| 36. |
47702050_098
|
|
Pressure sensor
|
|
| 37. |
968559
|
[1] |
O-ring
|
|
| 38. |
21471533
|
[1] |
Water pipe
|
|
| 39. |
984733
|
[1] |
Flange screw
|
|
| 40. |
990942
|
[3] |
Flange nut
|
|
| 41. |
22554116
|
[1] |
Sea-water pipe
|
|
