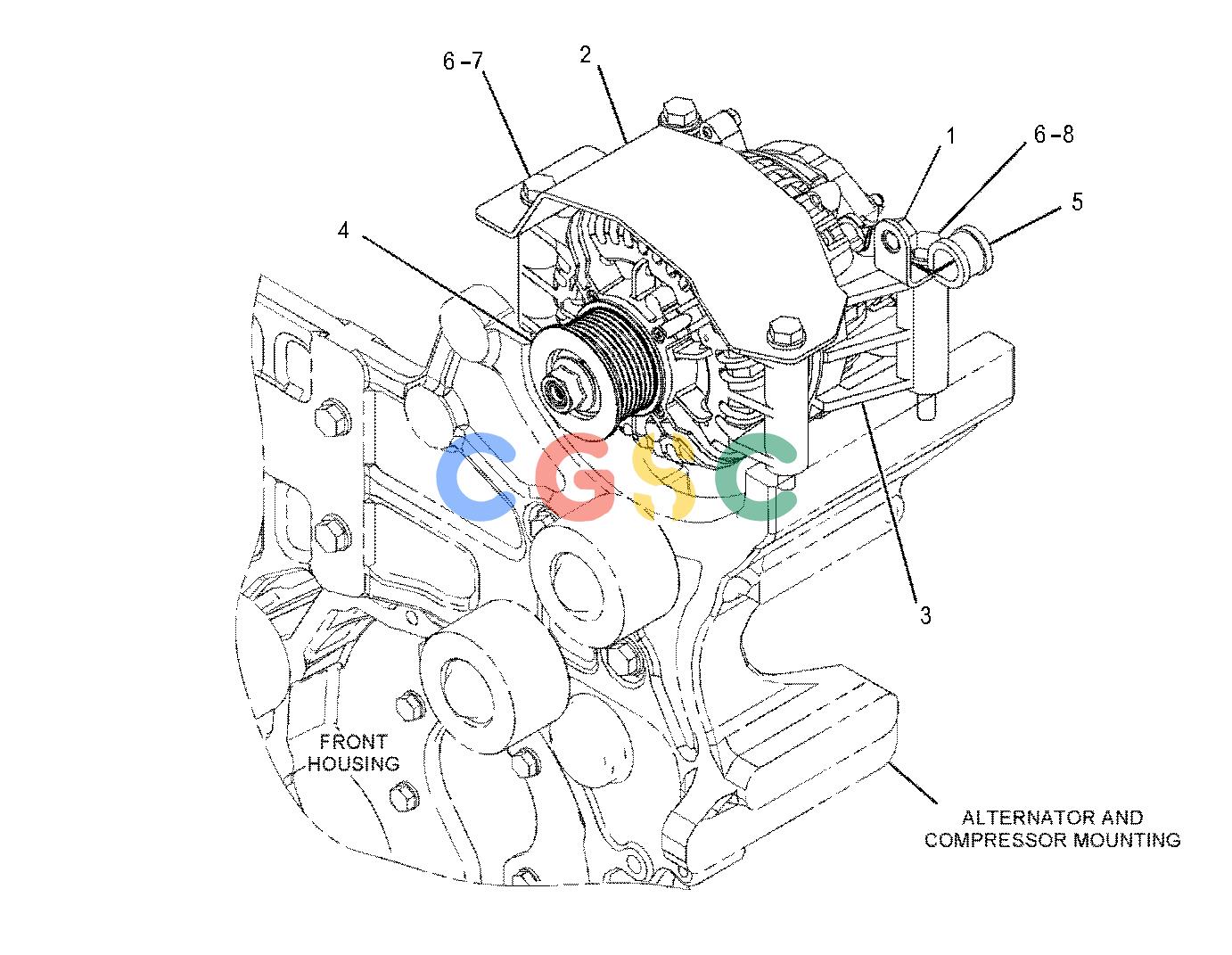

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 124-3019 | [1] | BRACKET AS | |
| 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | ||
| 2. | 337-5127 | [1] | SHIELD | |
| 3. | 352-4700 | [1] | ALTERNATOR GP-CHARGING(24-VOLT, 145-AMPERE) | |
| 4. | 418-4587 | [1] | PULLEY(8-GROOVE) | |
| 5. | 332-0013 | [1] | CLIP(LOOP) | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4198M | [3] | BOLT(M10X1.5X100-MM) | |
| 8. | 8T-6685M | [1] | BOLT(M10X1.5X110-MM) | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
