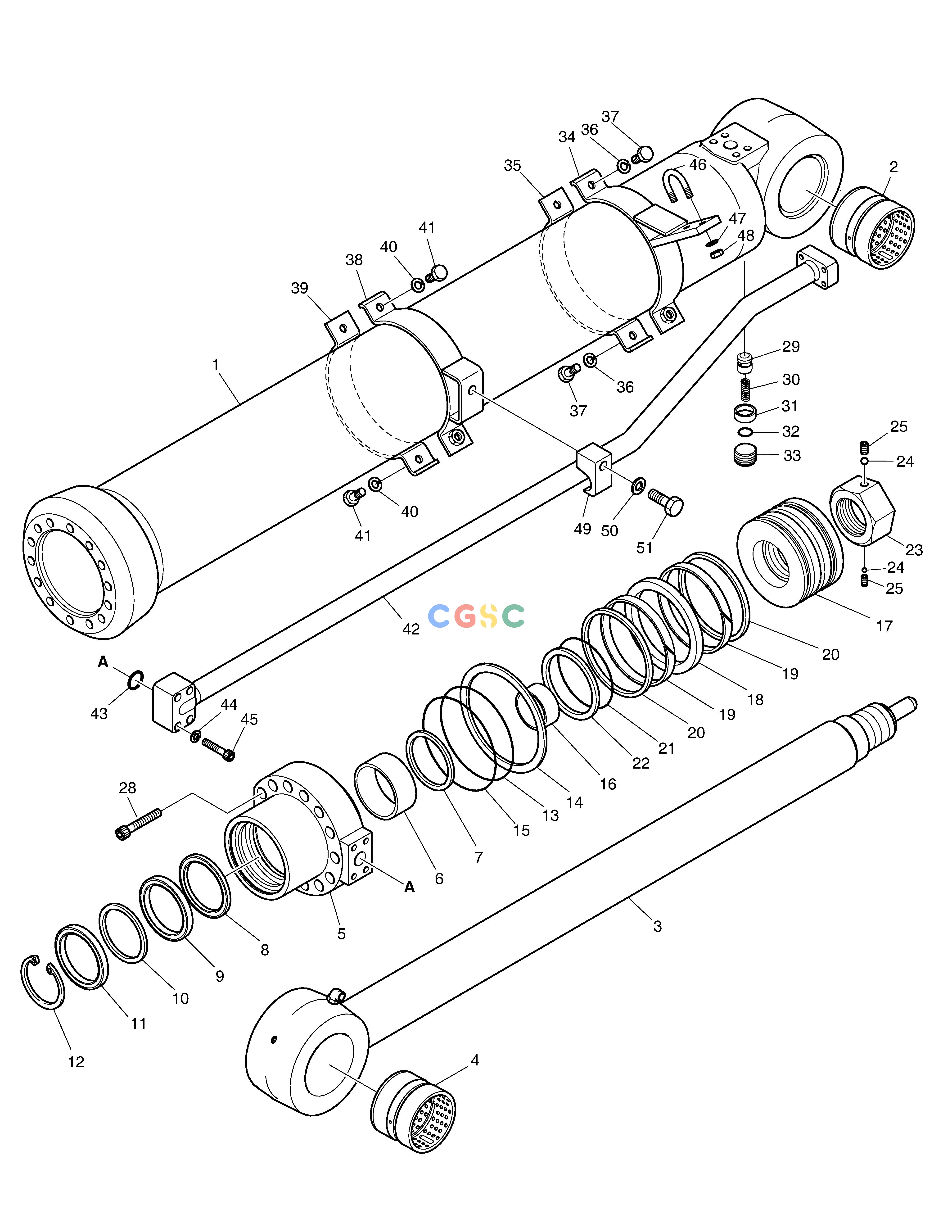

斗山零件查询ARM CYLINDER DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 158 次

Pos.	Part No	Qty	Parts name
.	401107-00757	[1]
-.	400305-00029E	[1]
1.	420402-00214A	[1]
10.	111102-00133	[1]
11.	1.180-00501	[1]	WIPER;DUST
12.	115-00108	[1]	RING;RETAINING
13.	S8011601	[1]	O-RING
14.	K9001953	[1]	RING;BACK UP
15.	2180-1216D150	[1]	O-RING
16.	K2002084	[1]	RING;CUSHION
17.	130602-00347	[1]
18.	K9002277	[1]	SEAL;SLIPPER
19.	115-00112	[2]	RING;WEAR
2.	131004-00139	[1]
20.	401003-00314	[2]
21.	S8011101	[1]	O-RING
22.	111102-00016	[2]
23.	120312-00477	[1]
24.	110202-00014	[2]
25.	S3526408	[2]
28.	S2228261	[14]	BOLT;SOCKET
29.	1.420-00047	[1]
3.	400337-00313A	[1]
30.	129-00071	[1]	SPRING
31.	1.195-00022	[1]	SUPPORT;SPRING
32.	S8000141	[1]	O-RING
33.	430221-00136	[1]	PLUG
34.	110902-00075	[1]
35.	124-00129	[1]	BAND;PIPE
36.	S5100703	[2]	WASHER;SPRING
37.	S0560563	[2]	BOLT
38.	K9002281	[1]	PIPE BAND ASS'Y-R
39.	124-00129	[1]	BAND;PIPE
4.	131004-00139	[1]
40.	S5100703	[2]	WASHER;SPRING
41.	S0560563	[2]	BOLT
42.	420210-00691	[1]
43.	S8000341	[1]	O-RING
44.	S5100703	[4]	WASHER;SPRING
45.	S2215561	[4]	BOLT;SOCKET
46.	K9001158	[1]	U-BOLT
47.	S5100603	[2]	WASHER
48.	S4012633	[2]	NUT
49.	K9001159	[1]	CLAMP;PIPE
5.	110508-18459	[1]
50.	S5102903	[1]	WASHER
51.	S0521853	[1]	BOLT
6.	1.110-00072	[1]	DD-BUSH
7.	1.115-00056	[1]	RING;RETAINING
8.	K9002080	[1]	SEAL;BUFFER
9.	K9002081	[1]	PACKING;U
