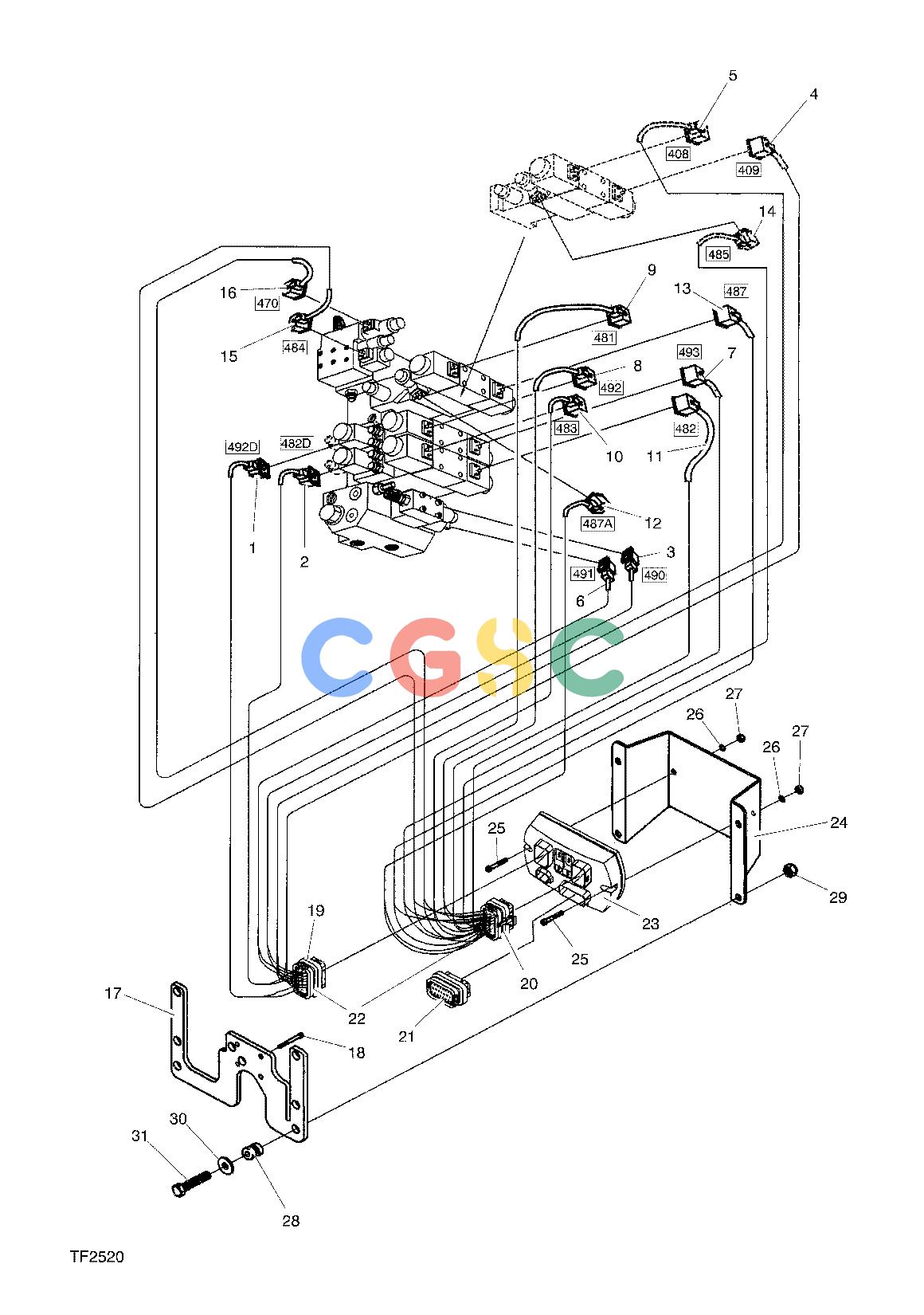

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE ELECTRICAL MOUNTING, TM10 F045006 11 62.5 TF2520 [TF2520]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
537 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F062849
|
[1] |
Cable
|
|
| 2. |
F062850
|
[1] |
Cable
|
|
| 3. |
F062851
|
[1] |
Cable
|
|
| 4. |
F062852
|
[1] |
Cable
|
|
| 5. |
F062853
|
[1] |
Cable
|
|
| 6. |
F062854
|
[1] |
Cable
|
|
| 7. |
F062855
|
[1] |
Cable
|
|
| 8. |
F062856
|
[1] |
Cable
|
|
| 9. |
F062857
|
[1] |
Cable
|
|
| 10. |
F062858
|
[1] |
Cable
|
|
| 11. |
F062859
|
[1] |
Cable
|
|
| 12. |
F062860
|
[1] |
Cable
|
|
| 13. |
F062861
|
[1] |
Cable
|
|
| 14. |
F062862
|
[1] |
Cable
|
|
| 15. |
F062863
|
[1] |
Cable
|
|
| 16. |
F062864
|
[1] |
Cable
|
|
| 17. |
F047678
|
[1] |
FASTENING PLATE
|
|
| 18A. |
F010706
|
[4] |
Cap Screw
|
|
| 18B. |
19M8674
|
[4] |
Cap Screw
|
|
| 19. |
F054940
|
[1] |
Connector
|
|
| 20. |
F054941
|
[1] |
Connector
|
|
| 21. |
F053324
|
[1] |
Connector
|
|
| 22. |
F053303
|
[47] |
Terminal
|
|
| 23. |
F056541
|
[1] |
HARVESTER HEAD MODULE
|
|
| 24. |
F062866
|
[1] |
Bracket
|
|
| 25. |
F003404
|
[2] |
Cap Screw
|
|
| 26. |
F003337
|
[2] |
Washer
|
|
| 27. |
F003586
|
[2] |
Lock Nut
|
|
| 28. |
F039343
|
[4] |
Grommet
|
|
| 29. |
F003587
|
[4] |
Lock Nut
|
|
| 30. |
F003338
|
[4] |
Washer
|
|
| 31. |
F003526
|
[4] |
Screw
|
|
