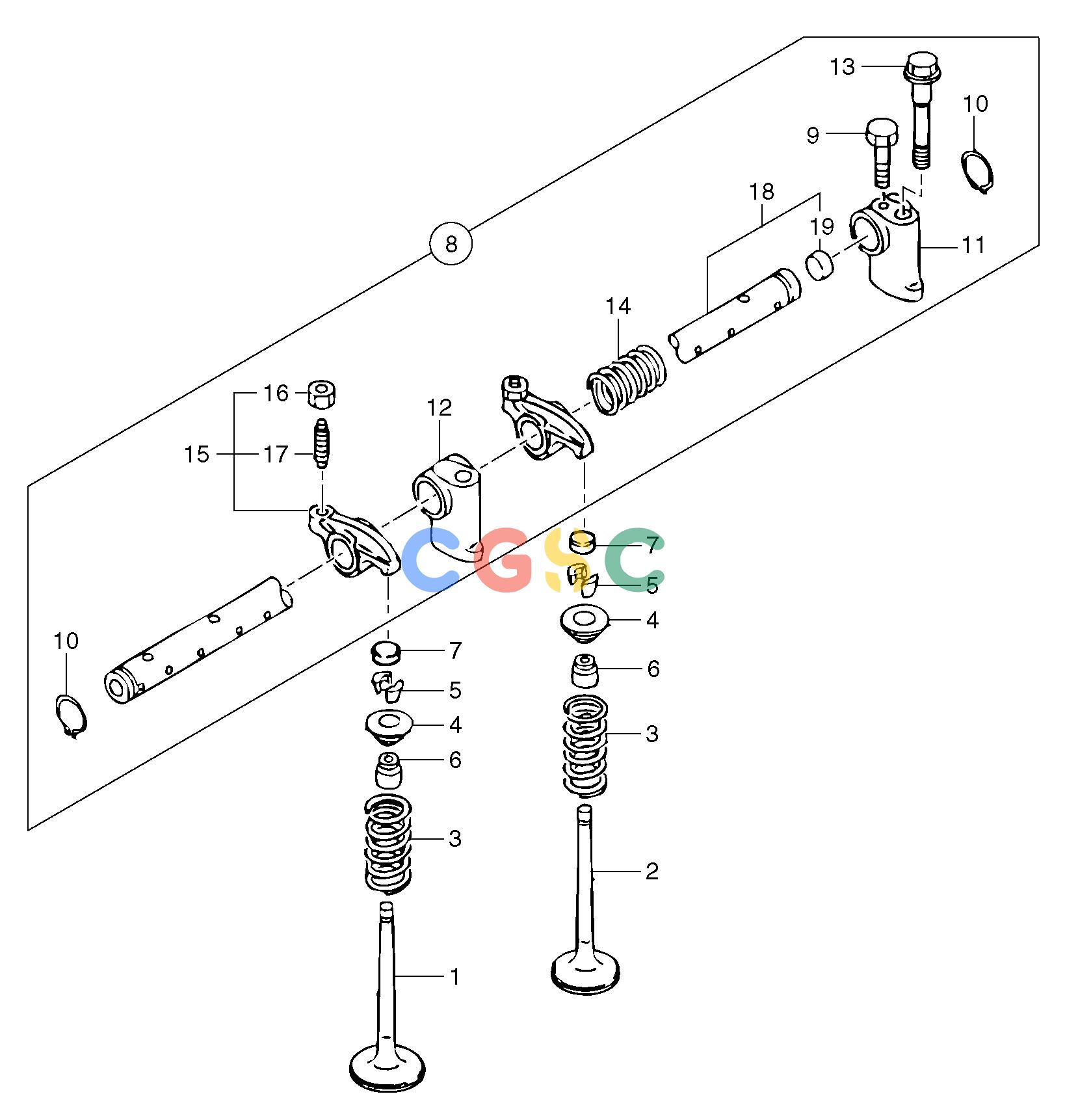

沃尔沃零件查询EC35 Rocker arm shaftTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15107655
|
[4] |
Exhaust Valve
|
|
| 2. |
PJ7415452
|
[4] |
Inlet valve
|
|
| 3. |
PJ7417813
|
[8] |
Spring
|
|
| 4. |
PJ7410655
|
[8] |
Washer
|
|
| 5. |
PJ7410056
|
[16] |
Stop
|
|
| 6. |
PJ7414430
|
[8] |
Seal
|
|
| 7. |
PJ7414924
|
[8] |
Cap
|
|
| 8. |
PJ7417847
|
[1] |
Rocker Arm Shaft
|
|
| 9. |
PJ7415318
|
[1] |
Screw
|
|
| 10. |
PJ7410135
|
[2] |
Snap Ring
|
|
| 11. |
PJ7416725
|
[1] |
Support
|
|
| 12. |
PJ7416726
|
[3] |
Support
|
|
| 13. |
PJ7415546
|
[4] |
Bolt
|
|
| 14. |
PJ7415545
|
[3] |
Spring
|
|
| 15. |
PJ7417814
|
[8] |
Rocker Arm
|
|
| 16. |
PJ7415320
|
[8] |
Nut
|
|
| 17. |
PJ7415541
|
[8] |
Screw with pin
|
|
| 18. |
PJ7416724
|
[1] |
Rocker Arm Shaft
|
|
| 19. |
PJ7415331
|
[2] |
Plug
|
|
