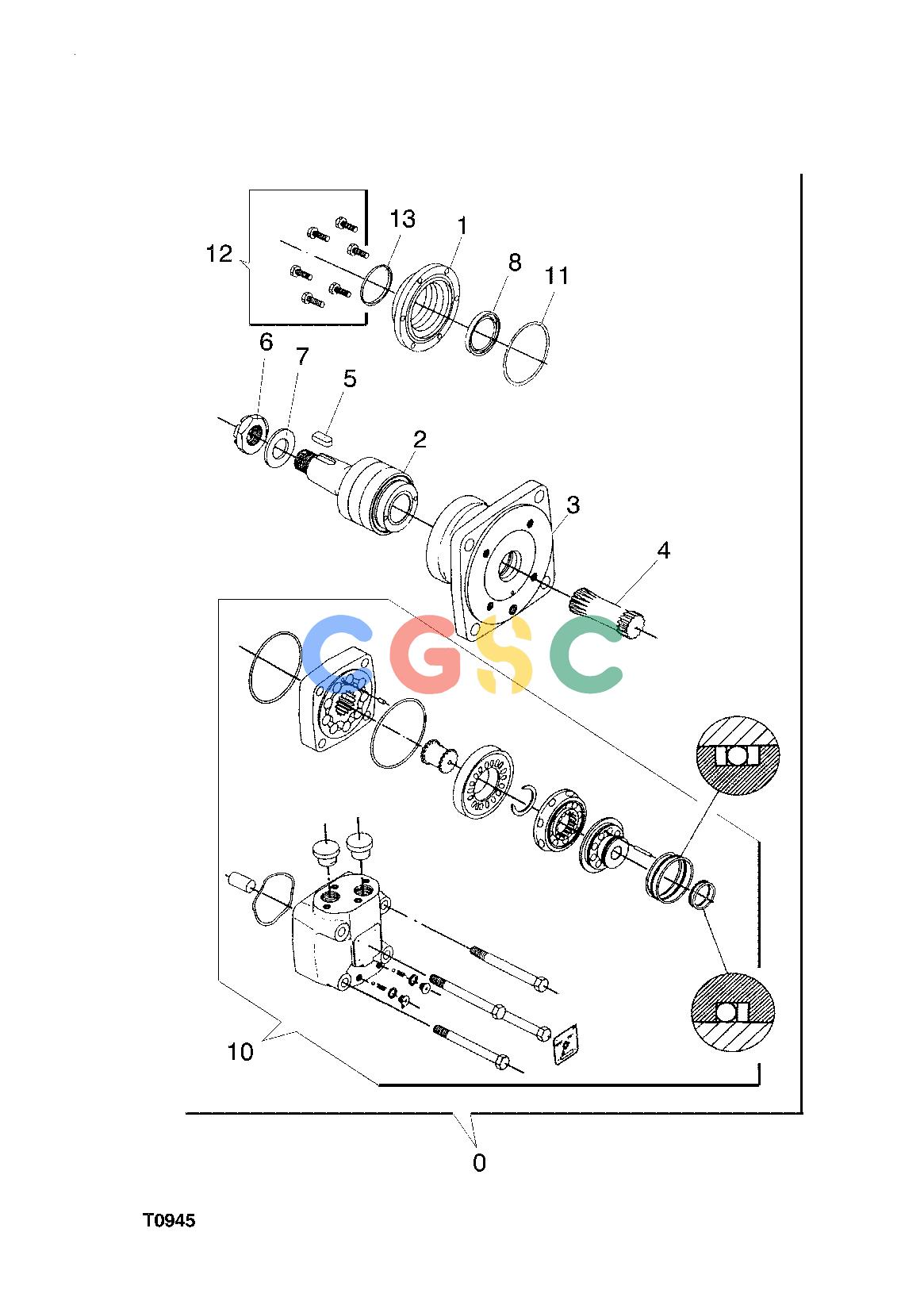

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR, FEED ROLLERS F045006 11 34 T0945 [T0945]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
942 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
F047830
|
[2] |
Hydraulic Motor
|
|
| 0. |
F047831
|
[2] |
Hydraulic Motor
|
|
| 0. |
F047832
|
[2] |
Hydraulic Motor
|
|
| 0. |
F047833
|
[2] |
Hydraulic Motor
|
|
| 0. |
F060994
|
[2] |
Hydraulic Motor
|
|
| 1. |
F008548
|
[1] |
Cover
|
|
| 1. |
F024791
|
[1] |
Cap
|
|
| 2. |
F052778
|
[1] |
SHAFT ASSY
|
|
| 2. |
F024792
|
[1] |
Shaft
|
|
| 3. |
F047858
|
[1] |
Housing
|
|
| 3. |
F062350
|
[1] |
Housing
|
|
| 4. |
F047859
|
[1] |
Shaft
|
|
| 4. |
F047860
|
[1] |
Shaft
|
|
| 4. |
F035364
|
[1] |
Shaft
|
|
| 4. |
F047861
|
[1] |
Shaft
|
|
| 4. |
F062351
|
[1] |
Drive Shaft
|
|
| 5. |
F054828
|
[1] |
Wedge
|
|
| 5. |
F024739
|
[1] |
Wedge
|
|
| 6. |
F024666
|
[1] |
CASTLE NUT
|
|
| 6. |
F024740
|
[1] |
Nut
|
|
| 7. |
F005540
|
[1] |
Washer
|
|
| 7. |
F024743
|
[1] |
Washer
|
|
| 8. |
F035357
|
[1] |
Seal
|
|
| 9. |
F047862
|
[1] |
Seal Kit
|
|
| 10. |
-------
|
[1] |
Housing
|
|
| 11. |
-------
|
[1] |
O-Ring
|
|
| 12. |
-------
|
[6] |
Screw
|
|
| 13. |
F035129
|
[1] |
Seal
|
|
