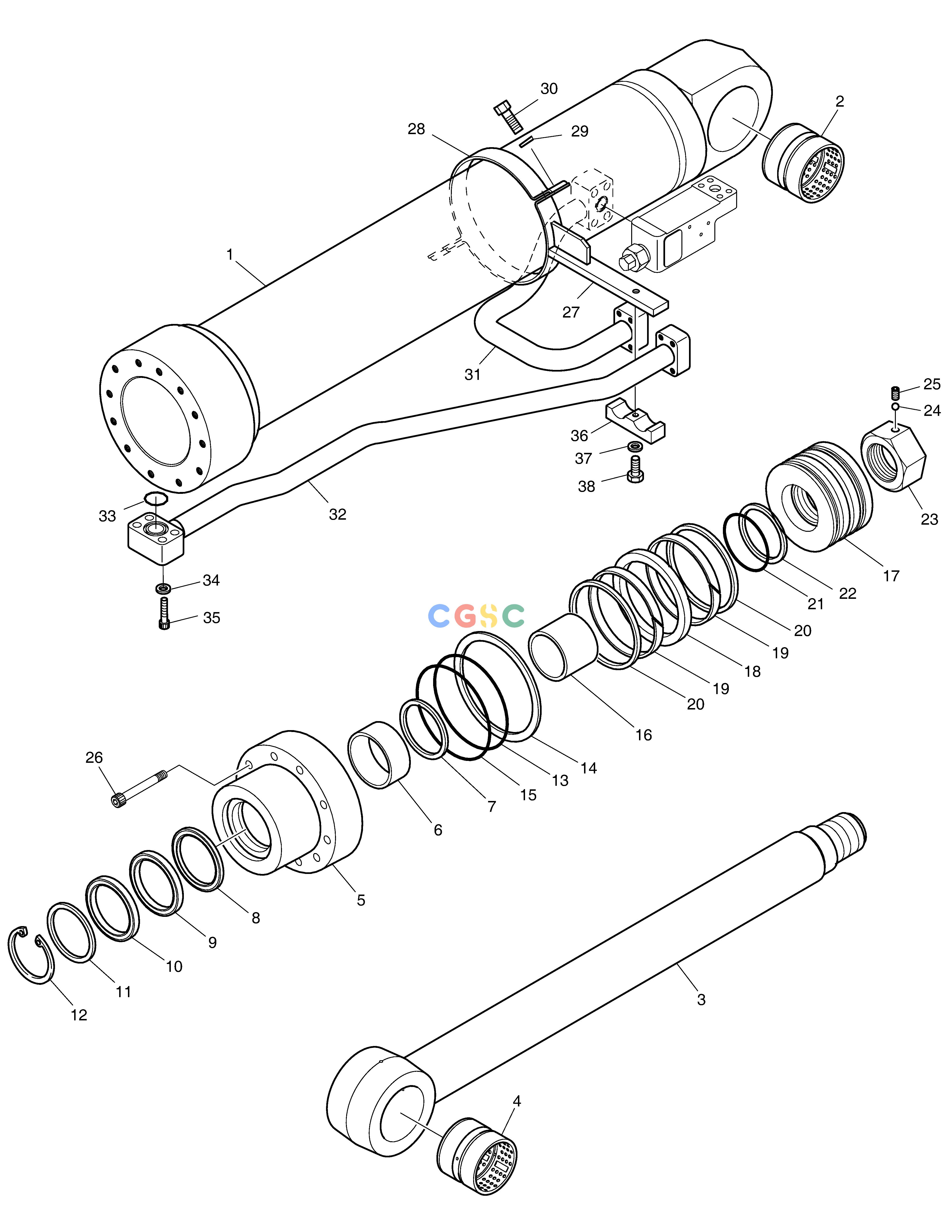

斗山零件查询BOOM CYLINDER(R.H)-LOCK VALVE DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
879 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-00584
|
[1] |
|
|
| -. |
400309-00047C
|
[1] |
|
|
| 1. |
420402-00213A
|
[1] |
|
|
| 10. |
111102-00135
|
[1] |
|
|
| 11. |
115-00077
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00078
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011451
|
[1] |
O-RING
|
|
| 14. |
K9001164
|
[1] |
RING;BACK UP
|
|
| 15. |
180-00363
|
[1] |
O-RING
|
|
| 16. |
K9002268
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-00246
|
[1] |
|
|
| 18. |
K9001166
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00121
|
[2] |
RING;WEAR
|
|
| 2. |
131004-00116
|
[1] |
|
|
| 20. |
401003-00316
|
[2] |
|
|
| 21. |
S8010901
|
[1] |
O-RING
|
|
| 22. |
K9001955
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00287
|
[1] |
|
|
| 24. |
110202-00014
|
[1] |
|
|
| 25. |
120706-00009
|
[1] |
|
|
| 26. |
S2225271
|
[14] |
BOLT;HEX SOCKET
|
|
| 27. |
1.124-00082
|
[1] |
PIPE BAND ASS'Y
|
|
| 28. |
124-00157
|
[1] |
BAND;PIPE
|
|
| 29. |
S5100603
|
[2] |
WASHER
|
|
| 3. |
400337-00312A
|
[1] |
|
|
| 30. |
S0558261
|
[2] |
BOLT;HEX
|
|
| 31. |
420210-00694
|
[1] |
|
|
| 32. |
420210-00689
|
[1] |
|
|
| 33. |
S8000341
|
[1] |
O-RING
|
|
| 34. |
S5100703
|
[4] |
WASHER;SPRING
|
|
| 35. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 36. |
124-00158
|
[1] |
CLAMP;PIPE
|
|
| 37. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 38. |
S0561053
|
[1] |
BOLT
|
|
| 4. |
131004-00151
|
[1] |
|
|
| 5. |
110508-07890
|
[1] |
|
|
| 6. |
110-00081
|
[1] |
DD-BUSH
|
|
| 7. |
115-00073
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001882
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001883
|
[1] |
U-PACKING
|
|
