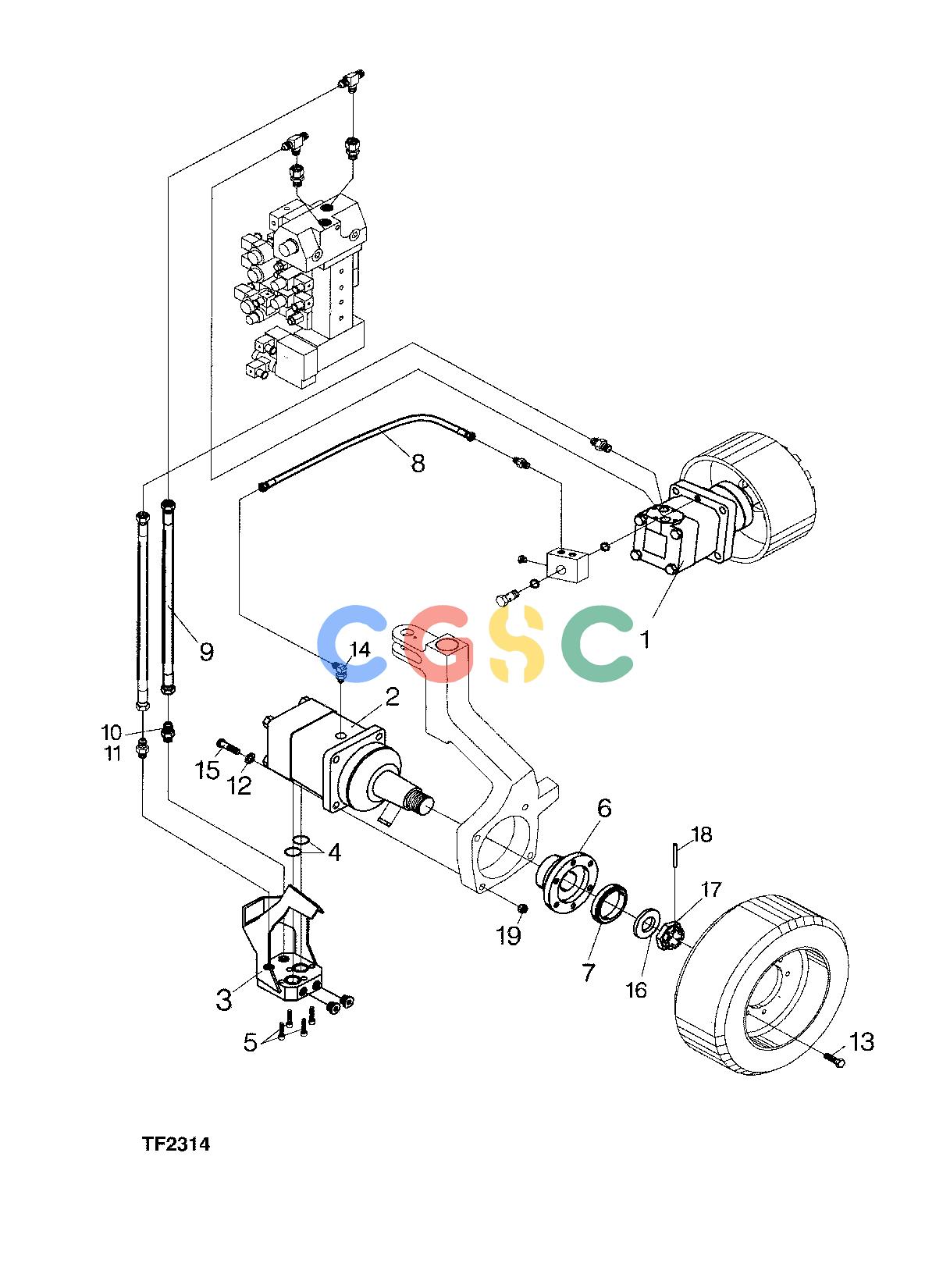

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING, DANFOSS OMV630 F045006 11 56.B TF2314 [TF2314]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047830
|
[2] |
Hydraulic Motor
|
|
| 2. |
F060994
|
[2] |
Hydraulic Motor
|
|
| 3. |
F056336
|
[2] |
Plate
|
|
| 4. |
F056335
|
[4] |
O-Ring
|
|
| 5. |
F004657
|
[8] |
Cap Screw
|
|
| 6. |
F060948
|
[2] |
Flange
|
|
| 7. |
F060949
|
[2] |
Bushing
|
|
| 8. |
F048008
|
[2] |
Hydraulic Hose
|
|
| 9. |
F062258
|
[1] |
Hydraulic Hose
|
|
| 10. |
F054223
|
[2] |
Fitting
|
|
| 11. |
F005170
|
[2] |
Sealing Washer
|
|
| 12. |
F003341
|
[4] |
Washer
|
|
| 13. |
F047665
|
[6] |
Screw
|
|
| 14. |
F024599
|
[1] |
Elbow Fitting
|
|
| 15. |
F048014
|
[8] |
Screw
|
|
| 16. |
F024743
|
[1] |
Washer
|
|
| 17. |
F024740
|
[1] |
Nut
|
|
| 18. |
F003621
|
[1] |
Spring Pin
|
|
| 19. |
F003591
|
[4] |
Lock Nut
|
|
