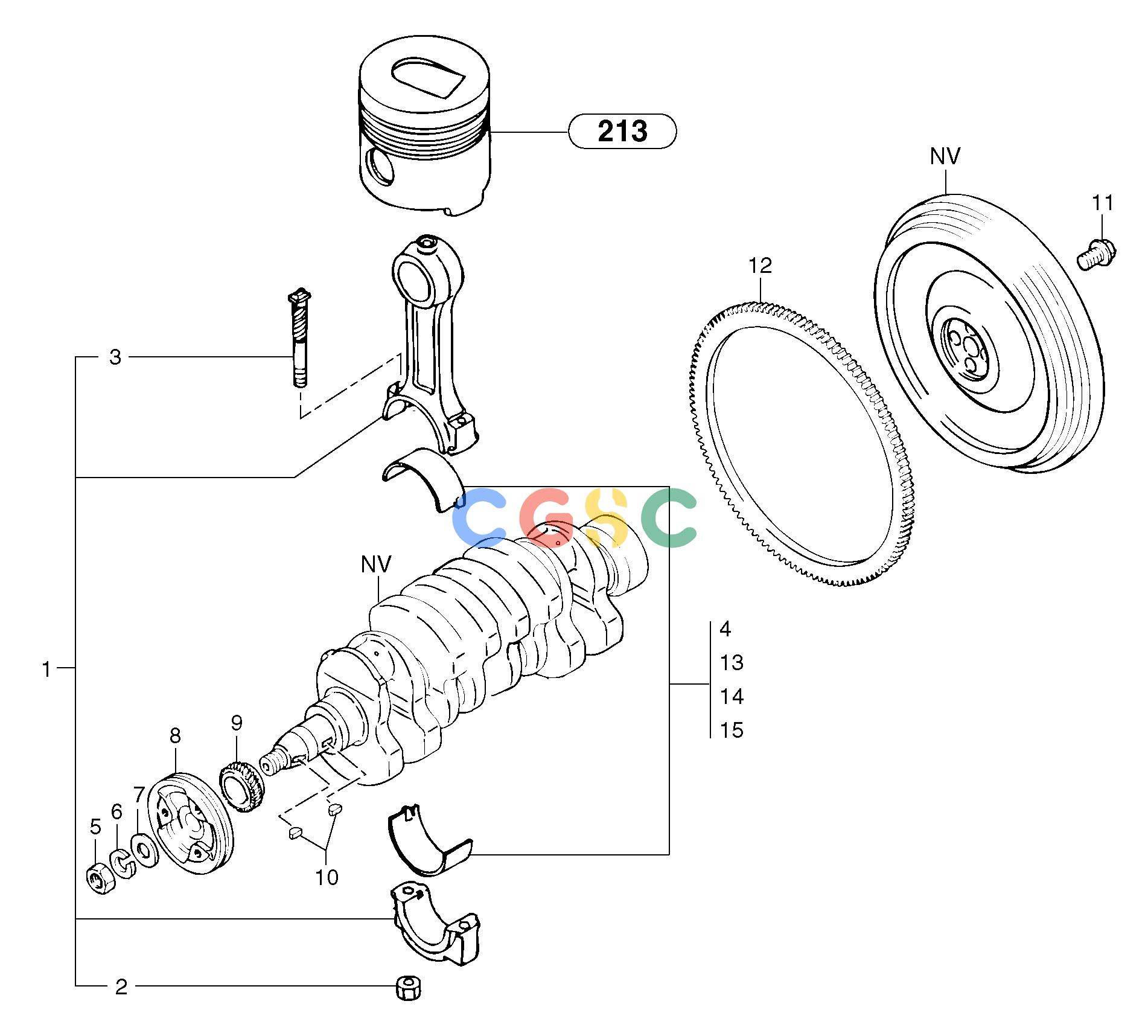

沃尔沃零件查询EC35 Connecting rodsTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7417816
|
[4] |
Piston rod
|
|
| 2. |
PJ7415330
|
[8] |
Nut
|
|
| 3. |
PJ7417817
|
[8] |
Screw
|
|
| 4. |
PJ7415373
|
[4] |
Bearing kit
|
STD SZ
|
| 5. |
PJ7410119
|
[1] |
Nut
|
|
| 6. |
PJ7410128
|
[1] |
Lock Washer
|
|
| 7. |
PJ7410125
|
[1] |
Washer
|
|
| 8. |
PJ5370250
|
[1] |
Pulley
|
|
| 9. |
PJ7415477
|
[1] |
Hub Gear
|
S4L2-63ES, ENG - 53843
|
| 9. |
PJ7418341
|
[1] |
Hub Gear
|
S4L2-63ES, ENG 53844 -
|
| 9. |
PJ7418341
|
[1] |
Hub Gear
|
S4L2-Y163ES, ENG 54215 -
|
| 10. |
PJ7410132
|
[2] |
Key
|
|
| 11. |
PJ7410086
|
[4] |
Screw
|
|
| 12. |
PJ7410061
|
[1] |
Tooth Wheel
|
|
| 13. |
PJ7416888
|
[4] |
Bearings (kit)
|
0,25 mm, 0.0098 in
|
| 14. |
PJ7416889
|
[4] |
Bearing
|
0,50 mm, 0.0197 in
|
| 15. |
PJ7416890
|
[4] |
Bearing
|
0,75 mm, 0.0295 in
|
