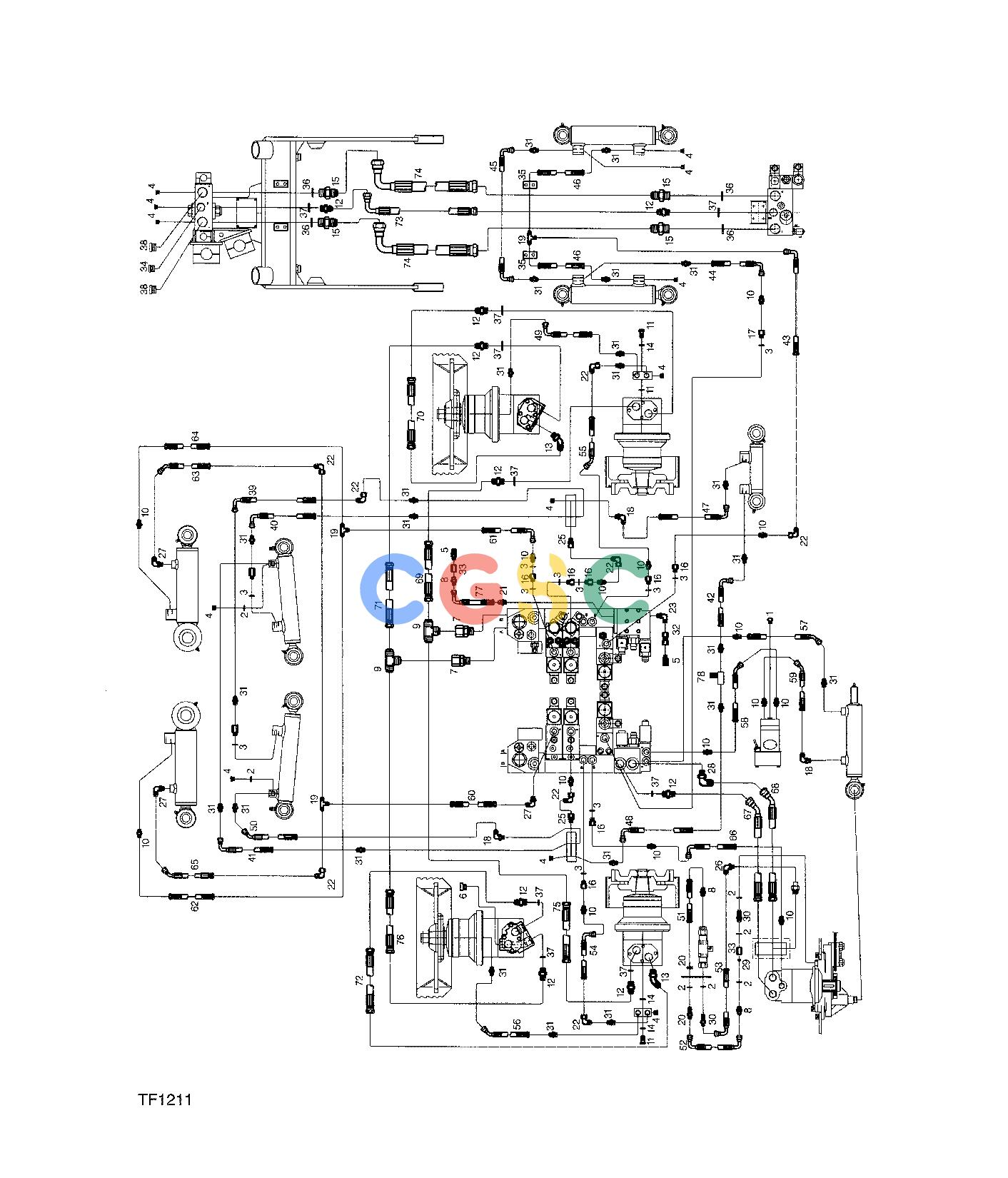

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F045006 11 56.2 TF1211 [TF1211]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F035104
|
[1] |
Plug
|
|
| 2. |
F005164
|
[7] |
SEAL RING
|
|
| 3. |
F005166
|
[11] |
SEAL RING
|
|
| 4. |
F003382
|
[12] |
Plug
|
|
| 5. |
F004419
|
[1] |
MEASURING NIPPLE
|
|
| 6. |
F005570
|
[1] |
Plug
|
|
| 7. |
F054220
|
[2] |
NIPPLE
|
|
| 8. |
F031896
|
[3] |
CONNECTION
|
|
| 9. |
F054221
|
[2] |
T-CONNECTION
|
|
| 10. |
F005055
|
[14] |
NIPPLE
|
|
| 11. |
F054222
|
[2] |
BANJO SCREW
|
|
| 12. |
F054223
|
[9] |
NIPPLE
|
|
| 13. |
F031915
|
[2] |
CONNECTION
|
|
| 14. |
F054224
|
[4] |
Seal
|
|
| 15. |
F054225
|
[4] |
NIPPLE
|
|
| 16. |
F033375
|
[7] |
CONNECTION
|
|
| 17. |
F047921
|
[1] |
NIPPLE
|
|
| 18. |
F023012
|
[3] |
CONNECTION
|
|
| 19. |
F022422
|
[3] |
T-CONNECTION
|
|
| 20. |
F047922
|
[1] |
CONNECTION
|
|
| 21. |
F024643
|
[1] |
NIPPLE
|
|
| 22. |
F033374
|
[8] |
ELBOW CONNECTION
|
|
| 23. |
F010951
|
[1] |
HOSE CONNECTION
|
|
| 24. |
F059125
|
[1] |
Orifice
|
|
| 25. |
F023030
|
[2] |
CONNECTION
|
|
| 26. |
F031937
|
[1] |
CONNECTION
|
|
| 27. |
F031897
|
[3] |
CONNECTION
|
|
| 28. |
F023026
|
[1] |
CONNECTION
|
|
| 29. |
F008631
|
[1] |
Check Valve
|
|
| 30. |
F015375
|
[2] |
NIPPLE
|
|
| 31. |
F005057
|
[22] |
NIPPLE
|
|
| 32. |
F007822
|
[1] |
Hose Fitting
|
|
| 33. |
F047931
|
[2] |
NIPPLE
|
|
| 34. |
F018067
|
[1] |
Plug
|
|
| 35. |
F054226
|
[2] |
Clamp
|
|
| 36. |
F005171
|
[4] |
SEAL RING
|
|
| 37. |
F005170
|
[9] |
SEAL RING
|
|
| 38. |
F041572
|
[2] |
Plug
|
|
| 39. |
F051566
|
[1] |
HOSE-ASSY
|
|
| 40. |
F054371
|
[1] |
HOSE-ASSY
|
|
| 41. |
F051566
|
[1] |
HOSE-ASSY
|
|
| 42. |
F054372
|
[1] |
HOSE-ASSY
|
|
| 43. |
F054373
|
[1] |
HOSE-ASSY
|
|
| 44. |
F024308
|
[1] |
HOSE-ASSY
|
|
| 45. |
F047939
|
[1] |
HOSE-ASSY
|
|
| 46. |
F054374
|
[2] |
HOSE-ASSY
|
|
| 47. |
F047971
|
[1] |
HOSE-ASSY
|
|
| 48. |
F047971
|
[1] |
HOSE-ASSY
|
|
| 49. |
F024307
|
[1] |
HOSE-ASSY
|
|
| 49. |
F048008
|
[1] |
HOSE-ASSY
|
|
| 50. |
F047936
|
[1] |
HOSE-ASSY
|
|
| 51. |
F047943
|
[1] |
HOSE-ASSY
|
|
| 52. |
F052784
|
[1] |
HOSE-ASSY
|
|
| 53. |
F047945
|
[1] |
HOSE-ASSY
|
|
| 54. |
F054375
|
[1] |
HOSE-ASSY
|
|
| 55. |
F054376
|
[1] |
HOSE-ASSY
|
|
| 56. |
F054377
|
[1] |
HOSE-ASSY
|
|
| 56. |
F048008
|
[1] |
HOSE-ASSY
|
|
| 57. |
F054378
|
[1] |
HOSE-ASSY
|
|
| 58. |
F054379
|
[1] |
HOSE-ASSY
|
|
| 59. |
F032007
|
[1] |
HOSE-ASSY
|
|
| 60. |
F054380
|
[1] |
HOSE-ASSY
|
|
| 61. |
F054381
|
[1] |
HOSE-ASSY
|
|
| 62. |
F054382
|
[1] |
HOSE-ASSY
|
|
| 63. |
F054379
|
[1] |
HOSE-ASSY
|
|
| 64. |
F047953
|
[1] |
HOSE-ASSY
|
|
| 65. |
F047955
|
[1] |
HOSE-ASSY
|
|
| 66. |
F047956
|
[1] |
HOSE-ASSY
|
|
| 67. |
F047957
|
[1] |
HOSE-ASSY
|
|
| 68. |
F054383
|
[1] |
HOSE-ASSY
|
|
| 69. |
F054385
|
[1] |
HOSE-ASSY
|
|
| 70. |
F054384
|
[1] |
HOSE-ASSY
|
|
| 71. |
F054386
|
[1] |
HOSE-ASSY
|
|
| 72. |
F047961
|
[1] |
HOSE-ASSY
|
|
| 73. |
F047963
|
[1] |
HOSE-ASSY
|
|
| 74. |
F047964
|
[2] |
HOSE-ASSY
|
|
| 75. |
F054387
|
[1] |
HOSE-ASSY
|
|
| 76. |
F054363
|
[1] |
HOSE-ASSY
|
|
| 76. |
F062258
|
[1] |
HOSE-ASSY
|
|
| 77. |
F033390
|
[1] |
HOSE-ASSY
|
|
| 78. |
F059125
|
[1] |
Orifice
|
|
