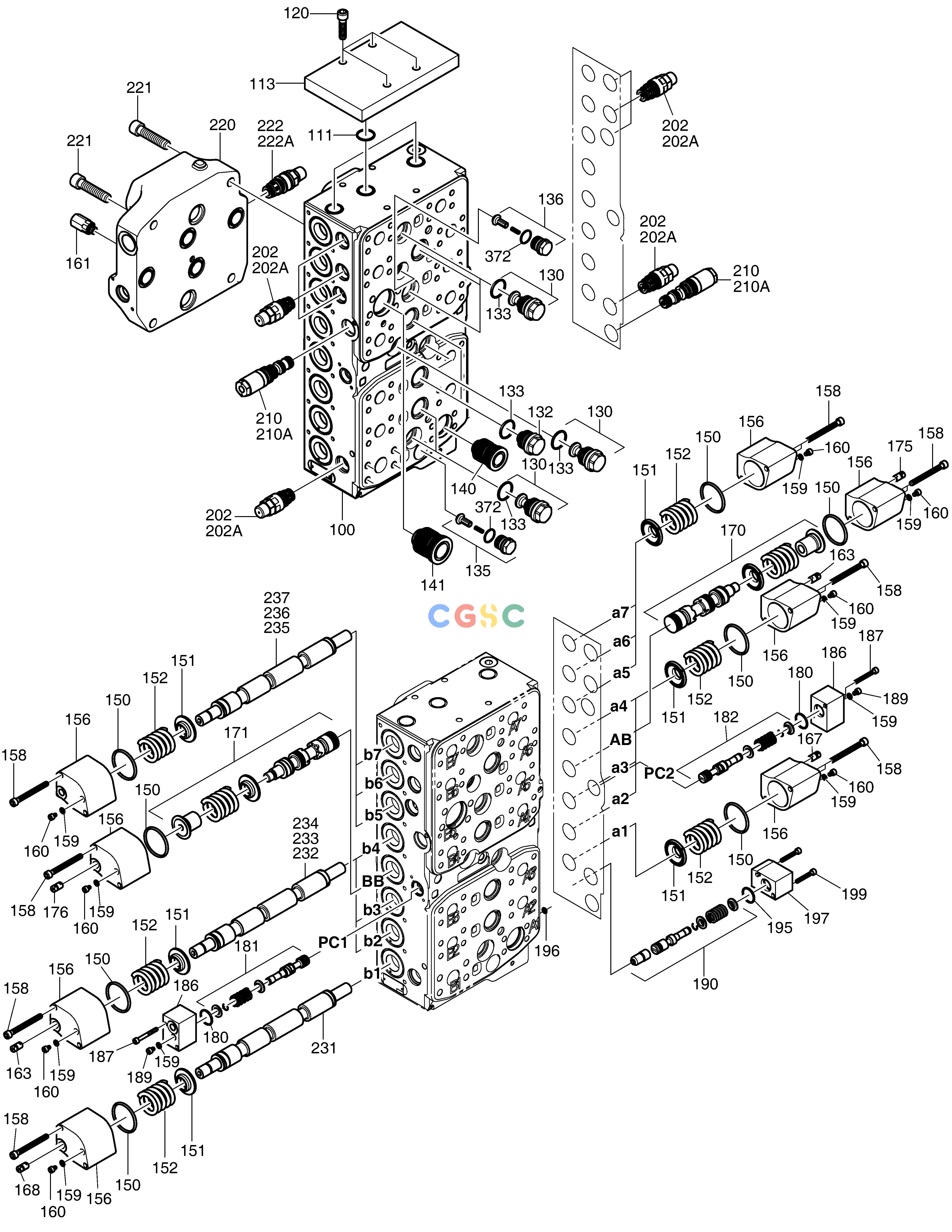

斗山零件查询CONTROL VALVE(1) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01079
|
[1] |
|
|
| -. |
410105-00086A
|
[1] |
|
|
| 100. |
NA03273
|
[1] |
|
|
| 111. |
NA00643
|
[3] |
. O-RING
|
|
| 113. |
NA00816
|
[1] |
PLATE
|
|
| 120. |
S2215561
|
[4] |
BOLT;SOCKET
|
|
| 130. |
430221-00488
|
[7] |
|
|
| 132. |
430221-00489
|
[2] |
|
|
| 133. |
NA00643
|
[9] |
. O-RING
|
|
| 135. |
410104-00150
|
[1] |
|
|
| 136. |
K9009710
|
[1] |
VALVE;CHECK
|
|
| 140. |
K9009696
|
[1] |
VALVE;CHECK
|
|
| 141. |
410104-00151
|
[1] |
|
|
| 150. |
NA00643
|
[16] |
. O-RING
|
|
| 151. |
110943-00049
|
[14] |
|
|
| 152. |
111601-00379
|
[14] |
|
|
| 156. |
110508-08055
|
[16] |
|
|
| 158. |
S2210271
|
[32] |
BOLT;SOCKET M8X1.25X80
|
|
| 159. |
NA00991
|
[18] |
|
|
| 160. |
S2204271
|
[16] |
|
|
| 161. |
410104-00152
|
[1] |
|
|
| 163. |
410104-00153
|
[6] |
|
|
| 167. |
430219-00015
|
[1] |
|
|
| 168. |
430219-00016
|
[1] |
|
|
| 170. |
410207-00254
|
[1] |
|
|
| 171. |
410207-00253
|
[1] |
|
|
| 175. |
430219-00017
|
[1] |
|
|
| 176. |
430219-00018
|
[1] |
|
|
| 180. |
NA00643
|
[2] |
. O-RING
|
|
| 181. |
410207-00255
|
[1] |
|
|
| 182. |
410207-00255
|
[1] |
|
|
| 186. |
110508-08056
|
[2] |
|
|
| 187. |
S2205661
|
[4] |
BOLT
|
|
| 189. |
S2204271
|
[2] |
|
|
| 190. |
410207-00256
|
[1] |
|
|
| 195. |
NA00643
|
[1] |
. O-RING
|
|
| 196. |
NA00643
|
[1] |
. O-RING
|
|
| 197. |
110508-08057
|
[1] |
|
|
| 199. |
S2205661
|
[2] |
BOLT
|
|
| 202. |
410127-00145A
|
[8] |
|
|
| 202A. |
401107-01077
|
[1] |
|
|
| 210. |
410116-00443
|
[2] |
|
|
| 210A. |
K9009699
|
[1] |
SEAL KIT
|
|
| 220. |
250201-01549
|
[1] |
|
|
| 221. |
S2222066
|
[4] |
BOLT
|
|
| 222. |
410127-00146
|
[1] |
|
|
| 222A. |
401107-01078
|
[1] |
|
|
| 231. |
410207-00257
|
[1] |
|
|
| 232. |
410207-00258
|
[1] |
|
|
| 233. |
410207-00259
|
[1] |
|
|
| 234. |
410207-00259
|
[1] |
|
|
| 235. |
410207-00260
|
[1] |
|
|
| 236. |
410207-00261
|
[1] |
|
|
| 237. |
410207-00262
|
[1] |
|
|
| 372. |
NA00643
|
[2] |
. O-RING
|
|
