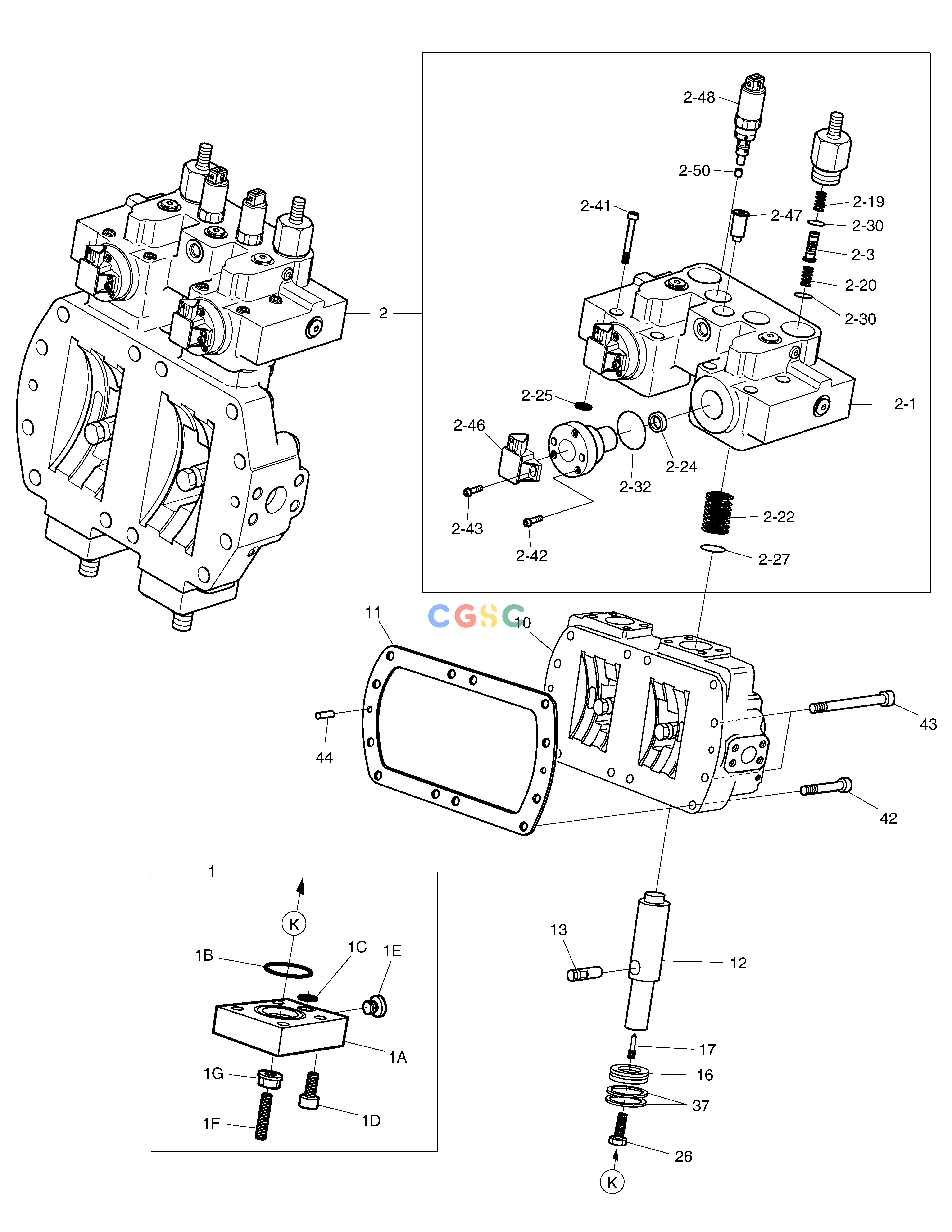

斗山零件查询MAIN PUMP - CONTROL DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
2.430-00228
|
[2] |
COVER
|
|
| 10. |
NA00534
|
[1] |
|
|
| 11. |
2.180-00086
|
[1] |
GASKET
|
|
| 12. |
130602-00707
|
[2] |
|
|
| 13. |
2.428-00065
|
[2] |
TRUNNION;POSITIONING
|
|
| 16. |
K9001926
|
[2] |
PISTON
|
|
| 17. |
2.123-00248
|
[2] |
PIN;THREADED
|
|
| 1A. |
2.430-00229
|
[1] |
COVER
|
|
| 1B. |
2.180-01196
|
[1] |
O-RING
|
|
| 1C. |
2180-1217D12
|
[1] |
O-RING
|
|
| 1D. |
2.120-00836
|
[4] |
SCREW;SOCKET-HEAD
|
|
| 1E. |
2.120-00615
|
[1] |
SCREW;LOCKING
|
|
| 1F. |
2.123-00291
|
[1] |
PIN;THREADED
|
|
| 1G. |
2.121-00263
|
[1] |
NUT;SEAL LOCK
|
|
| 2. |
300628-00195
|
[1] |
|
|
| 2-1. |
NA00534
|
[1] |
|
|
| 2-19. |
111601-00375
|
[2] |
|
|
| 2-20. |
111601-00375
|
[2] |
|
|
| 2-22. |
111601-00374
|
[2] |
|
|
| 2-24. |
140101-00512
|
[2] |
|
|
| 2-25. |
2.180-00471
|
[6] |
O-RING
|
|
| 2-27. |
2.180-01197
|
[2] |
O-RING
|
|
| 2-3. |
130602-00708
|
[2] |
|
|
| 2-30. |
2180-1217D57
|
[4] |
O-RING
|
|
| 2-32. |
2180-1217D61
|
[2] |
O-RING 32.99X2.62
|
|
| 2-41. |
120107-00144
|
[6] |
|
|
| 2-42. |
S2201863
|
[6] |
BOLT;SOCKET M4X0.7X16
|
|
| 2-43. |
S2201662
|
[4] |
BOLT;SOCKET M4X0.7X12
|
|
| 2-46. |
301308-00168
|
[2] |
|
|
| 2-47. |
400406-00220
|
[1] |
|
|
| 2-48. |
410126-00039
|
[2] |
|
|
| 2-50. |
2.415-00033
|
[2] |
ORIFICE
|
|
| 26. |
2.120-00801
|
[2] |
SCREW;HEX
|
|
| 37. |
K9001927
|
[4] |
RING;SQUARE
|
|
| 42. |
2.120-00837
|
[5] |
SCREW;SOCKET M16X60
|
|
| 43. |
S2222461
|
[4] |
SCREW;SOCKET M16X90
|
|
| 44. |
120501-01852
|
[2] |
|
|
