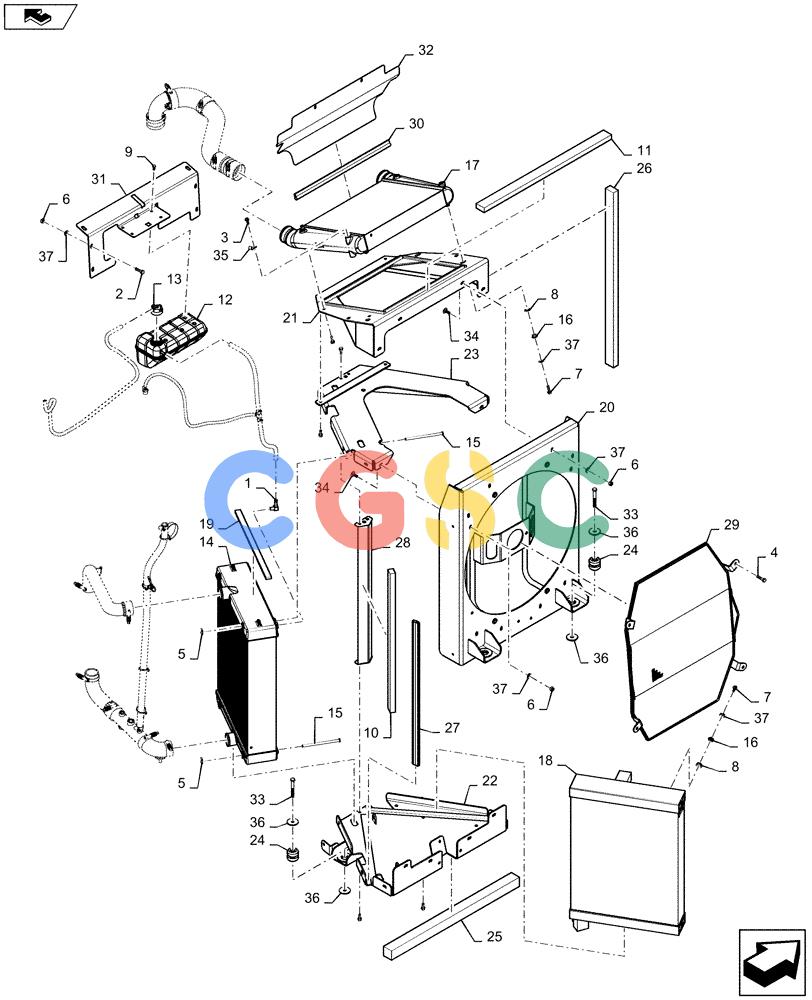

| 1. | 217-86 | [1] | PLUG,Hex Hd, 1/4"-18, Brass | CAS Superseded by part number: 9576801 |
| 2. | 614-10040 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd | CAS Superseded by part number: 120112 |
| 3. | 845-8020 | [1] | BOLT,Hvy Hex, M8 x 20mm, Cl 8.8 | CAS |
| 4. | 120068 | [4] | BOLT,Hex, M10 x 40mm, Cl 8.8 | NH |
| 5. | 87700737 | [4] | CLIP | RACPin |
| 6. | 8475948 | [14] | NUT,M10 x 1.5, Cl 8 | BER Superseded by part number: 100037 |
| 7. | 9804260 | [4] | BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8 | NH |
| 8. | 13507701 | [4] | WASHER,16.4mm ID x 27mm OD x 2mm Thk | BAS |
| 9. | 16043221 | [6] | BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd | HFI Superseded by part number: 16043224 |
| 10. | 47426880 | [2] | SEAL | BURFoam |
| 11. | 47557339 | [1] | SEAL | BURFoam |
| 12. | 82019588 | [1] | COOLANT EXPANSION RESERVOIR | BAS |
| 13. | 82022744 | [1] | CAP | BAS |
| 14. | 84262310 | [1] | RADIATOR | RAC5 Row |
| 15. | 84269372 | [4] | PIN,9.65mm OD x 177.75mm L | FAR |
| 16. | 84316339 | [4] | HUB,10mm ID x 23mm OD x 10.8mm L | FARCollar Sliding |
| 17. | 84376173 | [1] | AFTERCOOLER | BUR |
| 18. | 84376175 | [1] | COOLER ASSY. | BUROil |
| 19. | 84382952 | [1] | SEALING STRIP,25mm W x 540mm L x 12mm Thk | BURFoam |
| 20. | 84540627 | [1] | SHROUD | BURFan |
| 21. | 84540635 | [1] | FRAME | BURCAC Mount |
| 22. | 47376041 | [1] | FRAME | BURLower |
| 23. | 84540646 | [1] | FRAME | BURUpper |
| 24. | 84540649 | [4] | ISOLATOR,50mm OD x 50mm L | BURVibration |
| 25. | 84540655 | [1] | SEALING STRIP,815mm L | BURFoam |
| 26. | 84540656 | [2] | SEALING STRIP,50.8mm W x 970mm L x 50.8mm Thk | BURFoam |
| 27. | 84540657 | [2] | RUBBER WEATHERSTRIP | BURBulb |
| 28. | 84542663 | [1] | SUPPORT | BURRear |
| 29. | 84544062 | [1] | GUARD | BURFan |
| 30. | 84557202 | [1] | RUBBER WEATHERSTRIP | BURBulb |
| 31. | 84569672 | [1] | BAFFLE | BURUpper |
| 32. | 84569682 | [1] | BAFFLE | BURLower Superseded by part number: 47764484 |
| 33. | 86508581 | [4] | BOLT,Hex, M12 x 90mm, Cl 8.8 | NH |
| 34. | 86512424 | [10] | CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd | NH Superseded by part number: 86512446 |
| 35. | 86625036 | [1] | CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type | FAR |
| 36. | 86625245 | [8] | WASHER,0.52" ID x 2" OD x 0.16" Thk | IMO0.521 x 2 x 0.16 HTS ZND |
| 37. | 87655046 | [18] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BUR |
