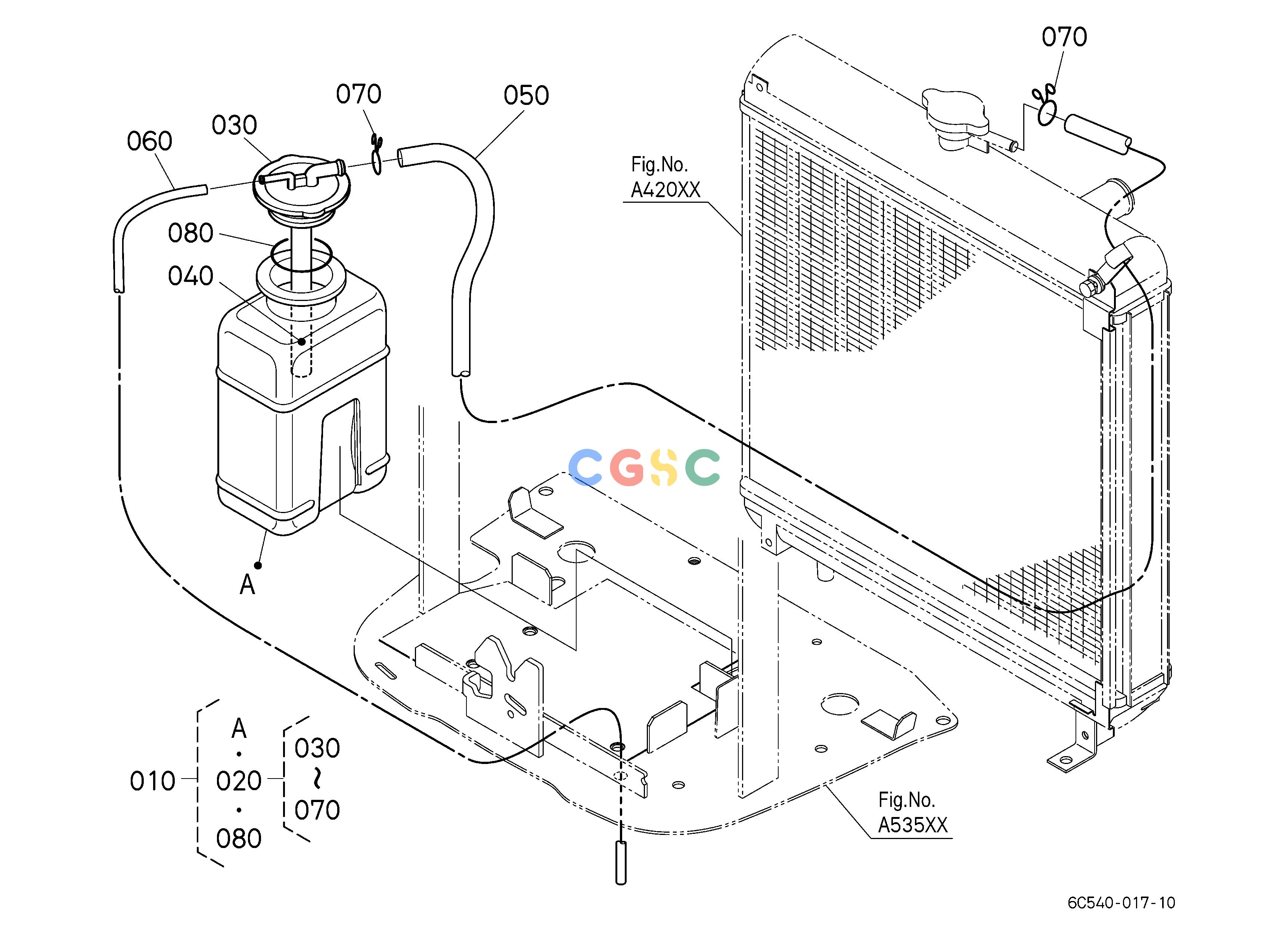

久保田零件查询A43000 RESERVE TANK COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3741088603
|
[1] |
ASSY TANK,RESERVE
|
0.5280(lbs); 0.240
|
| 020. |
3741088623
|
[1] |
ASSY CAP
|
0.1870(lbs); 0.085
|
| 030. |
3741088640
|
[1] |
CAP
|
0.0220(lbs); 0.010
|
| 040. |
3741088650
|
[1] |
HOSE
|
0.0308(lbs); 0.014
|
| 050. |
3741088662
|
[1] |
HOSE
|
0.1210(lbs); 0.055
|
| 060. |
3741088670
|
[1] |
HOSE
|
0.0440(lbs); 0.020
|
| 070. |
3741088680
|
[2] |
CLIP
|
0.0066(lbs); 0.003
|
| 080. |
3741088630
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
