卡特零件查询（725C） 459-2352: CONTROL GP-PAYLOAD
广数供应链运营团队, 14 02月, 2025，浏览：
677 次

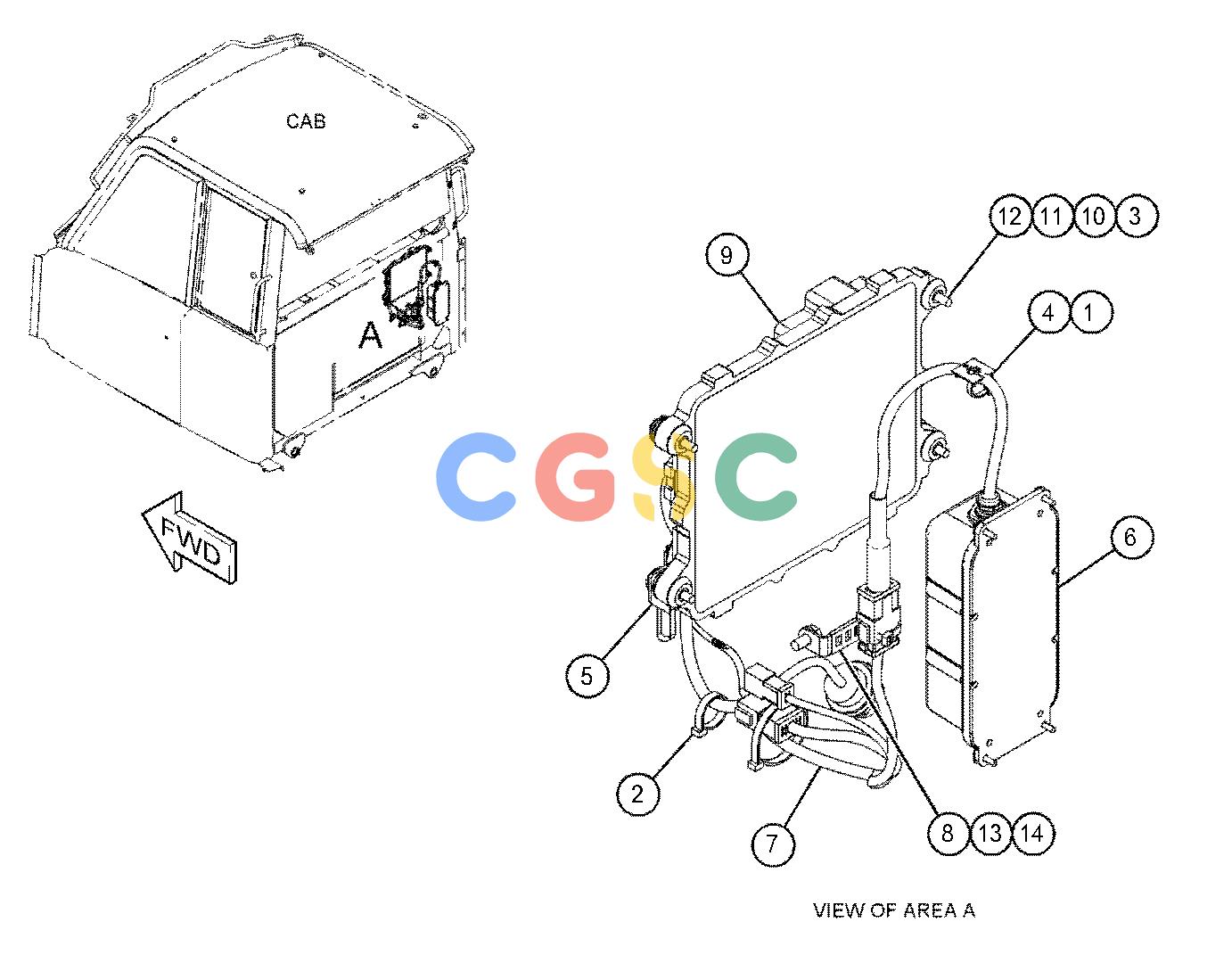

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [1] | STRAP-CABLE | |
| 2. | 7K-1181 | [5] | STRAP-CABLE | |
| 3. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 4. | 235-8966 | [1] | BASE-MOUNTING | |
| 5. | 288-1401 | [1] | BRACKET | |
| 6. | 444-9686Y | [1] | WIRING GP-PAYLOAD CONTROL(CAB) | |
| 7. | 459-2345Y | [1] | HARNESS AS-CHASSIS | |
| 8. | 352-3968 | [1] | CLIP(LADDER) | |
| 9. | 365-6773 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 10. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 11. | 7X-0579 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 12. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 13. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
