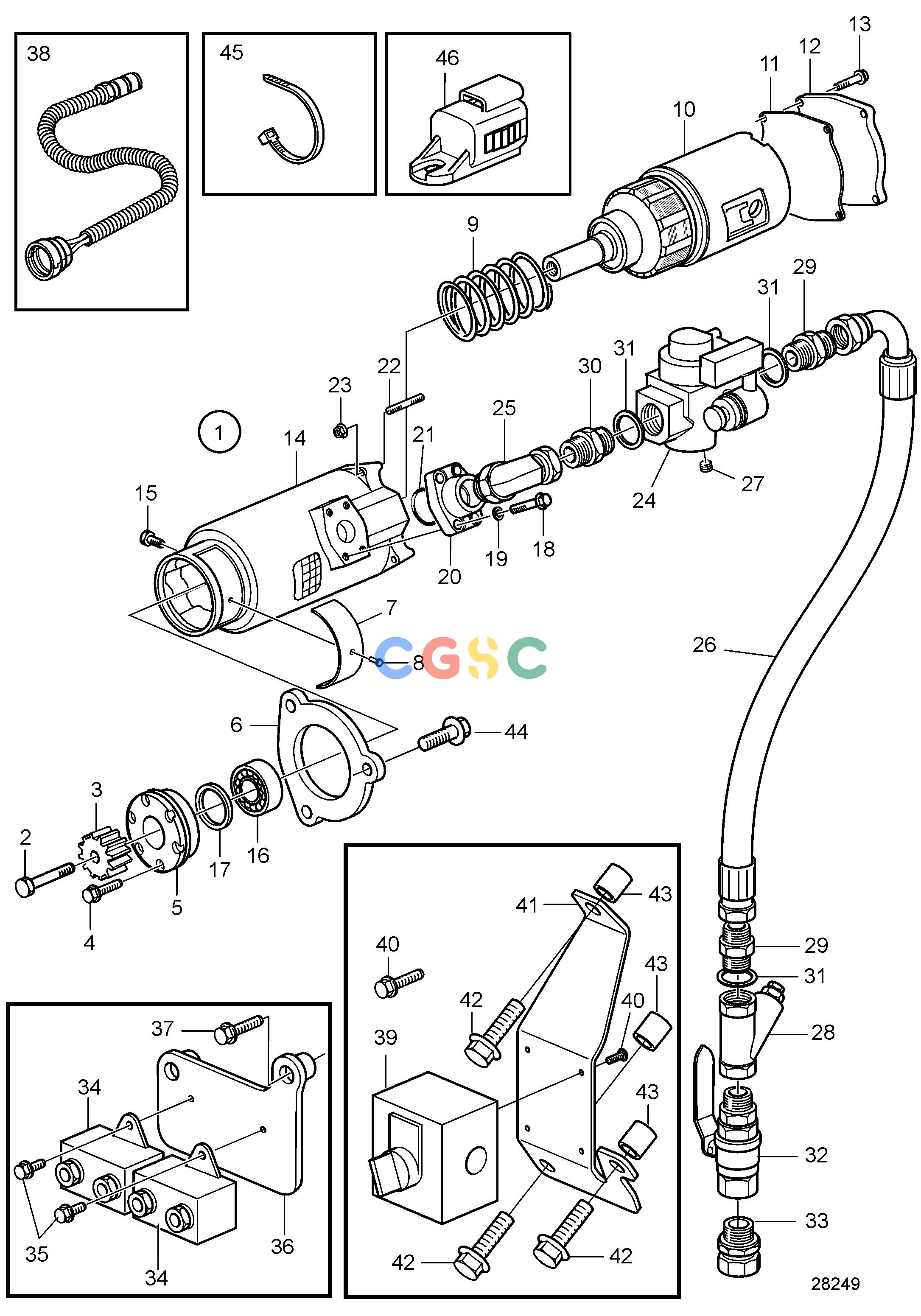

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemAir Starter and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829870
|
[1] |
Starter motor
|
|
| 2. |
3830006
|
[1] |
Screw
|
|
| 3. |
3830007
|
[1] |
Starter pinion
|
|
| 4. |
|
|
|
|
| 5. |
3830011
|
[1] |
Cover
|
|
| 6. |
3830013
|
[1] |
Flange
|
|
| 7. |
3830015
|
[1] |
Sign
|
|
| 8. |
3830016
|
[1] |
Pin
|
|
| 9. |
3830017
|
[1] |
Return spring
|
|
| 10. |
3830018
|
[1] |
Liner
|
|
| 11. |
3830019
|
[1] |
Gasket
|
|
| 12. |
3830020
|
[1] |
Cover
|
|
| 13. |
3830021
|
[4] |
Bolt
|
|
| 14. |
3830022
|
[1] |
Housing
|
|
| 15. |
3830023
|
[1] |
Plug
|
|
| 16. |
1544092
|
[1] |
Ball bearing
|
|
| 17. |
3830025
|
[1] |
Seal
|
|
| 18. |
956585
|
[4] |
Hex. socket screw
|
|
| 19. |
18665
|
[4] |
Gasket
|
|
| 20. |
21165591
|
[1] |
Connection flange
|
|
| 21. |
948700
|
[1] |
O-ring
|
|
| 22. |
953098
|
[3] |
Stud
|
|
| 23. |
990942
|
[3] |
Flange nut
|
|
| 24. |
3829869
|
[1] |
Control valve
|
|
| 25. |
21164611
|
[1] |
Elbow nipple
|
|
| 26. |
3829999
|
[1] |
Hose
|
|
| 27. |
952075
|
[1] |
Plug
|
|
| 28. |
3830394
|
[1] |
Strainer
|
|
| 29. |
21165586
|
[2] |
Nipple
|
|
| 30. |
21165583
|
[1] |
Nipple
|
|
| 31. |
993300
|
[3] |
Gasket
|
|
| 32. |
21165588
|
[1] |
Ball valve
|
|
| 33. |
21165655
|
[1] |
Nipple
|
|
| 34. |
3886793
|
[2] |
Junction box
|
|
| 35. |
967949
|
[2] |
Flange screw
|
|
| 36. |
21248267
|
[1] |
Bracket
|
|
| 37. |
984816
|
[2] |
Flange screw
|
|
| 38. |
3886990
|
[1] |
Wiring harness
|
|
| 39. |
21622717
|
[1] |
Rotary switch
|
|
| 40. |
969514
|
[4] |
Six point socket scr
|
|
| 41. |
21612817
|
[1] |
Bracket
|
|
| 42. |
984816
|
[3] |
Flange screw
|
|
| 43. |
849513
|
[2] |
Spacer sleeve
|
|
| 44. |
984815
|
[3] |
Flange screw
|
|
| 45. |
948211
|
[7] |
Cable tie
|
|
| 46. |
995826
|
[1] |
Adapter
|
|
