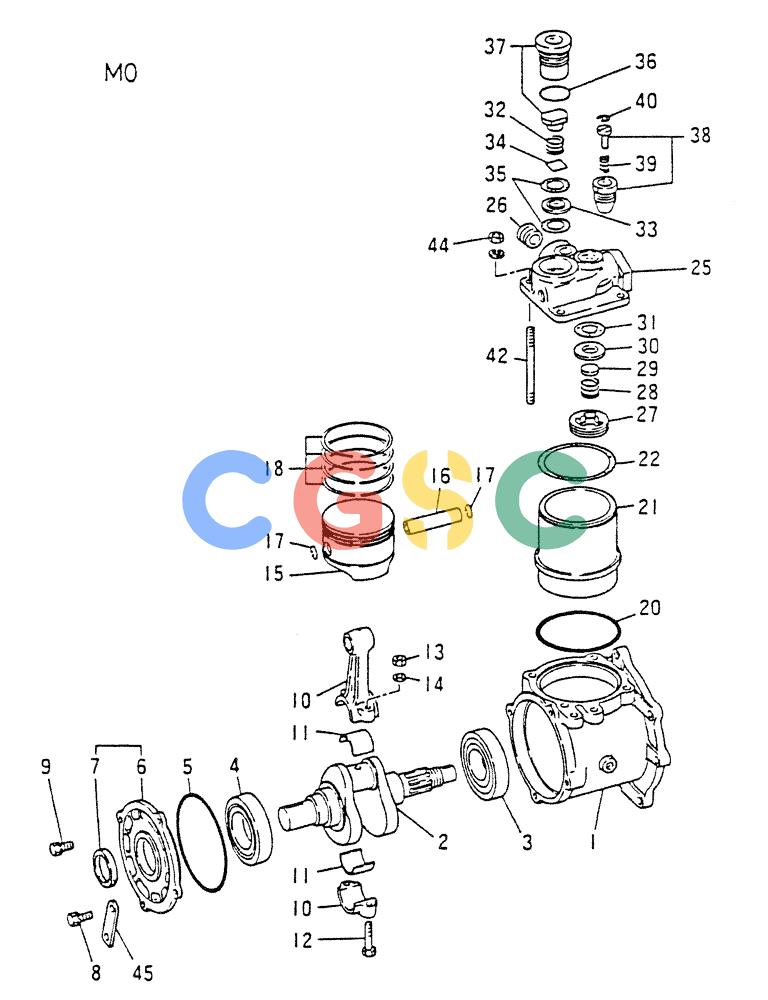

| 1-45. | VAME066966 | [1] | COMPRESSOR AIR COMPRESSOR ASSY 1CYL 284CC, (SAHUA WATER COOLED) (FOR M0 ONLY), Start Year: 01-FEB-85 | COMPRESSOR AIR COMPRESSOR ASSY 1CYL 284CC, (SAHUA WATER COOLED) (FOR M0 ONLY), Start Year: 01-FEB-85 |
| . . | VAME067898 | [1] | AIR COMP.ASSY 1CYL 284CC (SANWA WATER COOLED)(FOR M0 ONLY), Years: -01-JAN-85 | AIR COMP.ASSY 1CYL 284CC (SANWA WATER COOLED)(FOR M0 ONLY), Years: -01-JAN-85 |
| . . | VAME066967 | [1] | 2CYL 502CC (SANWA WATER COOLED)(FOR M5 ONLY), Start Year: 01-FEB-85 | |
| . . | VAME067899 | [1] | 2CYL 502CC (SANWA WATER COOLED)(FOR M5 ONLY), Years: -01-JAN-85 | |
| 1. | VAME713128 | [1] | CRANKCASE (FOR M0 ONLY) | |
| . . | VAME713106 | [1] | (FOR M5 ONLY) | |
| 2. | VAME713095 | [1] | CRANKSHAFT CRANKSHAFT D=30 (FOR M0 ONLY) | CRANKSHAFT CRANKSHAFT D=30 (FOR M0 ONLY) |
| . . | VAME713107 | [1] | (FOR M5 ONLY), Years: -01-JAN-85 | |
| 3. | VAME713185 | [1] | BEARING BEARING (FOR M0 ONLY), Start Year: 01-JUL-84 | BEARING BEARING (FOR M0 ONLY), Start Year: 01-JUL-84 |
| . . | VAME713124 | [1] | BEARING (FOR M0 ONLY), Years: -01-JUN-84 | BEARING (FOR M0 ONLY), Years: -01-JUN-84 |
| . . | VAME713204 | [1] | (FOR M5 ONLY), Start Year: 01-AUG-85 | |
| . . | VAME713118 | [1] | (FOR M5 ONLY), Years: -01-JUL-85 | |
| 4. | VAME713098 | [1] | BEARING BEARING | BEARING BEARING |
| 5. | VAME7I3096 | [1] | O-RING | |
| 6-7. | VAME713131 | [1] | BEARING HOLDER ASSY BEARING HOLDER ASSY | BEARING HOLDER ASSY BEARING HOLDER ASSY |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER,BRG |
| 7. | VAME713186 | [1] | OIL SEAL | KOBOILSEAL, Start Year: 01-OCT-84 |
| . . | VAME713100 | [1] | OIL SEAL, Years: -01-SEP-84 | OIL SEAL, Years: -01-SEP-84 |
| 8. | VAMF713127 | [3] | BOLT, W/WSR 8X25 | |
| 9. | VAME713126 | [1] | BOLT,W/WSR 8X20 | |
| 10-14. | VAME713099 | [1] | CONROD CONNECTING ROD ASSY (FOR M0 ONLY) | CONROD CONNECTING ROD ASSY (FOR M0 ONLY) |
| . . | VAME713108 | [2] | (FOR M5 ONLY) | |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONROD,CONNECTING (FOR M0 ONLY) |
| 11. | VAME713119 | [24] | BEARING CON-ROD BEARING,CONN-ROD | BEARING CON-ROD BEARING,CONN-ROD |
| 12. | VAME713093 | [2] | BOLT | KOBBOLT,CONN-ROD (FOR M0 ONLY) |
| 13. | VA3097525100 | [2] | NUT NUT,CONN-ROD (FOR M0 ONLY) | NUT NUT,CONN-ROD (FOR M0 ONLY) |
| 14. | VA3097521200 | [2] | LOCK WASHER WASHER,LOCK (FOR M0 ONLY) | LOCK WASHER WASHER,LOCK (FOR M0 ONLY) |
| 15. | VAME713114 | [1] | PISTON | KOBPISTON (FOR M0 ONLY) Superseded by part number: 132597A1 |
| . . | VAME713110 | [2] | MANIFOLD (FOR M5 ONLY) | MANIFOLD (FOR M5 ONLY) |
| 16. | VA3097521700 | [1] | PIN | KOBPIN, PISTON (FOR M0 ONLY) Superseded by part number: 132581A1 |
| . . | VA3097516100 | [2] | (FOR M5 ONLY) | |
| 17. | VA3097521800 | [2] | RING,SNAP RING,SNAP (FOR M0 ONLY) | RING,SNAP RING,SNAP (FOR M0 ONLY) |
| . . | VA3097516200 | [4] | COLLAR | KOB(FOR M5 ONLY) Superseded by part number: 3097516200 |
| 18. | VA3097502050 | [1] | RING KIT PISTON RING SET (FOR M0 ONLY) | RING KIT PISTON RING SET (FOR M0 ONLY) |
| . . | VAME713125 | [2] | PISTON RING SET (FOR M5 ONLY) | PISTON RING SET (FOR M5 ONLY) |
| 20. | VAME713002 | [1] | O-RING | KOBO-RING (FOR M0 ONLY) Superseded by part number: 132630A1 |
| . . | VAME713120 | [2] | (FOR M5 ONLY) | |
| 21. | VAME713101 | [1] | LINER,CYL (FOR M0 ONLY) | |
| . . | VAME713111 | [2] | (FOR M5 ONLY) | |
| 22. | VA3097524500 | [1] | O-RING | KOBGASKET,CYL HEAD Superseded by part number: 132565A1 |
| 25-41. | VAME066970 | [2] | CYLINDER HEAD ASSY, (FOR SERVICE ONLY)(FOR M5 ONLY), Start Year: 01-FEB-85 | |
| 25-40. | VAME713199 | [1] | HEAD ASSY CYLINDER CYLINDER HEAD ASSY (FOR M0 ONLY), Start Year: 01-FEB-85 | HEAD ASSY CYLINDER CYLINDER HEAD ASSY (FOR M0 ONLY), Start Year: 01-FEB-85 |
| . . | VAME713199 | [1] | HEAD ASSY CYLINDER (FOR M0 ONLY), Start Year: 01-FEB-85 | HEAD ASSY CYLINDER (FOR M0 ONLY), Start Year: 01-FEB-85 |
| . . | VAME713102 | [2] | SPARE PARTS CATALOGUE (FOR M5 ONLY), Years: -01-JAN-85 | SPARE PARTS CATALOGUE (FOR M5 ONLY), Years: -01-JAN-85 |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD,CYL (FOR M0 ONLY) |
| 26. | VA3097523600 | [1] | PLUG,TAPER (FOR M0 ONLY) | |
| 27-31. | VA3097502070 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE SUCTION VALVE SET (FOR M0 ONLY) Superseded by part number: 132611A1 |
| 27. | VA3097523100 | [1] | HOLDER,SUCTION (FOR M0 ONLY) | |
| 28. | VA3097523200 | [1] | SPRING SPRING,SUCTION (FOR M0 ONLY) | SPRING SPRING,SUCTION (FOR M0 ONLY) |
| 29. | VA3097523300 | [1] | VALVE VALVE,SUCTION (FOR M0 ONLY) | VALVE VALVE,SUCTION (FOR M0 ONLY) |
| 30. | VA3097523400 | [1] | SEAT,SUCTION (FOR M0 ONLY) | |
| 31. | VA3097523500 | [1] | GASKET,SUCTION GASKET,SUCTION (FOR M0 ONLY) | GASKET,SUCTION GASKET,SUCTION (FOR M0 ONLY) |
| 32-37. | VA3097502060 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE DELIVERY VALVE SET (FOR M0 ONLY) Superseded by part number: 132608A1 |
| 32. | VA3097522500 | [1] | SPRING,DELIVERLY SPRING,DELIVERY (FOR M0 ONLY) | SPRING,DELIVERLY SPRING,DELIVERY (FOR M0 ONLY) |
| 33. | VA3097522600 | [1] | VALVE,DELIVERLY VALVE,DELIVERY(FOR M0 ONLY) | VALVE,DELIVERLY VALVE,DELIVERY(FOR M0 ONLY) |
| 34. | VA3097522700 | [1] | SEAT,DELIVERY (FOR M0 ONLY) | |
| 35. | VA3097522800 | [2] | GASKET | KOBGASKET,DELIVERY (FOR M0 ONLY) Superseded by part number: 132567A1 |
| 36. | VA3097522900 | [1] | O-RING O-RING (FOR M0 ONLY) | O-RING O-RING (FOR M0 ONLY) |
| 37. | VA3097501060 | [1] | DELIVERY VALVE DELIVERY HOLDER ASSY (FOR M0 ONLY) | DELIVERY VALVE DELIVERY HOLDER ASSY (FOR M0 ONLY) |
| 38-40. | VA3097501070 | [1] | HYDRAULIC VALVE | KOBUNLOADER VALVE ASSY (FOR M0 ONLY) Superseded by part number: VAME713027 |
| 38. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE,UNLOADER (FOR M0 ONLY) |
| 39. | VA3097524200 | [1] | SPRING,UNLOADER SPRING,UNLOADER (FOR M0 ONLY) | SPRING,UNLOADER SPRING,UNLOADER (FOR M0 ONLY) |
| 40. | VA3097524300 | [1] | RING, SNAP RING,SNAP (FOR M0 ONLY) | RING, SNAP RING,SNAP (FOR M0 ONLY) |
| 41. | VAME713197 | [1] | STAY (FOR M5 ONLY), Start Year: 01-FEB-85 | |
| . . | VAME066922 | [1] | (FOR M5 ONLY), Years: 01-OCT-84-01-JAN-85 | |
| 42. | VAME713104 | [4] | STUD (FOR M0 ONLY) | |
| . . | VAME713112 | [7] | (FOR M5 ONLY) | |
| 43. | VAME713113 | [1] | STUD (FOR M5 ONLY) | |
| 44. | VA634831018 | [4] | NUT (FOR M0 ONLY) | |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER,SPG 1.0 (FOR M0 ONLY) |
| 45. | VAME713105 | [1] | STAY | |
| 50. | VAME066972 | [2] | CYLINDER HEAD KIT (FOR SERVICE ONLY) (FOR M5 ONLY), Start Year: 01-FEB-85 | |
