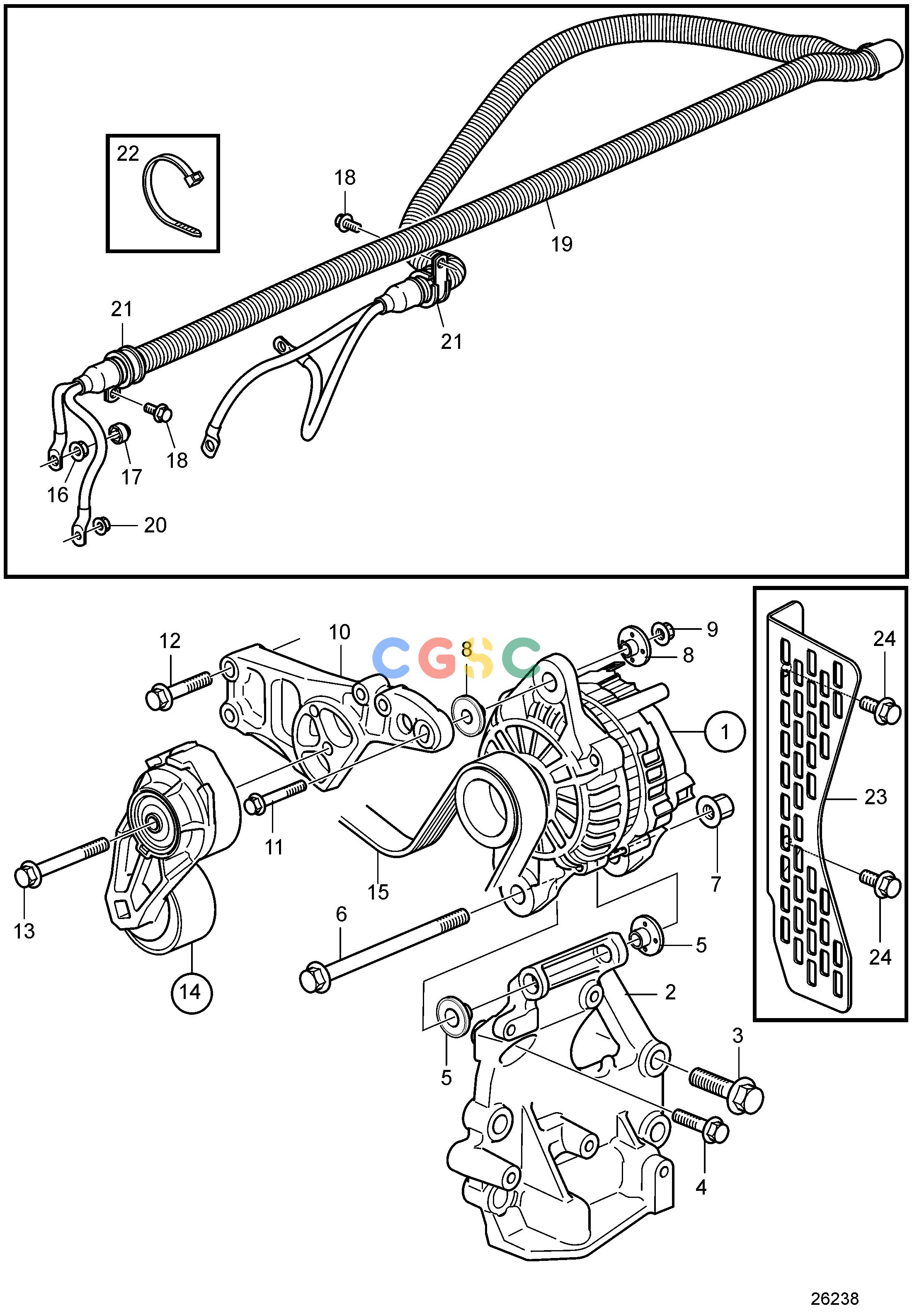

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Electrical SystemAlternator RCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21429786
|
[1] |
Alternator
|
28V 110A
|
| 1. |
|
|
|
|
| 2. |
3886356
|
[1] |
Bracket
|
|
| 3. |
975121
|
[4] |
Flange screw
|
|
| 4. |
984755
|
[1] |
Flange screw
|
|
| 5. |
21308514
|
[2] |
Insulating bushing
|
|
| 6. |
984826
|
[1] |
Flange screw
|
|
| 7. |
990952
|
[1] |
Flange lock nut
|
|
| 8. |
21328137
|
[2] |
Insulating bushing
|
|
| 9. |
990950
|
[1] |
Flange lock nut
|
|
| 10. |
3887787
|
[1] |
Bracket
|
|
| 11. |
984739
|
[1] |
Flange screw
|
|
| 12. |
968163
|
[2] |
Flange screw
|
|
| 13. |
975103
|
[1] |
Flange screw
|
|
| 14. |
21422765
|
[2] |
Belt tensioner
|
|
| 15. |
20464710
|
[1] |
V-ribbed belt
|
|
| 16. |
983715
|
[1] |
Hexagon nut
|
|
| 17. |
20576874
|
[1] |
Cap plug
|
|
| 18. |
946441
|
[2] |
Flange screw
|
|
| 19. |
21100789
|
[1] |
Wiring harness
|
|
| 20. |
983714
|
[1] |
Hexagon nut
|
|
| 21. |
947827
|
[2] |
Clamp
|
|
| 22. |
948211
|
[15] |
Cable tie
|
|
| 23. |
21335523
|
[1] |
Protecting screen
|
|
| 24. |
984752
|
[2] |
Flange screw
|
|
